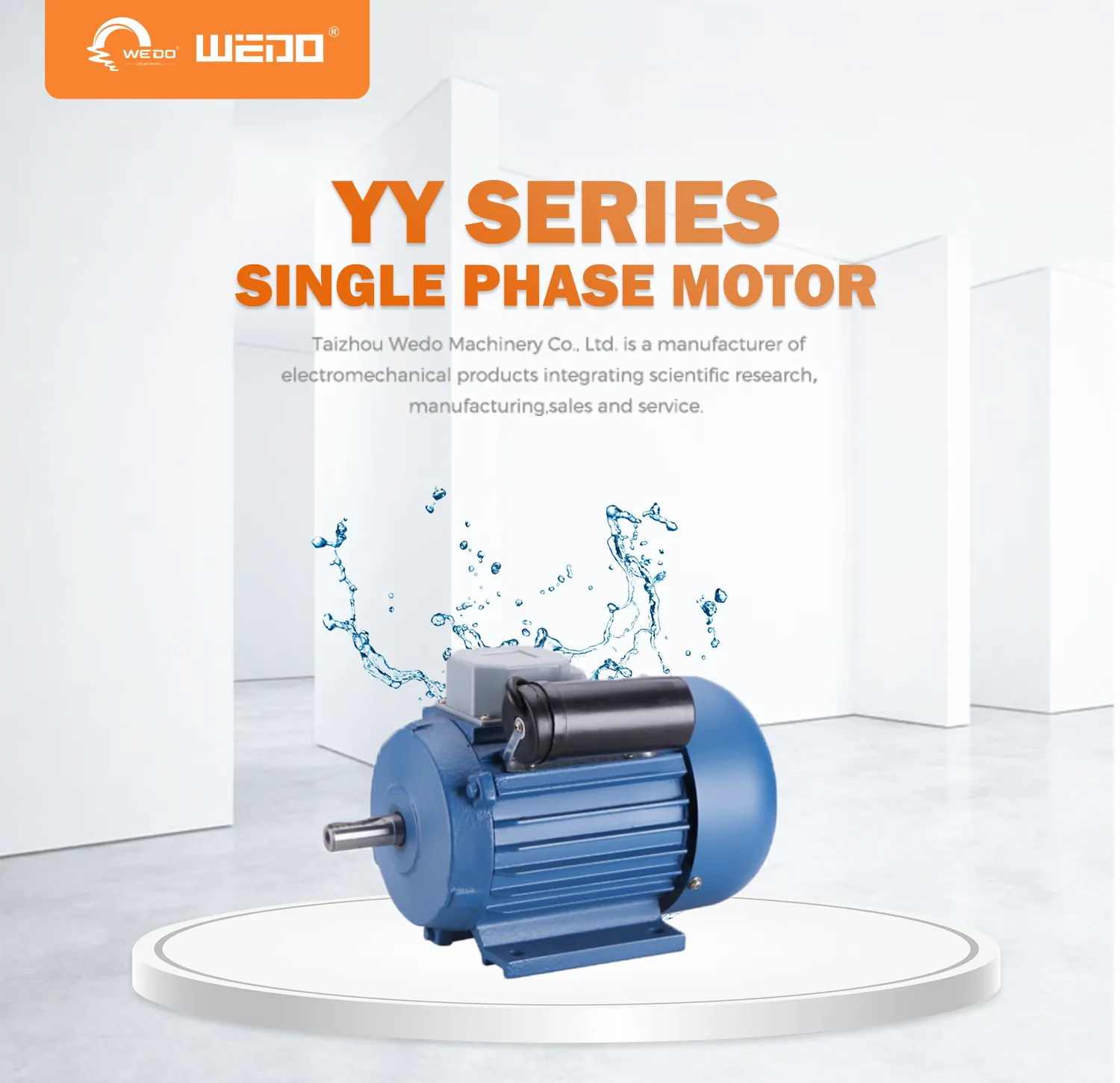

YY Series Single Phase Motor

YY

Delivery:

FOB

Supply Ability:

10000 / Year

Country of Origin:

Ningbo

Quantity:

Contact Now

add to cart

YY Series Fractional Horsepower Induction Motor

Products

The YY series motors according to national standards JB/T1012 requirements of design and manufacture.Have Excellent electrical performance, smallsize, small ibration, easy maintenance, etc..Widely For light-load starting smallmachinery and household power, such as washing machine, dehydrated machine and water pump mechanical as the driving force.

OPERATING CONDITIONS

Power Range:0.25-3.7kw

Base center height: 71-100mm

Rated voltage:220V

Rated frequency: 50Hz（or 60Hz）

Protection class: IP44、IP54

Insulation Class: B

Duty:S1(continuous)

Technical Data

Type	Output		Voltage (V)	Rated current (A)	Rated speed (r/min)	Eff(%)	Power factor	Locked rotor current	Locked rotor torque	Pull out torque
	Kw	Hp						Rated torque	Rated torque	Rated torque
YY711-2	0.37	0.5	220	2.73	2800	67.0	0.92	0.45	4.5	1.7
YY712-2	0.55	0.75	220	3.88	2800	70.0	0.92	0.45	4.5	1.7
YY801-2	0.75	1	220	5.15	2800	72.0	0.92	0.4	4.5	1.7
YY802-2	1.1	1.5	220	6.85	2800	75.0	0.95	0.4	4.5	1.7
YY90S-2	1.5	2	220	9.44	2800	76.0	0.95	0.35	5	1.7

YY90L-2	2.2	3	220	13.67	2800	77.0	0.95	0.35	5	1.7
YY100L-2	3.0	4	220	18.2	2900	79.0	0.95	1.7	/	1.7

YY711-4	0.25	0.33	220	2.02	1400	62.0	0.92	0.45	4.5	1.7
YY712-4	0.37	0.5	220	2.81	1400	65.0	0.92	0.45	4.5	1.7

YY801-4	0.55	0.75	220	3.88	1400	68.0	0.92	0.4	4.5	1.7
YY802-4	0.75	1	220	5.22	1400	71.0	0.92	0.4	4.5	1.7

YY90S-4	1.1	1.5	220	7.21	1400	73.0	0.95	0.35	5	1.7

YY90L-4	1.5	2	220	9.57	1400	76.0	0.95	0.35	5	1.7
YY100L1-4	2.2	3	220	13.9	1400	77.0	0.96	1.7	/	1.7
YY100L2-4	3.0	4	220	18.6	1400	78.0	0.96	1.7	/	1.7
