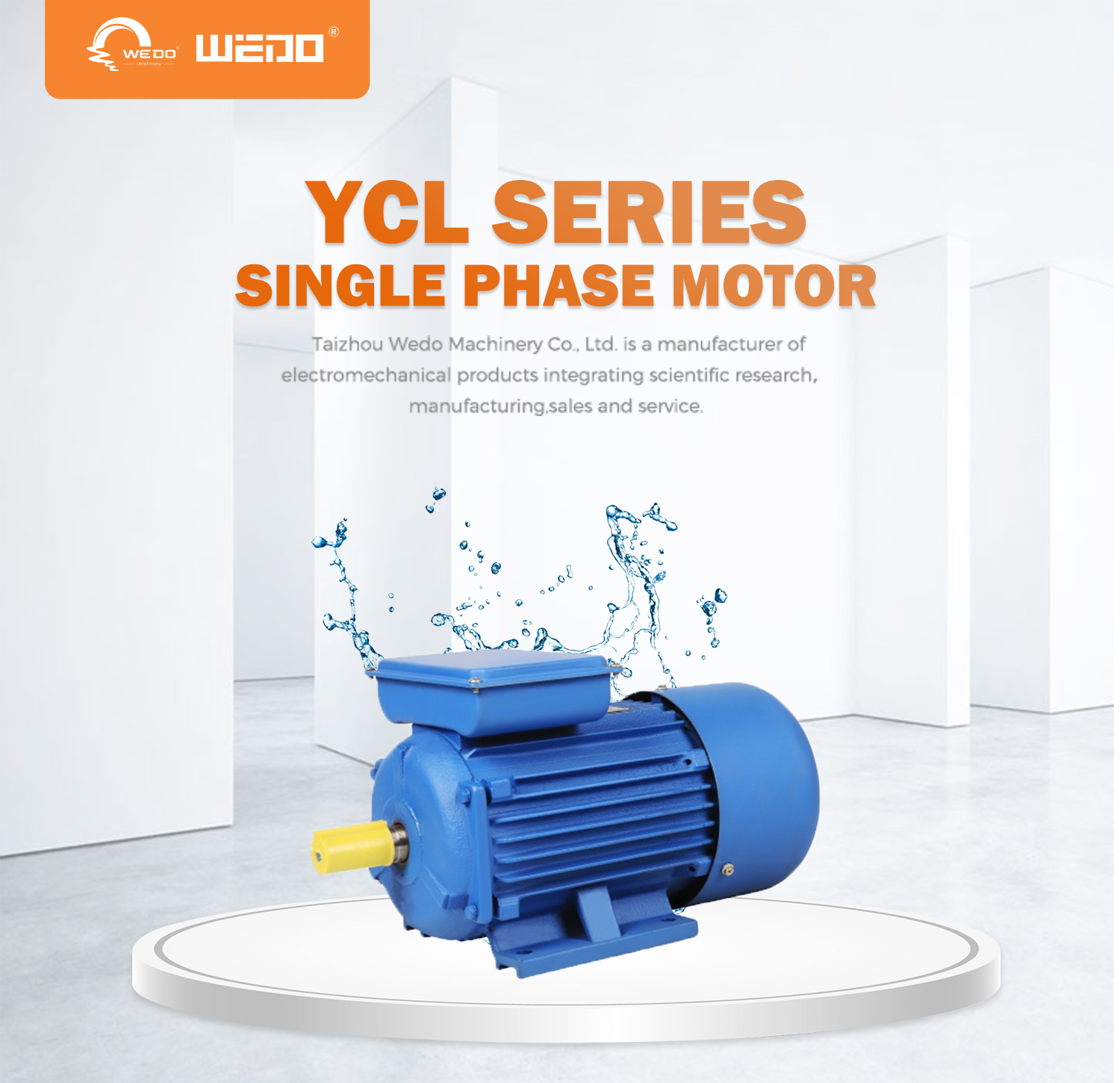

1.YC series motors are totally enclosed fan cooled(TEFC) heavy-duty single-phase induction motors.

2.The mounting dimension is fully comformed with IEC standard.

Ambient temperature:-15ºC< θ<40ºCAltitude:Not exceeding 1000m Rated

voltage:220V Rated

frequency:50HZ/60HZProtection

class:IP44/IP54Insulation

Class:ClassB/FCooling

method:ICO141

Duty:S1(continuous)

Technical Data

Type							Output				Voltage (V)				Rated speed (r/min)						Rated current (A)				Eff(%)							Power factor						Locked rotor current							Locked rotor torque			Pull out torque
							Kw		Hp																													Rated torque							Rated torque			Rated torque
YCL80A-2							0.37		0.5		220				2800						2.73				67							0.92						1.8							16.0			1.7
YCL80B-2							0.55		0.75		220				2800						3.88				70							0.92						1.8							21.0			1.7
YCL80C-2							0.75		1.1		220				2800						5.15				72							0.92						1.8							29.0			1.7
YCL905-2							1.1		1.5		220				2820						7.2				73.2							0.95						2.8							40			1.7
YCL90L-2							1.5		2		220				2820						8.9				76							0.97						2.8							55			1.7
YCL100L-2							2.2		3		220				2800						13.67				77							0.95						1.7							80.0			1.7
YCL112M-2							3		4		220				2900						18.2				79							0.95						1.7							110.0			1.7
YCL132S-2							3.7		5		220				2900						21.9				80							0.96						1.7							130.0			1.7
YCL132M1-2							5.5		7.5		220				2900						31				82							0.97						1.7							/			1.7
YCL132M2-2							7.5		10		220				2900						43				84							0.97						1.7							/			1.7
YCL80A-4							0.25		0.33		220				1400						2.02				62							0.92						1.8							12.0			1.7
YCL80B-4							0.37		0.5		220				1400						2.81				65							0.92						1.8							16.0			1.7
YCL80C-4							0.55		0.75		220				1400						3.88				68							0.92						1.8							21.0			1.7
YCL905-4							0.75		1		220				1400						5.22				71							0.92						1.8							29.0			1.7
YCL90L-4							1.1		1.5		220				1400						7.21				73							0.95						1.7							40.0			1.7
YCL100L-4							1.5		2		220				1400						9.57				76							0.95						1.7							55.0			1.7
YC112M-4							2.2		3		220				1400						13.9				77							0.95						1.7							80.0			1.7
YC1325A-4							3		4		220				1400						18.6				78							0.95						1.7							110.0			1.7
YC1325B-4							3.7		5		220				1430						23				79							0.95						1.7							140.0			1.7
YCL132M1-4							5.5		7.5		220				1450						32				81							0.96						1.7							/			1.7
YCL132M2-4							7.5		10		220				1460						45				83							0.96						1.7							/			1.7
