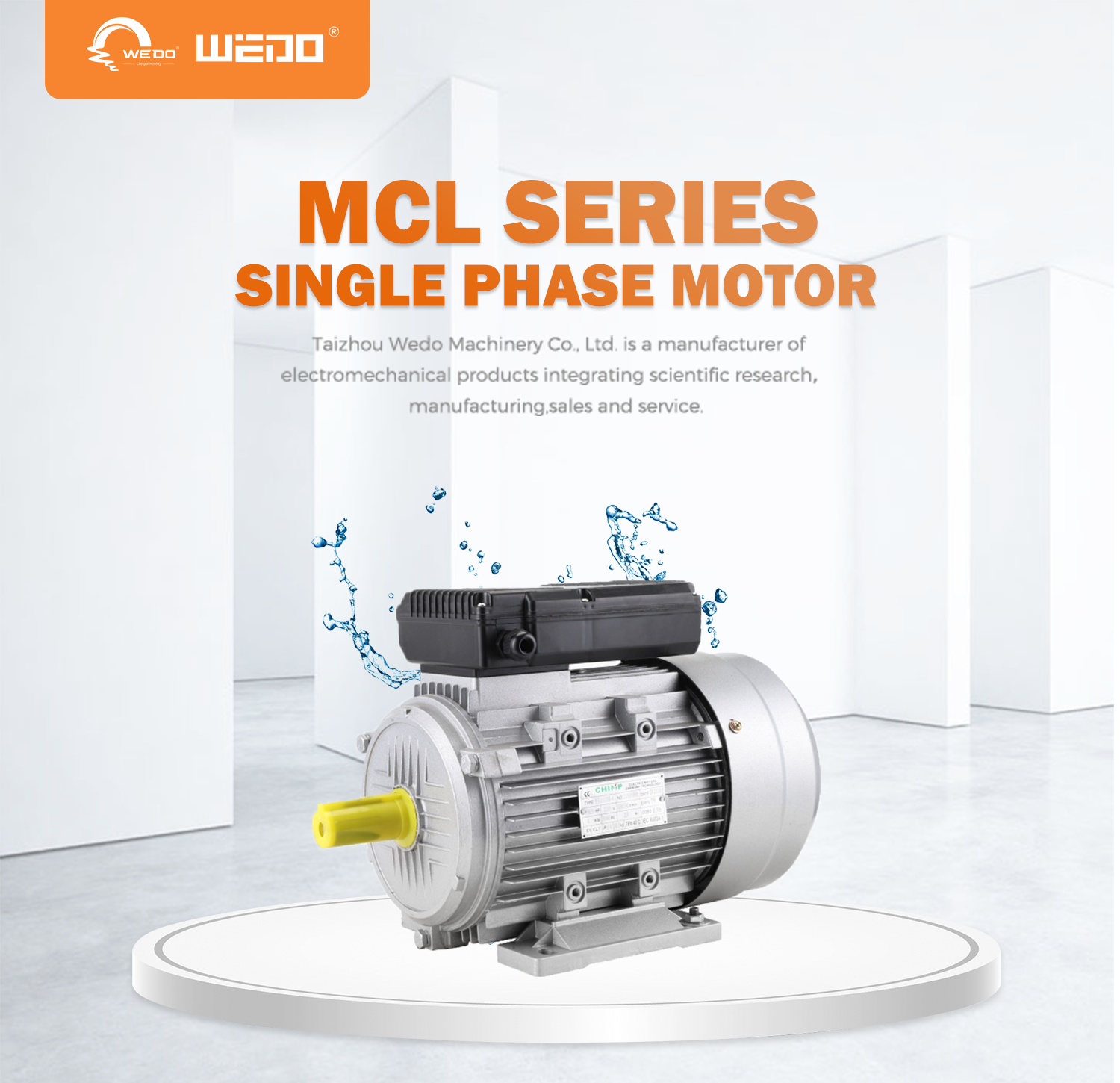

MCL Series Single-Phase Motor

MCL

Delivery:

FOB

Supply Ability:

10000 / Year

Country of Origin:

Ningbo

Quantity:

Contact Now

add to cart

MCL Series Aluminum Housing Single-Phase Capacitor-Started Induction Induction Motor

Products

MY series single-phase asynchronous electric aluminum capacitors start using the latest design from high quality material relevant IEC standards developed from has a good performance, reliable operation, safety, aesthetic appearance, Easy maintenance, noise, vibration, light weight, simple structure, a series of advantages.MYseries motors are suitable for air compressors, pumps, refrigeration, medical instruments, equipment and other needs fully loaded starter machine.

OPERATING CONDITIONS

Ambient temperature:-15ºC< θ<40ºC

Altitude:Not exceeding 1000m Rated

Rated voltage:220V、100V-240V

Protection class: IP44、IP54

Insulation Class:B、F、H

method:ICO141

Duty:S1(continuous)

Technical Data

Type	Output		Voltage (V)	Rated speed (r/min)	Rated current (A)	Eff(%)	Power factor	Locked rotor current	Locked rotor torque	Pull out torque
	Kw	Hp						Rated torque	Rated torque	Rated torque
MCL80A-2	0.37	0.5	220	2800	2.73	67	67	1.8	16.0	1.7
MCL80B-2	0.55	0.75	220	2800	3.88	70	70	1.8	21.0	1.7
MCL80C-2	0.75	1	220	2800	5.15	72	72	1.8	29.0	1.7
MCL90S-2	1.1	1.5	220	2820	7.2	73.2	73.2	2.8	40	1.7
MCL90L-2	1.5	2	220	2820	8.9	76	76	2.8	55	1.7
MCL100L-2	2.2	3	220	2800	13.67	77	77	1.7	80.0	1.7
MCL112M-2	3	4	220	2900	18.2	79	79	1.7	110.0	1.7
MCL132S-2	3.7	5	220	2900	21.9	80	80	1.7	130.0	1.7
MCL325-2	5.5	7.5	220	2900	31	82	82	1.7	/	1.7
MCL32M-2	7.5	10	220	2900	43	84	84	1.7	/	1.7
MCL80A-4	0.25	0.33	220	1400	2.02	62	62	1.8	12.0	1.7
MCL80B-4	0.37	0.5	220	1400	2.81	65	65	1.8	16.0	1.7
MCL80C-4	0.55	0.75	220	1400	3.88	68	68	1.8	21.0	1.7
MCL90S-4	0.75	1	220	1400	5.22	71	71	1.8	29.0	1.7
MCL90L-4	1.1	1.5	220	1400	7.21	73	73	1.7	40.0	1.7
MCL100L-4	1.5	2	220	1400	9.57	76	76	1.7	55.0	1.7
MCL112M-4	2.2	3	220	1400	13.9	77	77	1.7	80.0	1.7
MCL132SA-4	3	4	220	1400	18.6	78	78	1.7	110.0	1.7
MCL132SB-4	3.7	5	220	1430	23	79	79	1.7	140.0	1.7
MCL132M1-4	5.5	7.5	220	1450	32	81	81	1.7	/	1.7
MCL132M2-4	7.5	10	220	1460	45	83	83	1.7	/	1.7
