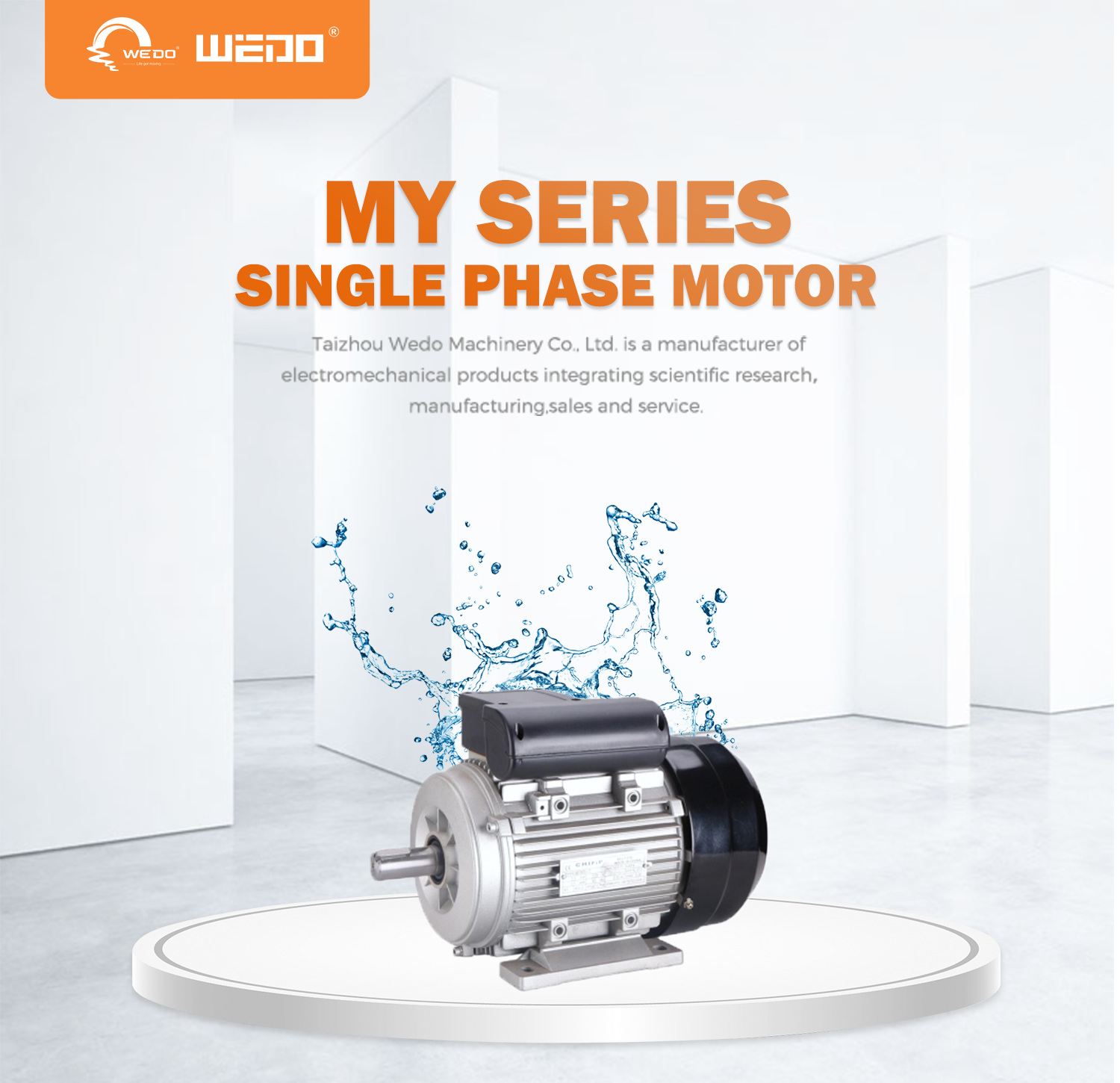

MY Series Single-Phase Motor

MY

Delivery:

FOB

Supply Ability:

10000 / Year

Country of Origin:

Ningbo

Quantity:

Contact Now

add to cart

MY Series Aluminum Housing Single-Phase Capacitor-Started Induction Induction Motor

Products

MY series single-phase asynchronous electric aluminum capacitors start using the latest design from high quality material relevant IEC standards developed from has a good performance, reliable operation, safety, aesthetic appearance, Easy maintenance, noise, vibration, light weight, simple structure,a series of advantages.MYseries motors are suitable for air compressors,pumps, refrigeration, medical instruments, equipment and other needs fully loaded starter machine.

OPERATING CONDITIONS

Ambient temperature:-15ºC< θ<40ºC

Altitude:Not exceeding 1000m Rated

Rated voltage:220V、100V-240V

Protection class: IP55、IP54

Insulation Class:B、F、H

method:ICO141

Duty:S1(continuous)

Technical Data

Type	Output		Voltage (V)	Rated current (A)	Rated speed (r/min)	Eff(%)	Power factor	Locked rotor current	Locked rotor torque	Pull out torque
	Kw	Hp						Rated torque	Rated torque	Rated torque
MY561-2	0.09	0.12	220	0.77	2800	58	0.92	0.55	4.5	1.7
MY562-2	0.12	0.18	220	0.96	2800	62	0.92	0.55	4.5	1.7
MY631-2	0.18	0.25	220	1.48	2800	66	0.92	0.5	4.5	1.7
MY632-2	0.25	0.33	220	1.96	2800	67	0.92	0.5	4.5	1.7
MY711-2	0.37	0.5	220	2.73	2800	67	0.92	0.45	4.5	1.7
MY712-2	0.55	0.75	220	3.88	2800	70	0.92	0.45	4.5	1.7
MY801-2	0.75	1	220	5.15	2800	72	0.92	0. 45	4.5	1.7
MY802-2	1.1	1.5	220	6.85	2800	75	0.95	0.4	4.5	1.7
MY90S-2	1.5	2	220	9.44	2800	76	0.95	0.35	5	1.7
MY90L-2	2.2	3	220	13.67	2800	77	0.95	0.35	5	1.7
MY100L-2	3.0	4	220	18.2	2900	79	0.95	1.7	/	1.7
MY561-4	0.06	0.08	220	0.57	1400	53	0.9	0.55	4.5	1.7
MY562-4	0.09	0.12	220	0.81	1400	56	0.9	0.55	4.5	1.7
MY631-4	0.12	0.18	220	1.1	1400	60	0.9	0.5	4.5	1.7
MY632-4	0.18	0.25	220	1.62	1400	62	0.9	0.5	4.5	1.7
MY711-4	0.25	0.33	220	2.02	1400	62	0.92	0.45	4.5	1.7
MY712-4	0.37	0.5	220	2.81	1400	65	0.92	0.45	4.5	1.7
MY801-4	0.55	0.75	220	3.88	1400	68	0.92	0.4	4.5	1.7
MY802-4	0.75	1	220	5.22	1400	71	0.92	0.4	4.5	1.7
MY905-4	1.1	1.5	220	7.21	1400	73	0.95	0.35	5	1.7
MY90L-4	1.5	2	220	9.57	1400	76	0.95	0.35	5	1.7
MY100L1-4	2.2	3	220	13.9	1400	77	0.95	1.7	/	1.7
MY100L2-4	3.0	4	220	18.6	1400	78	0.95	1.7	7	1.7
