JY Series Single Phase Induction Motor

Products

JY series single-phase capacitor start induction motor is suitable for any where a larger starting and starting current to be limited are required, and is used as driving motor of air compressors, refrigerators,medical apparatus and other small machines in which fukk-load srarting is demand. These series are of totally enclosed fan-cooled and having three frame sizes,09,1,and 2. The franes are made of cast iron or cast aluminum according to the requests.

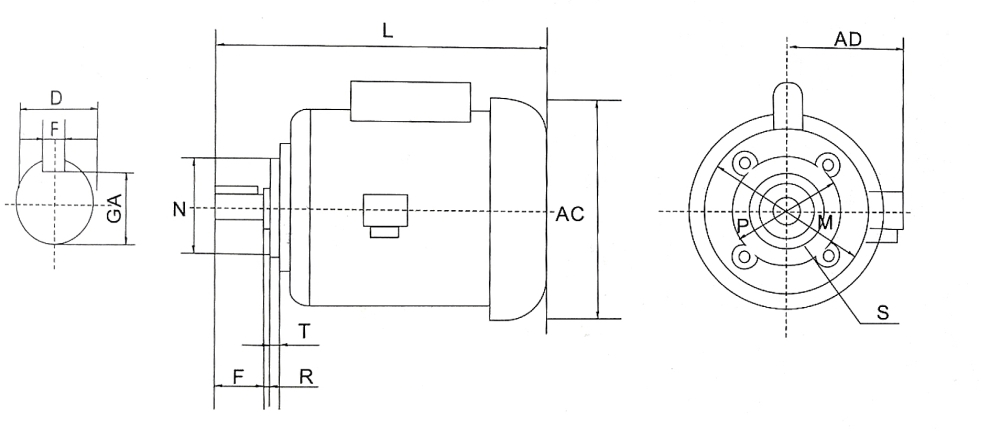

IMB14

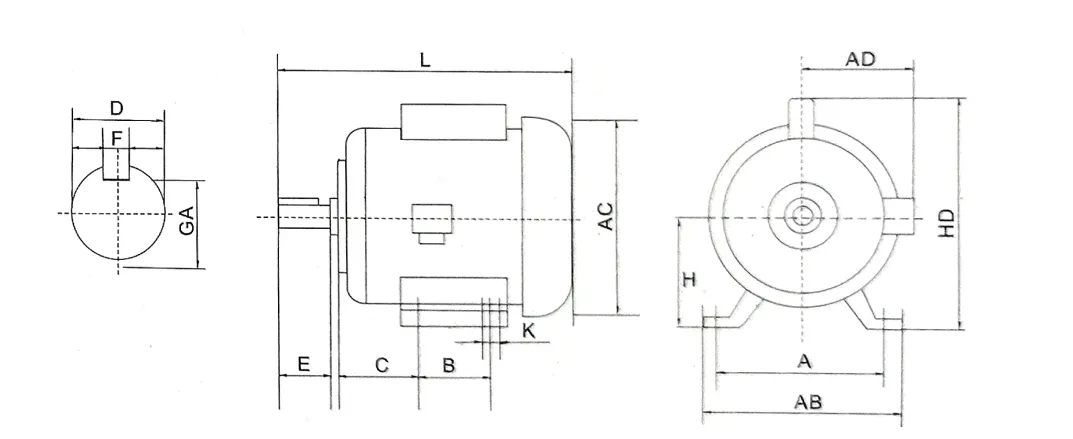

IMB3

Technical Data

Type	Output		Rated current （A）	Voltage (V)	Speed(r/min)	Power factor	Eff(%)	Pull out torque	Locked rotor current

	Kw	Hp						Rated torque	Rated torque
JY2A-2	1.5	1.1	9.15	220	2850	0.77	71	1.8-2	2-3.5

JY2B-2	1	0.75	6.49	220	2850	0.75	70	1.8-2	2-3.5

JY2A-4	1	0.75	7.27	220	1400	0.68	69	1.8-2	2-3.5

JY2B-4	0.75	0.55	5.49	220	1400	0.68	67	1.8-2	2-3.5
JY1A-2	0.75	0.55	5.26	220	2800	0.72	66	1.8-2	2-3.5

JY1B-2	0.5	0.37	3.54	220	2800	0.72	66	1.8-2	2-3.5

JY1A-4	0.5	0.37	4.24	220	1400	0.62	64	1.8-2	2-3.5

JY1B-4	0.33	0.25	3.05	220	1400	0.62	60	1.8-2	2-3.5

JY09A-2	0.33	0.25	2.51	220	2800	0.72	63	1.8-2	2-3.5

JY90B-2	0.25	0.18	1.89	220	2800	0.72	60	1.8-2	2-3.5

JY90A-4	0.25	0.18	2.36	220	1400	0.72	56	1.8-2	2-3.5
