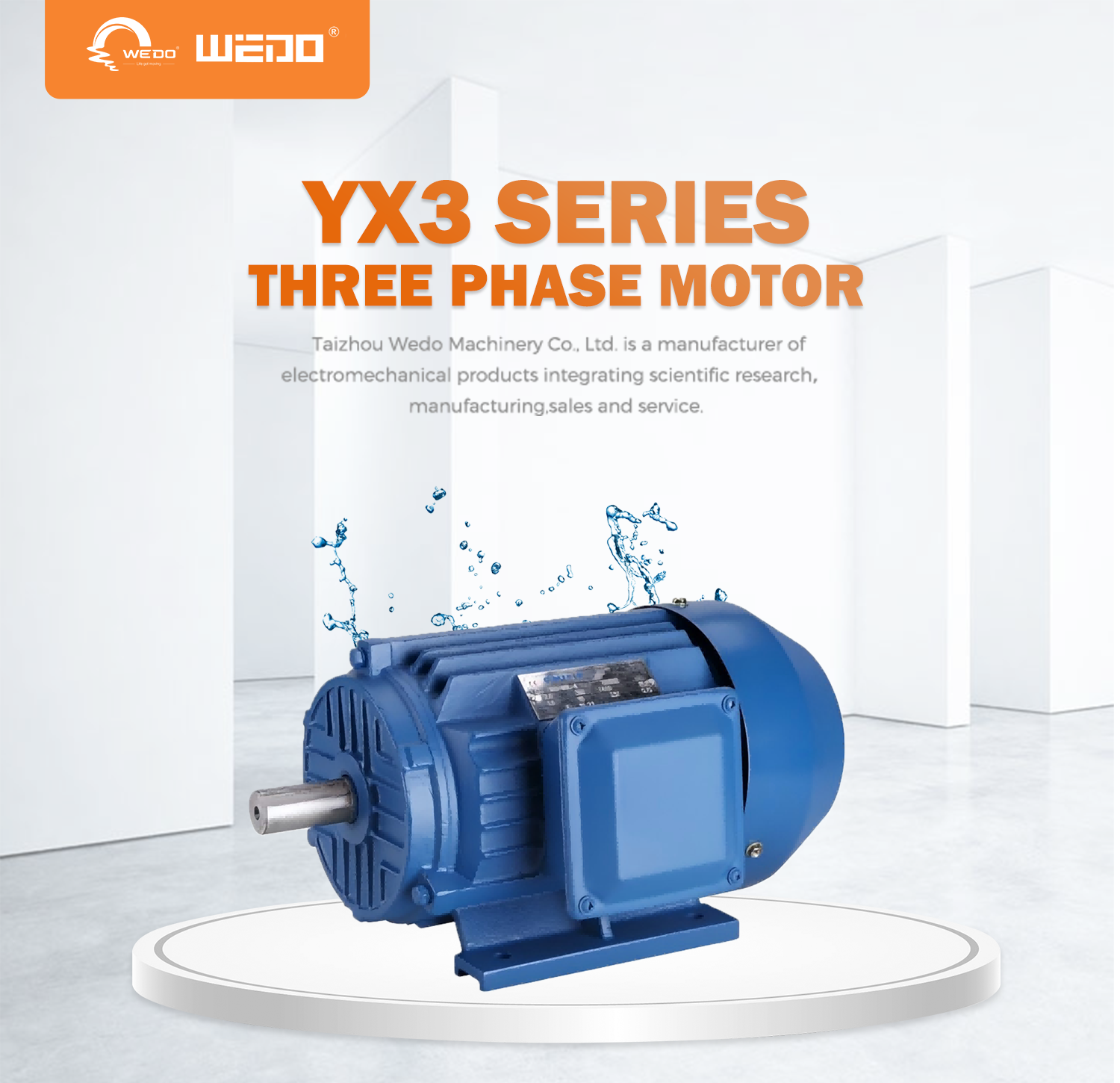

YX3 Series Three Phase Motor

The YX3series high effciency standardthreephoes induction motorsee totalyerskosed fan cooed squirrelcage motors that are
manufacturad withnew materil nd tech nclogy.

I isanwgenerationmotor and asve energy.YX3 senies motor center heigh:H80H0SS,Output 0.55KW.
ple2,4.6,8.Degree of protection:DP55,coolirg method IC411Mounting dmersions confirm to IEC sanded,rated voltage:3BONrated frequengy:50Hz,Ambient temerature:40 mu,Alitude:1000mDuty:cotinuous(S1).

YX3 senes high efficeney three phaes induction motors have somenotableadvantages such as high effciency good starting performancekow noise,impoved structure,improved cocling capbilities.

Thisseries motors are three phase induction motors which be used forgeneral motors and can be used to dnive all inds of general purposemachines such as compressors,ventilatos pumps,etr.oter uses suchs petrolchmical medics,chemical industries and mining.

For specialequiremertplease contat our sales departmert.
YX3 senies motors ae qqual withY²sernes three phase inducticnmotors indimension.

                                                                Y2/YX3/YE3 160-355                                               Y2/YX3/YE3 160-400

     Y2/YX3/YE3 60-132

                                                                                         Y2/YX3/YE3 160-200                                          Y2/YX3/YE3 225-355

                                                                              Y2/YX3/YE3 160-355

 Y2/YX3/YE3 160-400                                                       Y2/YX3/YE3 160-400

Ambient temperature: -15ºC < Θ < 40ºC
Altitude: not exceeding 1000m
Rated voltage: 380V
Rated frequency: 50HZ,60HZ
Protection class: IP55
Insulation class: F,H
Cooling method: ICO141
Duty:S1 (continuous)
Connection: Star-connection for up to 3kw, delta-connection for 4kw and above.

Technical Data



MODEL	Output(kw）	Rated speed(r/min)	Rated current(A)	Eff(%)	Power factor(cosφ)	Locked rotor current Rated torque	Locked rotor torque Rated torque	Pull out torque Rated torque
Synchronous Speed 3000r/m(2pole)
YX3-80M1-2	0.75	2875	1.77	77.5	0.83	6.8	2.3	2.3
YX3-80M2-2	1.1	2875	2.50	82.8	0.83	7.3	2.3	2.3
YX3-90S-2	1.5	2890	3.32	84.1	0.84	7.6	2.3	2.3
YX3-90L-2	2.2	2890	4.72	85.6	0.85	7.8	2.3	2.3
YX3-100L-2	3	2890	6.17	86.7	0..87	8.1	2.3	2.3
YX3-112M-2	4	2900	8.04	87.6	0.88	8.3	2.3	2.3
YX3-132S1-2	5.5	2910	11.2	88.6	0.88	8.0	2.2	2.3
YX3-132S2-2	7.5	2910	14.6	89.5	0.89	7.8	2.2	2.3
YX3-160M1-2	11	2930	21.0	90.5	0.89	7.9	2.2	2.3
YX3-160M2-2	15	2930	28.4	91.3	0.89	8.0	2.2	2.3
YX3-160L-2	18.5	2930	34.7	91.8	0.89	8.1	2.2	2.3
YX3-180M-2	22	2940	41.6	92.2	0.89	8.2	2.2	2.3
YX3-200L1-2	30	2950	56.2	92.9	0.89	7.5	2.2	2.3
YX3-200L2-2	37	2950	68.2	93.3	0.89	7.5	2.2	2.3
YX3-225M-2	45	2970	82.5	93.7	0.89	7.6	2.2	2.3
YX3-250M-2	55	2970	99.5	94.0	0.89	7.6	2.2	2.3
YX3-280S-2	75	2970	135	94.6	0.89	6.9	2.0	2.3
YX3-280M-2	90	2970	160	95.0	0.90	7.0	2.0	2.3
YX3-315S-2	1100	2980	194	95.0	0.90	7.1	2.0	2.2
Synchronous Speed 1500r/m(4pole)
YX3-80M1-4	0.55	1400	1.57	80.7	0.75	6.3	2.3	2.3
YX3-80M2-4	0.75	1400	1.88	82.3	0.75	6.5	2.3	2.3
YX3-90S-4	1.1	1410	2.66	83.8	0.75	6.6	2.3	2.3
YX3-90L-4	1.5	1410	3.57	85.0	0.75	6.9	2.3	2.3
YX3-100L1-4	2.2	1440	4.88	86.4	0.81	7.5	2.3	2.3
YX3-100L2-4	3	1440	6.05	87.4	0.82	7.6	2.3	2.3
YX3-112M-4	4	1445	8.55	88.3	0.82	7.7	2.3	2.3
YX3-132S-4	5.5	1445	11.5	89.2	0.82	7.5	2.0	2.3
YX3-132M-4	7.5	1445	15.3	90.1	0.83	7.4	2.0	2.3
YX3-160M-4	11	1460	22.1	91.0	0.85	7.5	2.2	2.3
YX3-160L-4	15	1460	29.6	91.8	0.86	7.5	2.2	2.3
YX3-180M-4	18.5	1470	35.8	92.2	0.86	7.8	2.2	2.3
YX3-180L-4	22	1470	42	92.6	0.86	7.8	2.2	2.3
YX3-200L-4	30	1470	57.3	93.2	0.86	7.2	2.2	2.3
YX3-225S-4	37	1480	69.7	93.6	0.86	7.3	2.2	2.3
YX3-225M-4	45	1480	84.3	93.9	0.86	7.4	2.2	2.3
YX3-250M-4	55	1480	1.3	94.2	0.86	7.4	2.2	2.3
YX3-280S-4	75	1480	139	94.7	0.88	6.7	2.2	2.3
YX3-280M-4	90	1480	167	95.0	0.88	6.9	2.2	2.3
YX3-315S-4	110	1490	201	95.4	0.88	6.9	2.2	2.2
Synchronous Speed 1000r/m(6pole)
YX3-90S-6	0.75	920	2.08	77.7	0.72	5.8	2.1	2.1
YX3-90L-6	1.1	920	2.97	79.9	0.73	5.9	2.1	2.1
YX3-100L-6	1.5	950	3.80	81.5	0.74	6.0	2.1	2.1
YX3-112M-6	2.2	960	5.37	83.4	0.74	6.0	2.1	2.1
YX3-132S-6	3	965	7.19	84.9	0.74	6.2	2.0	2.1
YX3-132M1-6	4	965	9.43	86.1	0.74	6.8	2.0	2.1
YX3-132M2-6	5.5	965	12.6	87.4	0.75	7.1	2.0	2.1
YX3-160M-6	7.5	975	16.7	89.0	0.78	6.7	2.1	2.1
YX3-160L-6	11	975	24.1	90.0	0.79	6.9	2.1	2.1
YX3-180L-6	15	975	31.4	91.0	0.81	7.2	2.0	2.1
YX3-200L1-6	18.5	975	38.3	91.5	0.81	7.2	2.1	2.1
YX3-200L2-6	22	975	44.3	92.0	0.82	7.3	2.1	2.1
YX3-225M-6	30	985	59.2	92.5	0.81	7.1	2.0	2.1
YX3-250M-6	37	985	70.8	93.0	0.84	7.1	2.1	2.1
YX3-280S-6	45	985	85.8	93.5	0.86	7.2	2.1	2.0
YX3-280M-6	55	985	104	93.8	0.86	7.2	2.1	2.0
YX3-315S-6	75	990	141	94.2	0.85	6.7	2.0	2.0
YX3-315M-6	90	990	169	94.5	0.84	6.7	2.0	2.0
YX3-315L1-6	110	990	206	95.0	0.85	6.7	2.0	2.0
