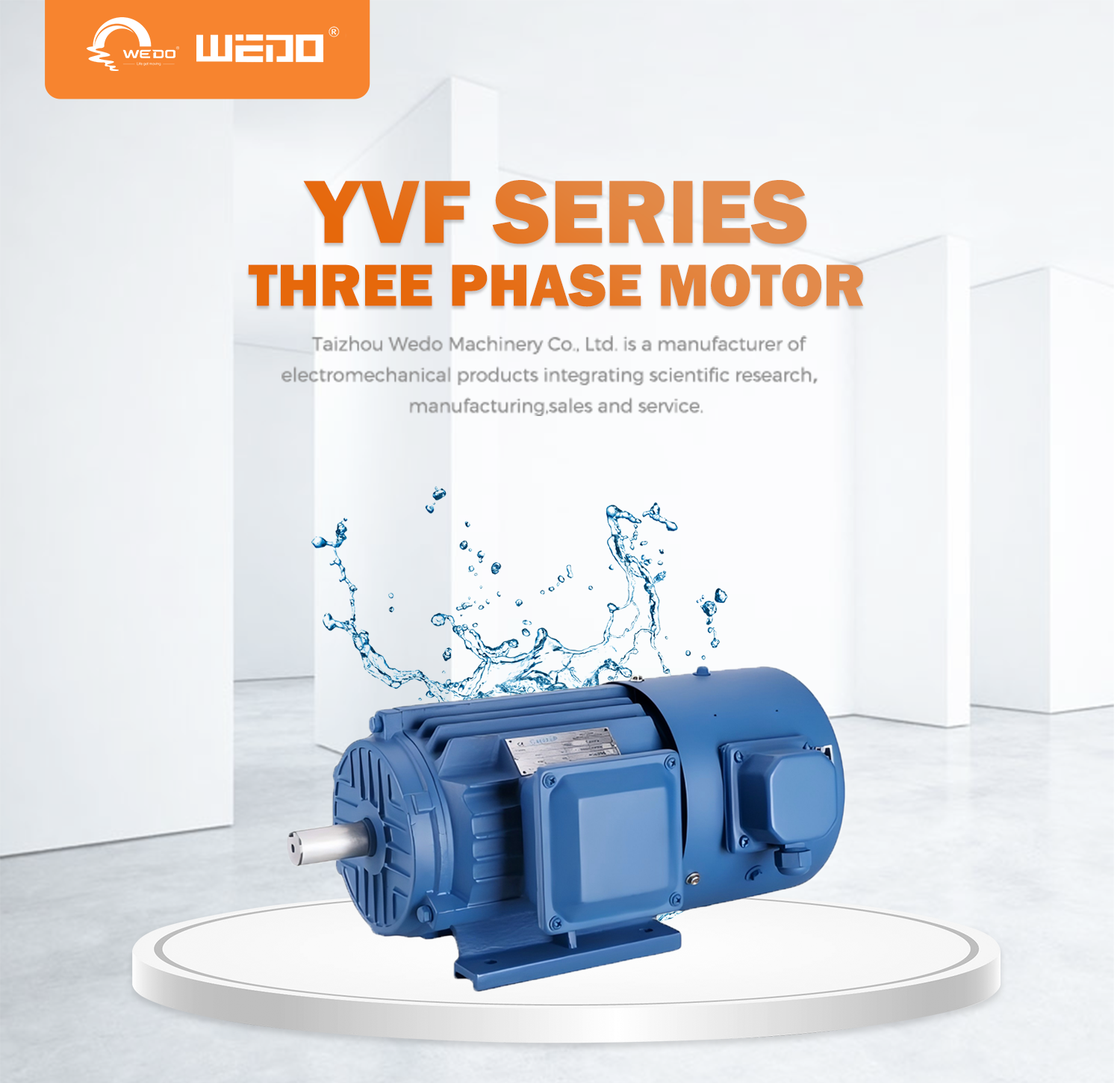

YVF Series Three Phase Motor

YVF

Quantity:

Contact Now

add to cart

YVF Series Three Phase Induction Motor

Adopted the advantages of the same type motors of industry advanced countries such as German and Japan YVF2 Series Motors are designed with computer assisatant technology, Itcan be coordinated with the asme typefrequency converter at home and abroad, So it has a good inter change ablity and commonality. In addition, it has used a squirel-cage construction for reliable operation and easy maintenance, Separately assembled with axialflow ventilator YVF2 series motors and guarantee its better cooling effect at different output, foot-mounting dimensions and central height are in corres-pondence with that of YVF2series motors. JMUS series motors and be widely applied for driven equipment in need of velocity modulation in light industry,textile, chemical, metallurguical and machine tool industries and are an ideal power source of velocity modulation. The output of this series motors ranges from 0.55kw to 315kw and the frame central height ranges fromH71-355.

Technical Data

Type	Output KW	Current (A)	Rated Torque N.m	Constant Torque Frequency Range Hz	Constant Output Frequency Range Hz
YVF2-80M1-4	0.55	1.57	3.8	5-50	5-100
YVF2-80M2-4	0.75	2.03	5.2

YVF2-90S-4	1.1	2.89	7.5


YVF2-90L-4	1.5	3.70	10
YVF2-100L1-4	2.2	5.16	14.9
YVF2-100L2-4	3	6.78	20

YVF2-112M-4	4	8.80	26.5

YVF2-132S-4	5.5	11.7	36.5
YVF2-132M-4	7.5	15.6	50

YVF2-160M-4	11	22.3	72

YVF2-160L-4	15	30.1	98

YVF2-180M-4	18.5	36.5	120
YVF2-180L-4	22	43.2	143

YVF2-200L-4	30	57.6	195

YVF2-2255-4	37	69.9	240

YVF2-225M-4	45	84.7	291
YVF2-250M-4	55	103	355	3-50

YVF2-280S-4	75	140	484

YVF2-280M-4	90	167	580
YVF2-315S-4	110	201	710

YVF2-315M-4	132	227.6	852

YVF2-315L1-4	160	274.2	1032

YVF2-315L2-4	200	341.6	1290
