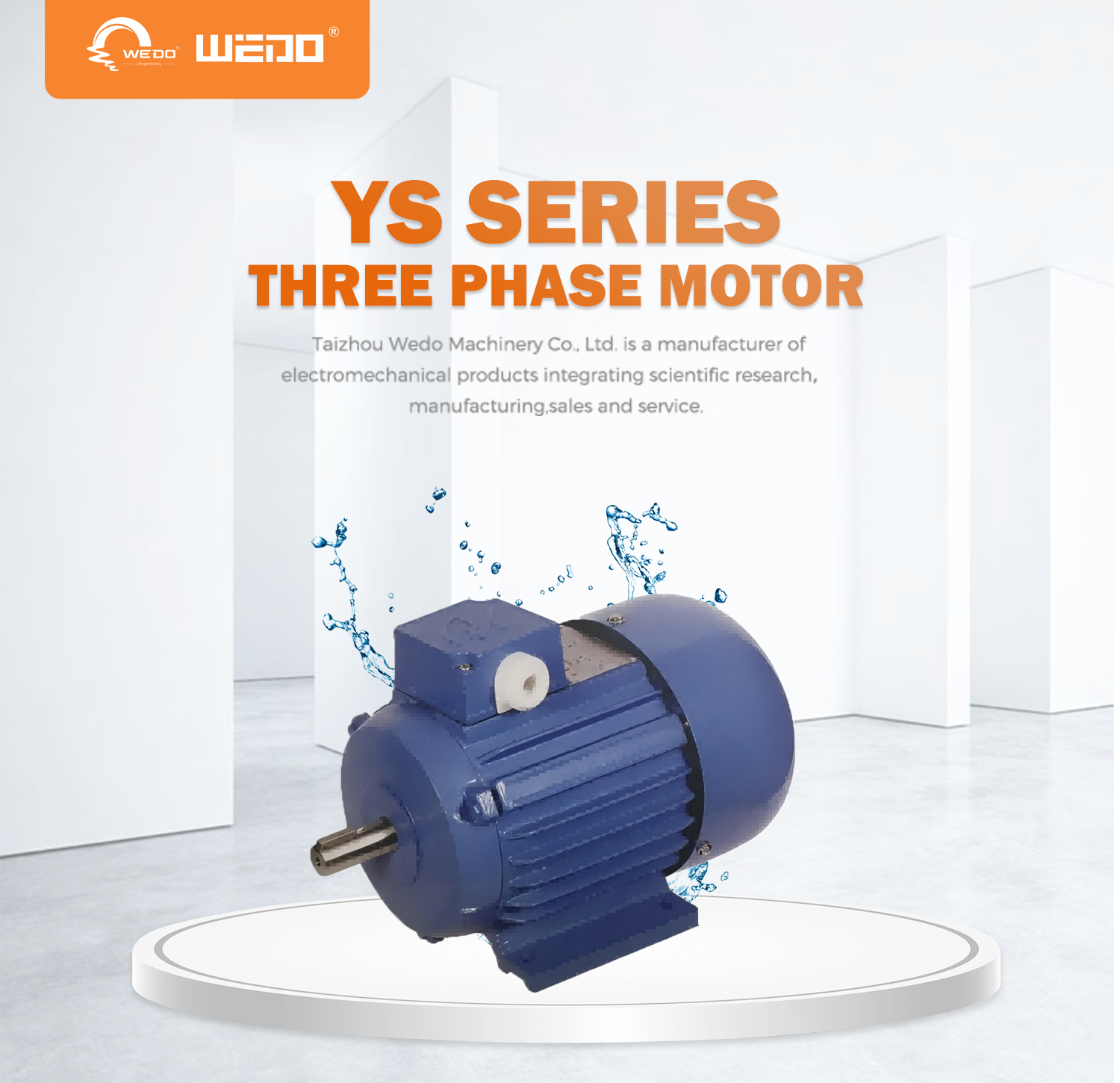

YS Series Three-Phase Induction Motor

YS seires motor belongs to low power motor scope,which is designed and manufactured according to relevant national atandards and industry standards in combination with internation standards, and has many strong points with efficient,energysaving, low noise, low vibration,high starting torque, long life, easy maintenance etc.It' s extensively used on food machinery, textile machinery, fan,machine tool liquid supply etc.


Ambient temperature: -15ºC < Θ < 40ºC
Altitude: not exceeding 1000m
Rated voltage: 380V
Rated frequency: 50HZ,60HZ
Protection class: IP55
Insulation class: F,H
Cooling method: ICO141
Duty:S1 (continuous)
Connection: Star-connection for up to 3kw, delta-connection for 4kw and above.




Technical Data

MODEL
Output(kw）Rated speed(r/min)Rated current(A)Eff(%)Power factor(cosφ)
Locked rotor current
Rated torque
Locked rotor torque
Rated torque
Pull out torque
Rated torque
YS6312180 0.53 2800 69 0.75 2.2 ≤62.4
YS6322250 0.67 2800 72 0.78 2.2 ≤62.4
YS7112370 0.95 2800 73.5 0.80 2.2 ≤62.4
YS7122550 1.35 2800 75.5 0.82 2.2 ≤62.4
YS8012750 1.75 2800 76.5 0.85 2.2 ≤62.4
YS80221100 2.56 2800 76.5 0.85 2.2 ≤62.4
YS6314120 0.48 1400 60 0.83 2.3 ≤62.4
YS6324180 0.65 1400 64 0.60 2.3 ≤62.4
YS7114250 0.8 1400 67 0.68 2.3 ≤62.4
YS7124370 1.12 1400 69.5 0.72 2.3 ≤62.4
YS8014550 1.55 1400 73.5 0.73 2.3 ≤62.4
YS8024750 2.01 1400 75.5 0.75 2.3 ≤62.4
YS90S-41100 2.75 1400 78.0 0.78 2.3 ≤6.52.4
YS90L-41500 3.64 1400 79.0 0.79 2.3 ≤6.52.4
