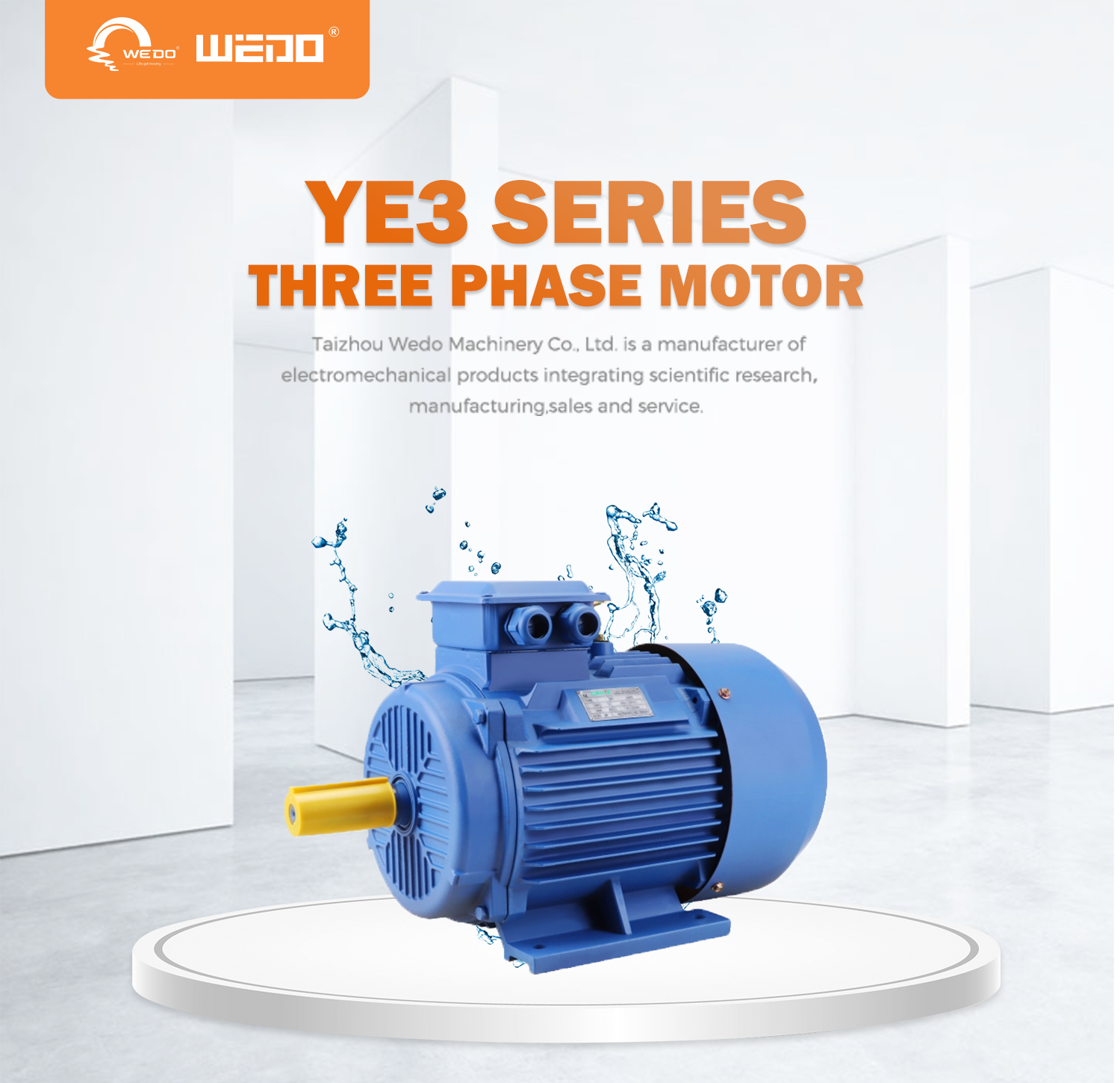

YE3 Series Three Phase Motor

YE3

Quantity:

Contact Now

add to cart

YE3 Series Ultar Efficient Energy-Saving Motor

Adopting the national uniform design,YE3 series premiumefficiency three-phase asynchronous induction motor, are conformity with ICE34-1and GB/T22722-2008 standards,also up to the

international advanced level 90's as substitute ofYseries induction motors, It possesses sophisticated features such as new structure,good appearance, slight vibration,low noise etc.

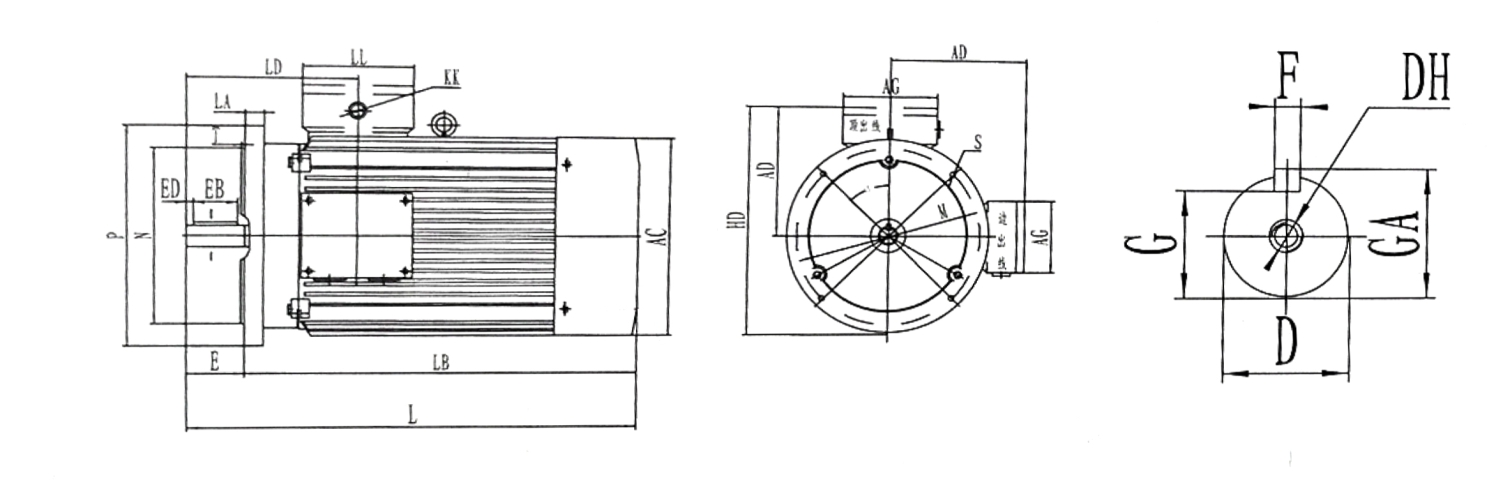

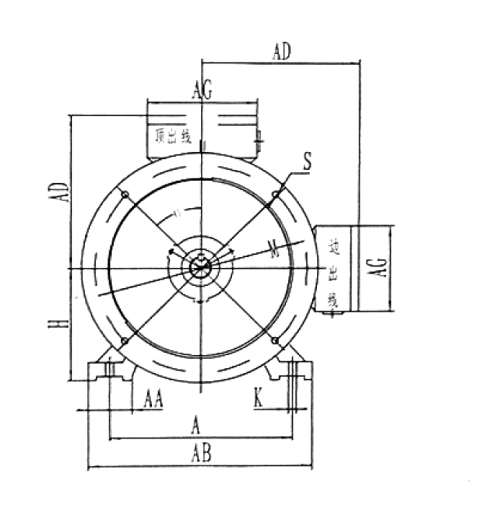

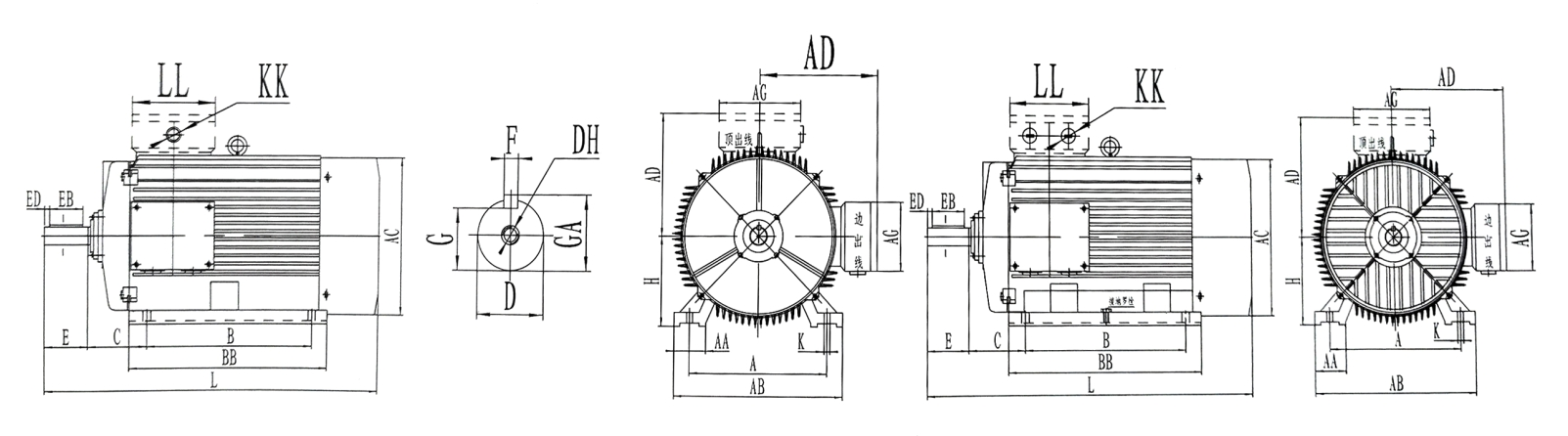

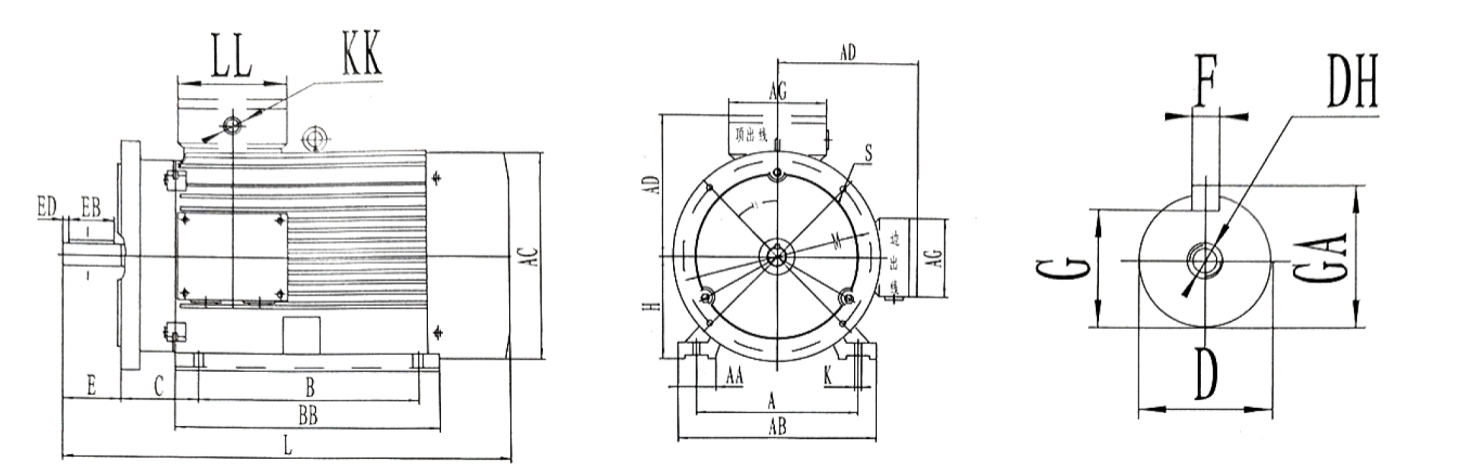

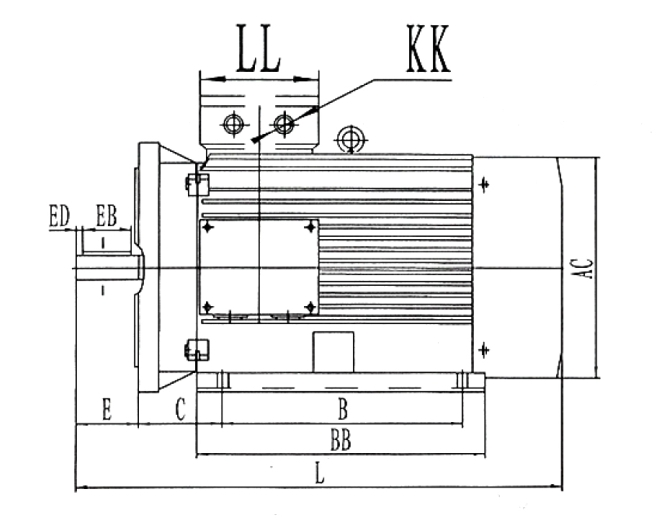

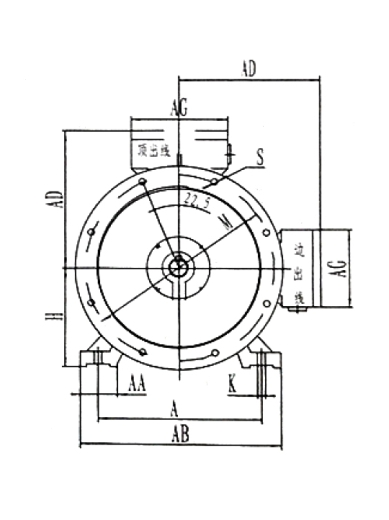

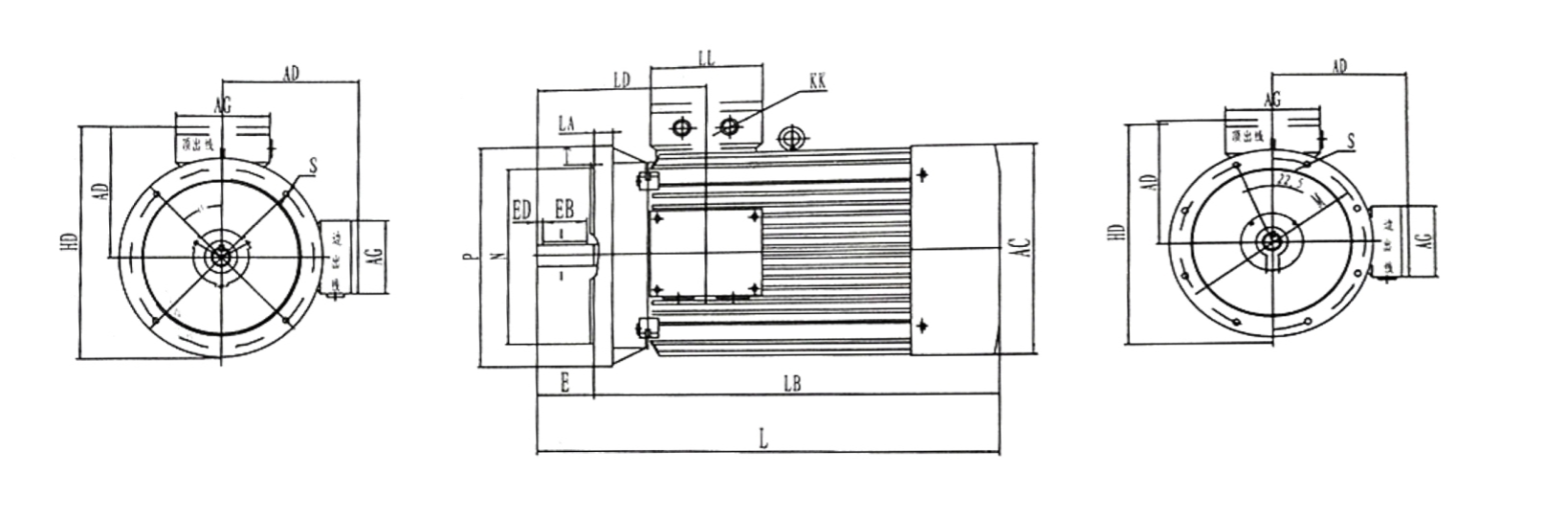

Y2/YX3/YE3 160-355 Y2/YX3/YE3 160-400

Y2/YX3/YE3 60-132

Y2/YX3/YE3 160-200 Y2/YX3/YE3 225-355

Y2/YX3/YE3 160-355

Y2/YX3/YE3 160-400 Y2/YX3/YE3 160-400

Ambient temperature: -15ºC < Θ < 40ºC
Altitude: not exceeding 1000m
Rated voltage: 380V or any voltage between 220-760V
Rated frequency: 50HZ,60HZ
Protection class: IP54/IP55
Insulation class: F,H
Cooling method: ICO141
Duty:S1 (continuous)
Connection: Star-connection for up to 3kw, delta-connection for 4kw and above.

Technical Data

MODEL	Output(kw）	Rated speed(r/min)	Rated current(A)	Eff(%)	Power factor(cosφ)	Locked rotor current Rated torque	Locked rotor torque Rated torque	Pull out torque Rated torque
Synchronous Speed 3000r/m(2pole)
YE3-80M1-2	0.75	2880	1.7	80.7	0.83	2.3	6.8	2.3
YE3-80M2-2	1.1	2880	2.43	82.7	0.83	2.3	7.3	2.3
YE3-905-2	1.5	2895	3.25	84.2	0.83	2.3	7.6	2.3
YE3-90L-2	2.2	2895	4.57	85.9	0.85	2.3	7.8	2.3
YE3-100L-2	3	2895	5.94	87.1	0..88	2.3	8.1	2.3
YE3-112M-2	4	2905	7.83	88.1	0.88	2.3	8.3	2.3
YE3-13251-2	5.5	2930	10.6	89.2	0.88	2.2	8.0	2.3
YE3-132S2-2	7.5	2930	14.4	90.1	0.88	2.2	7.8	2.3
YE3-160M1-2	11	2945	20.4	91.2	0.90	2.2	7.9	2.3
YE3-160M2-2	15	2945	27.2	91.9	0.91	2.2	8.0	2.3
YE3-160L-2	18.5	2950	34.1	92.4	0.89	2.2	8.1	2.3
YE3-180M-2	22	2955	40.1	92.7	0.90	2.2	8.2	2.3
YE3-200L1-2	30	2960	54.8	93.3	0.89	2.2	7.5	2.3
YE3-200L2-2	37	2960	65.9	93.7	0.91	2.2	7.5	2.3
YE3-225M-2	45	2965	82.5	94.0	0.88	2.2	7.6	2.3
YE3-250M-2	55	2970	99.6	94.3	0.89	2.0	7.6	2.3
YE3-280S-2	75	2975	134	94.7	0.90	2.0	6.9	2.3
YE3-280M-2	90	2975	162	95.0	0.89	2.0	7.0	2.2
YE3-315S-2	110	2978	195	95.2	0.90	2.0	7.1	2.2
YE3-315M-2	132	2978	233	95.4	0.90	2.0	7.1	2.2
YE3-315L1-2	160	2980	283	95.6	0.90	2.0	7.1	2.2
YE3-315L2-2	200	2980	349	95.8	0.91	2.0	7.1	2.2
YE3-355M-2	250	2980	431	95.8	0.92	2.0	7.1	2.2
YE3-355L-2	315	2980	543	95.8	0.92	2.0	7.1	2.2

Model	Output（kw）	Rated speed(r/min)	Rated current(A)	Eff（%）	Power factor(cosφ)	Locked rotor current Rated torque	Locked rotor torque Rated torque
								Pull out torque Rated torque
Synchronous Speed 3000r/m(2pole)
YE3-80M2-4	0.75	1420	1.86	82.5	0.74	2.3	6.3	2.3
YE3-905-4	1.1	1430	2.68	84.1	0.74	2.3	6.5	2.3
YE3-90L-4	1.5	1430	3.61	85.3	0.74	2.3	6.6	2.3
YE3-100L1-4	2.2	1445	4.93	86.7	0.78	2.3	6.9	2.3
YE3-100L2-4	3	1445	6.66	87.7	0.78	2.3	7.5	2.3
YE3-112M-4	4	1450	8.56	88.6	0.80	2.3	7.6	2.3
YE3-132S-4	5.5	1460	11.6	89.6	0.80	2.0	7.7	2.3
YE3-132M-4	7.5	1460	15.3	90.4	0.82	2.0	7.5	2.3
YE3-160M-4	11	1465	22.3	91.4	0.82	2.2	7.4	2.3
YE3-160L-4	15	1465	30.1	92.1	0.82	2.2	7.5	2.3
YE3-180M-4	18.5	1470	36.1	92.6	0.84	2.2	7.5	23
YE3-180L-4	22	1470	42.3	93.0	0.85	2.2	7.7	2.3
YE3-200L-4	30	1475	56.5	93.6	0.86	2.2	7.8	2.3
YE3-2255-4	37	1485	69.5	93.9	0.86	2.2	7.2	2.3
YE3-225M-4	45	1485	83.2	94.2	0.87	2.2	7.3□	2.3
YE3-250M-4	55	1485	101	94.6	0.87	2.2	7.4	2.3
YE3-280S-4	75	1486	138	95.0	0.87	2.2	7.4	2.3
YE3-280M-4	90	1486	165	95.2	0.87	2.2	6.7	2.3
YE3-315S-4	110	1488	199	95.4	0.88	2.2	6.9	2.2
YE3-315M-4	132	1488	238	95.6	0.88	2.2	6.9	2.2
YE3-315L1-4	160	1488	288	95.8	0.88	2.2	6.9	2.2
YE3-315L2-4	200	1490	360	96.0	0.88	2.2	6.9	2.2
YE3-355M-4	250	1490	449	96.0	0.88	2.2	6.9	2.2
YE3-355L-4		1490	567	96.0	0.88	2.2	6.9	2.2
Synchronous Speed 1500r/m(4pole)
YE3-90S-6	0.75	935	2.36	78.9	0.61	2.1	5.8	2.1
YE3-90L-6	1.1	945	2.99	81.0	0.69	2.1	5.9	2.1
YE3-100L-6	1.5	949	4.00	82.5	0.69	2.1	6.0	2.1
YE3-112M-6	2.2	955	5.58	84.3	0.71	2.1	6.0	2.1
YE3-132S-6	3	968	7.48	85.6	0.71	2.0	6.2	2.1
YE3-132M1-6	4	968	9.85	86.8	0.71	2.0	6.8	2.1
YE3-132M2-6	5.5	968	12.6	88.0	0.75	2.0	7.1	2.1
YE3-160M-6	Z.5	970	16.6	89.1	0.77	2.1	6.7	2.1
YE3-160L-6	11	970	23.4	90.3	0.79	2.1	6.9	2.1
YE3-180L-6	15	978	30.8	91.2	0.81	2.0	7.2	2.1
YE3-200L1-6	18.5	980	37.8	91.7	0.81	2.1	7.2	2.1
YE3-200L2-6	22	980	43.6	92.2	0.83	2.1	7.3	2.1
YE3-225M-6	30	980	58.3	92.9	0.84	2.0	7.1	2.1
YE3-250M-6	37	985	71.7	93.3	0.84	2.1	7.1	2.1
YE3-280S-6	45	985	85.8	93.7	0.85	2.1	7.2	2.0
YE3-280M-6	55	985	104	94.1	0.85	2.1	7.2	2.0
YE3-315S-6	75	985	142	94.6	0.85	2.0	6.7	2.0
YE3-315M-6	90	988	169	94.9	0.85	2.0	6.7	2.0
YE3-315L1-6	110	988	204	95.1	0.86	2.0	6.7	2.0
YE3-315L2-6	132	988	244	95.4	0.86	2.0	6.7	2.0
YE3-355M1-6	160	990	296	95.6	0.86	2.0	6.7	2.0
YE3-355M2-6	200	990	360	95.8	0.88	2.0	6.7	2.0
YE3-355L-6	250	990	451	95.8	0.88	2.0	6.7	2.0
YE3-355L2-6	315	990	581	95.8	0.88	2.0	6.7	2.0
