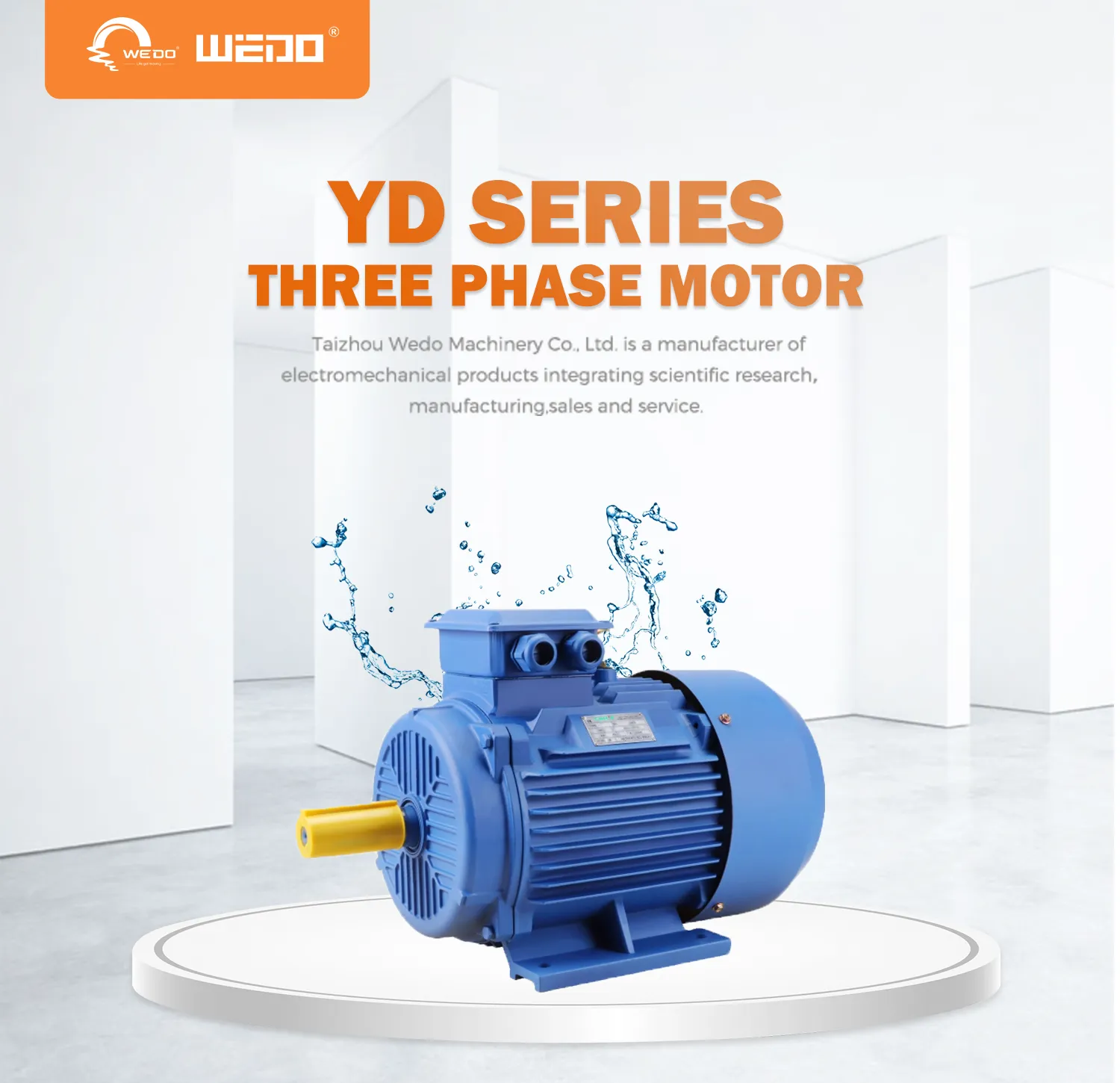

YD Series Three Phase Motor

YD

Quantity:

Contact Now

add to cart

YD Series Multi-Speed Three Phase Induction Motor

YD series pole-changing multi-speed three-phase motor of unified design,with excellent performance, beautiful appearance, better interoperability with similar foreign products the transsexuals advantages. Protection

class is IP44.The motor has a variable speed, three speed, four-speed three types, its speed can be stepwise transformation, Applies to machinery, mining, metallurgy, textile, printing and dyeing, chemical, agricultural and mechanical needsclassification variable speed equipment can also be simplified, or instead of mechanical transmission gearbox.

Technical Data

Type		Output(kw)	Speed(r/min)	Rated current(A)	Eff(%)	Power	Locked rotor current Full load current	Locked rotor torque Full load torque	Max.Torque Full load torque
YD80M1	4	0.45	1420	1.4	66	0.74	6.5	1.5	1.8
	2	0.55	2860	1.5	65	0.85	7	1.6	1.8
YD80M2	4	0.55	1420	1.7	68	0.74	6.5	1.5	1.8
	2	0.75	2860	2.0	66	0.85	7	1.6	1.8
YD90S	4	0.85	1430	2.3	74	0.77	6.5	1.5	1.8
	2	1.1	2850	2.8	73	0.84	7	1.6	1.8
YD90L	4	1.3	1430	3.3	76	0.78	6.5	1.5	1.8
	2	1.8	2850	4.3	74	0.84	7	1.6	1.8
YD100L1	4	2	1430	4.8	78	0.81	6.5	1.5	1.8
	2	2.4	2850	5.6	76	0.86	7	1.6	1.8
YD100L2	4	2.4	1430	5.6	79	0.83	6.5	1.5	1.8
	2	3	2850	6.7	77	0.89	7	1.6	1.8
YD112M	4	3.3	1450	7.4	81	0.83	6.5	1.5	1.8
	2	4	2860	8.6	80	0.88	7	1.6	1.8
YD132S	4	4.5	1450	9.8	83	0.84	6.5	1.5	1.8
	2	5.5	2860	11.9	79	0.88	7	1.6	1.8
YD132M	4	6.5	1450	13.8	84	0.85	6.5	1.5	1.8
	2	8	2880	17.1	80	0.89	7	1.6	1.8
YD160M	4	9	1460	18.5	87	0.85	6.5	1.5	1.8
	2	11	2920	22.9	82	0.89	7	1.6	1.8
YD160L	4	11	1460	22.3	87	0.86	6.5	1.5	1.8
	2	14	2920	28.8	82	0.90	7	1.6	1.8
YD180M	4	15	1470	29.4	89	0.87	6.5	1.5	1.8
	2	18.5	2940	36.7	85	0.90	7	1.6	1.8
YD180L	4	18.5	1470	35.9	89	0.88	6.5	1.5	1.8
	2	22	2940	42.7	86	0.91	7	1.6	1.8
YD200L	4	26	1470	49.9	89	0.89	6.5	1.4	1.8
	2	30	2950	58.3	85	0.92	7	1.4	1.8
YD225S	4	32	1480	60.7	90	0.89	6.5	1.4	1.8
	2	37	2960	71.7	86	0.92	7	1.4	1.8
YD225M	4	37	1480	69.4	91	0.89	6.5	1.4	1.8
	2	45	2960	86.4	87	0.92	7	1.4	1.8
YD250M	4	45	1480	84.4	91	0.89	6.5	1.4	1.8
	2	55	2960	103.2	88	0.92	7	1.4	1.8
YD280S	4	60	1480	111.3	91	0.90	6.5	1.4	1.8
	2	72	2970	135.1	88	0.92	7	1.4	1.8
YD280M	4	72	1480	133.6	91	0.90	6.5	1.4	1.8
	2	82	2970	152.2	88	0.93	7	1.4	1.8
YD90S	6	0.65	920	2.2	64	0.70	6	1.4	1.8
	4	0.85	1420	2.3	70	0.79	6.5	1.3	1.8

Type		Output(kw)	Speed(r/min)	Rated current(A)	Eff(%)	Power factor	Locked rotor currrent Full load current	Locked rotor torque Full load torque
									Max.Torque Full load torque
YD90L	6	0.85	930	2.8	66	0.70	6	1.4	1.8
	4	1.1	1420	3.0	71	0.79	6.5	1.3	1.8
YD100L1	6	1.3	940	3.8	74	0.70	6	1.4	1.8
	4	1.8	1440	4.4	77	0.80	6.5	1.3	1.8
YD100L2	6	1.5	940	4.3	75	0.70	6	1.4	1.8
	4	2.2	1440	5.4	77	0.80	6.5	1.4	1.8
YD112M	6	2.2	960	5.7	77	0.75	6	1.4	1.8
	4	2.8	1440	6.7	77	0.82	6.5	1.3	1.8
YD132	6	3	960	7.7	79	0.70	6	1.4	1.8
	4	4	1440	9.5	80	0.82	6.5	1.3	1.8
YD132M	6	4	960	9.8	81	0.76	6	1.4	1.8
	4	5.5	1440	12.3	80	0.85	6.5	1.3	1.8
YD160M	6	6.5	970	15.1	84	0.78	6	1.4	1.8
	4	8	1460	17.4	83	0.85	6.5	1.3	1.8
YD160L	6	9	970	20.6	85	0.78	6	1.4	1.8
	4	11	1460	23.4	84	0.85	6.5	1.3	1.8
YD180M	6	11	980	25.9	85	0.78	6	1.4	1.8
	4	14	1470	29.8	85	0.85	6.5	1.3	1.8
YD180L	6	13	980	29.4	86	0.78	6	1.4	1.8
	4	16	1470	33.6	85	0.85	6.5	1.3	1.8
YD200L	6	18.5	980	41.4	87	0.78	6.5	1.4	1.8
	4	22	1460	44.7	87	0.86	6.5	1.3	1.8
YD225S	6	22	980	44.2	88	0.86	6.5	1.4	1.8
	4	28	1470	56.2	87	0.87	7	1.3	1.8
YD225M	6	26	980	52.2	88	0.86	6.5	1.4	1.8
	4	34	1470	66.0	87	0.90	7	1.3	1.8
YD250M	6	32	980	62.1	90	0.87	6.5	1.4	1.8
	4	42	1470	74.7	88	0.91	7	1.3	1.8
YD280S	6	42	980	81.5	90	0.87	6.5	1.4	1.8
	4	55	1470	104.2	89	0.90	7	1.3	1.8
YD280M	6	55	990	106.7	90	0.87	6.5	1.4	1.8
	4	72	1480	138.1	89	0.89	7	1.3	1.8
YD90L	8	0.45	680	1.9	58	0.63	5.5	1.5	1.8
	4	0.75	1420	1.92	72	0.87	6.5	1.5	1.8
YD100L	8	0.85	700	3.1	68	0.63	5.5	1.5	1.8
	4	1.5	1420	3.5	75	0.88	6.5	1.5	1.8
YD112M	8	1.5	700	5.0	72	0.63	5.5	1.5	1.8
	4	2.4	1420	5.3	78	0.88	6.5	1.5	1.8
YD132S	8	22	720	7.0	75	0.64	5.5	1.5	1.8
	4	3.3	1440	7.1	80	0.88	6.5	1.5	1.8
