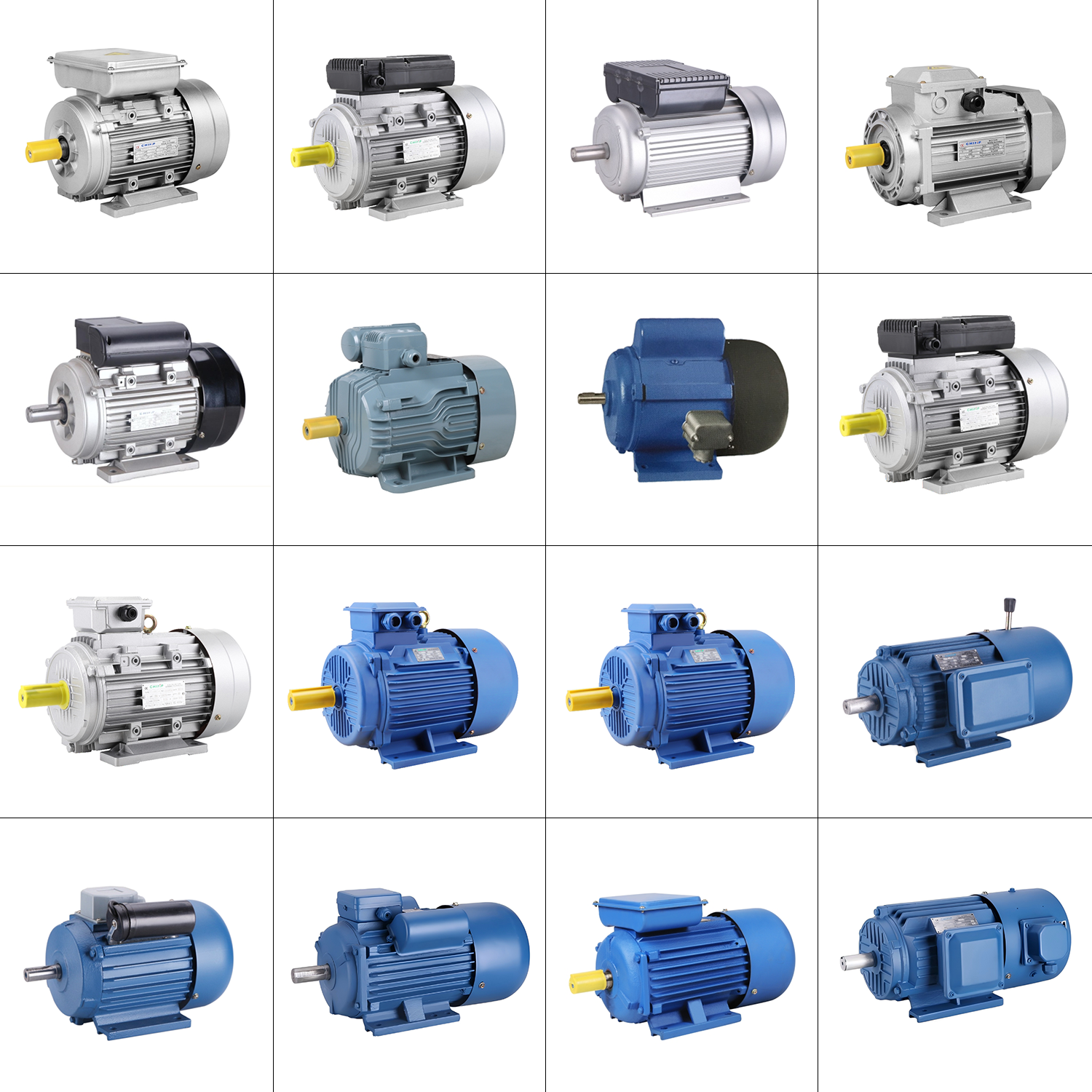

1.YC series motors are totally enclosed fan cooled(TEFC) heavy-duty single-phase induction motors.

2.The mounting dimension is fully comformed with IEC standard.

Ambient temperature:-15ºC< θ<40ºCAltitude:Not exceeding 1000m Rated

voltage:220V Rated

frequency:50HZ/60HZProtection

class:IP44/IP54Insulation

Class:ClassB/FCooling

method:ICO141

Duty:S1(continuous)

Technical Data

Type							Output					Voltage				Rated speed (r/min)				Rated current (A)			Eff(%)				Power factor			Locked rotor current			Locked rotor torque					Pull out torque
							Kw			Hp																				Rated torque			Rated torque					Rated torque
YC80A-2							0.37			0.5		220				2840				3.4			66.0				0.74			3			6.5					2
YC80B-2							0.55			0.75		220				2850				5.0			67.0				0.74			3			6.5					2
YC80C-2							0.75			1.1		220				2850				6.7			68.0				0.75			3			6.5					2
YC90S-2							1.1			1.5		220				2850				8.8			71.0				0.80			2.8			7.0					2
YC90L-2							1.5			2		220				2870				11.5			72.0				0.82			2.8			7.0					2
YC100L-2							2.2			3		220				2900				16.5			74.0				0.82			2.5			7.0					2
YC112M-2							3			4		220				2900				21.4			76.0				0.84			2.2			7.0					2
YC1325-2							3.7			5		220				2900				24.8			79.0				0.86			2.2			7.0					2
YC80A-4							0.25			0.33		220				1400				3.3			56.0				0.62			3			6					2
YC80B-4							0.37			0.5		220				1400				4.4			60.0				0.64			3			6					2
YC80C-4							0.55			0.75		220				1400				6.0			64.0				0.65			3			6					2
YC905-4							0.75			1		220				1400				7.1			67.0				0.72			2.8			6.5					2
YC90L-4							1.1			1.5		220				1420				9.9			70.0				0.72			2.8			6.5					2
YC100L-4							1.5			2		220				1440				13.0			72.0				0.73			2.8			6.5					2
YC112M-4							2.2			3		220				1450				18.5			73.0				0.74			2.5			6.5					2
YC132SA-4							3			4		220				1450				22.4			76.0				0.80			2.2			6.5					2
YC1325B-4							3.7			5		220				1450				26.0			79.0				0.82			2.2			6.5					2
