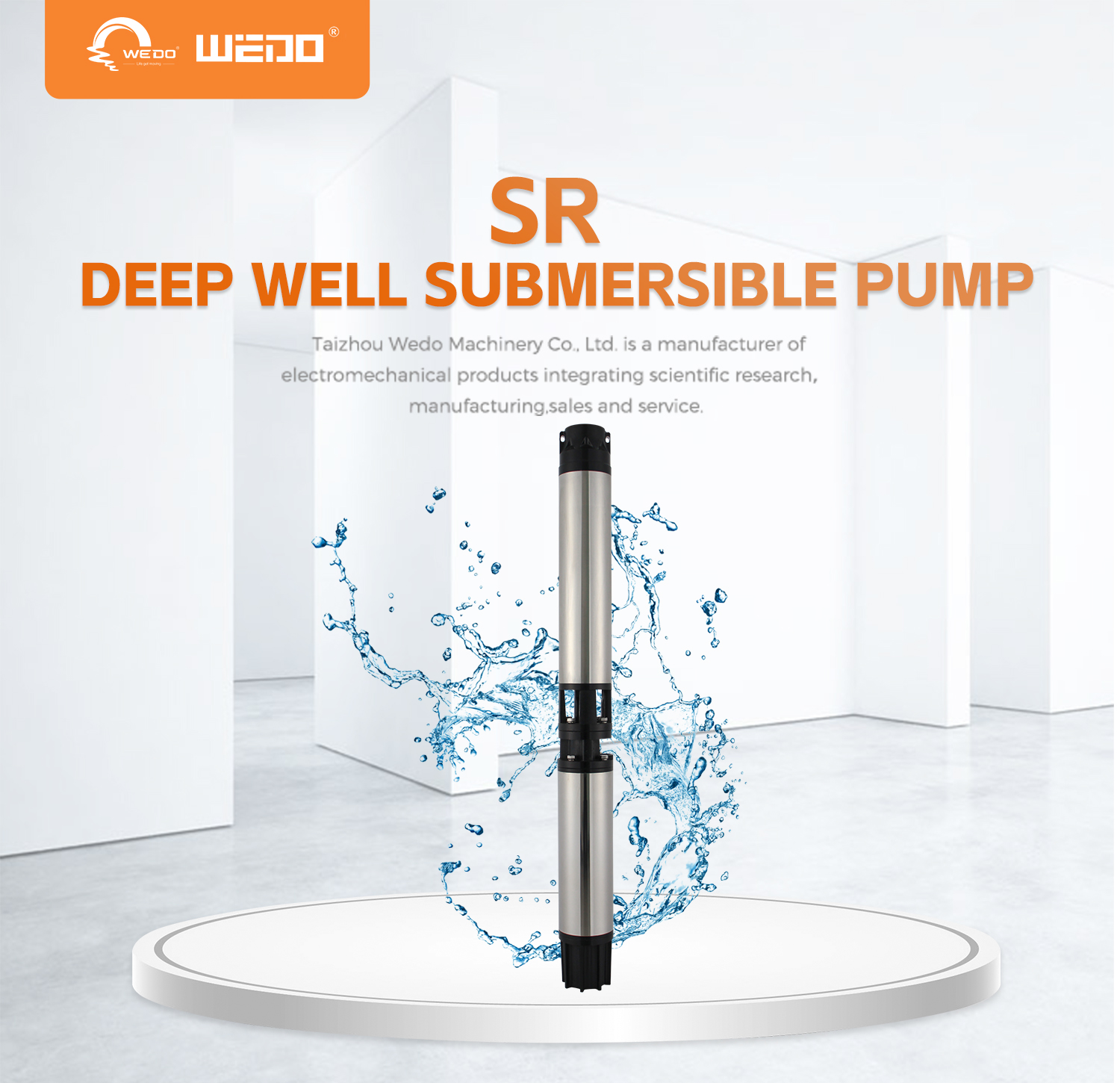

SR Electric Stainless Steel Submersible Deep Well Water Pump

Applications

For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
For garden use and irrigation.

Operating conditions
Maximum fluid temperature up to +35ºC.
Maximum sand content : 0.25%.

Motor and pump
Rewindable motor or Full obturated screen motor
Three-phase : 380V - 415V/50HZ
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards

MODEL	Power		Capacity （m³/h）	Head （m）
3~380V/415V	KW	HP	Capacity （m³/h）	Head （m）
6SR1804-3.0	3.0	4.0	30	52
6SR1806-4.0	4.0	5.5	30	78
6SR1808-5.5	5.5	7.5	30	104
6SR1811-7.5	7.5	10	30	143
6SR1813-9.2	9.2	12.5	30	169
6SR1815-11	11	15	30	195
6SR1818-13	13	17.5	30	234
6SR1821-15	15	20	30	273
6SR1825-18.5	18.5	25	30	325

MODEL	Power		Capacity （m³/h）	Head （m）
3~380V/415V	KW	HP	Capacity （m³/h）	Head （m）
6SR3003-3.0	3.0	4.0	43	41
6SR3004-4.0	4.0	5.5	43	54
6SR3006-5.5	5.5	7.5	43	81
6SR3008-7.5	7.5	10	43	108
6SR3009-9.2	9.2	12.5	43	122
6SR3011-11	11	15	43	149
6SR3012-13	13	17.5	43	162
6SR3014-15	15	20	43	189
6SR3017-18.5	18.5	25	43	230

MODEL	Power		Capacity （m³/h）	Head （m）
3~380V/415V	KW	HP	Capacity （m³/h）	Head （m）
6SR4502-3.0	3.0	4.0	65	25
6SR4503-4.0	4.0	5.5	65	38
6SR4504-5.5	5.5	7.5	65	50
6SR4505-7.5	7.5	10	65	63
6SR4506-9.2	9.2	12.5	65	75
6SR4507-11	11	15	65	88
6SR4508-13	13	17.5	65	100
6SR4509-15	15	20	65	113
6SR4511-18.5	18.5	25	65	138
