SK Submersible Deep well Water Pump
SK
Quantity:

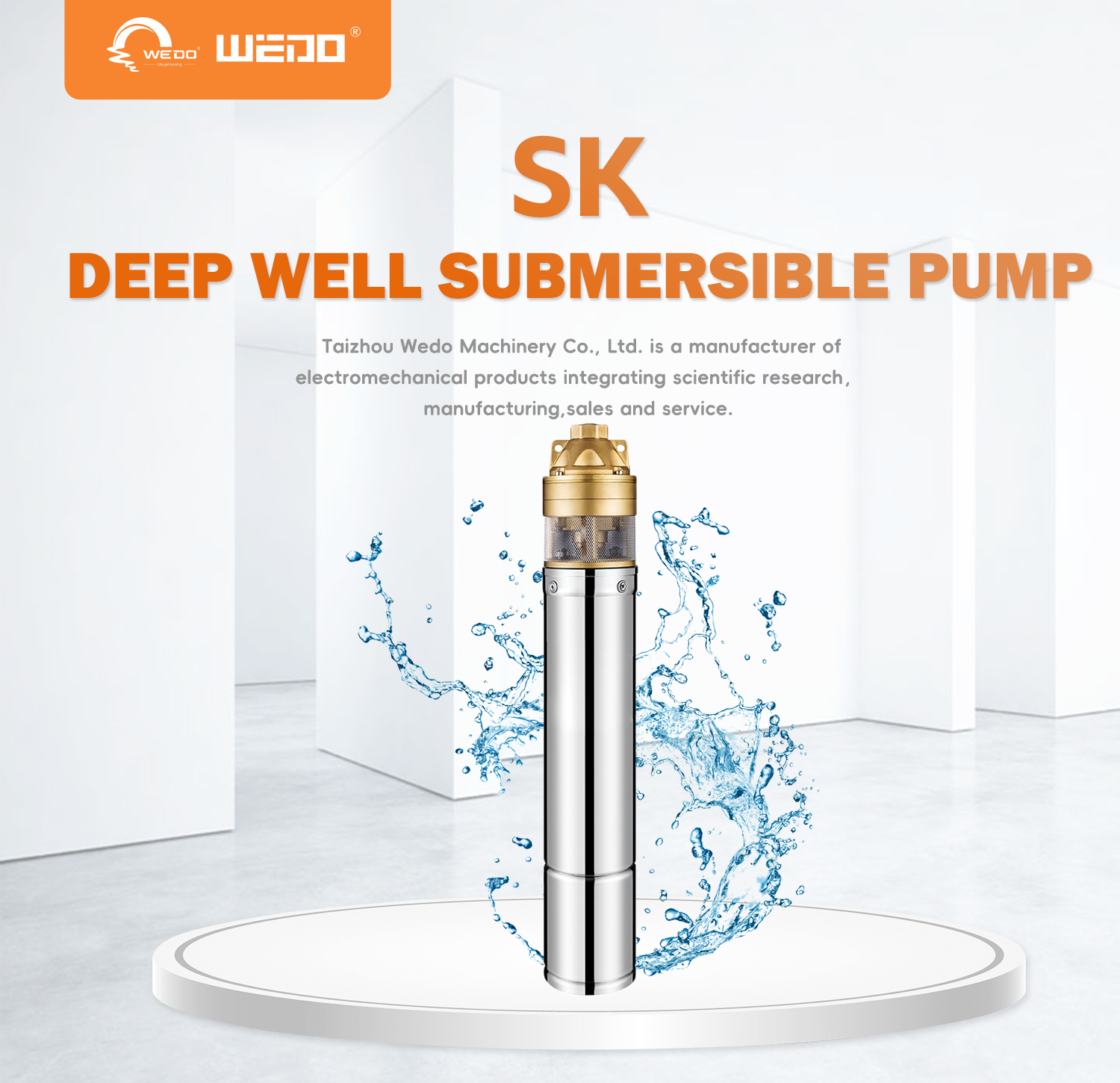

SK Series Brass Impeller Brass Outlet Submersible Deep well Water Pump
Application
For water supply from wells or reservoirs.
For domestic use ,for civil and industrial applications.
For garden use and irrigation.
Operating conditions
Maximum ambient temperature up to +40º C
Maximum sand content: 0.25%
Maximum immersion:50m.
Minimum well diameter:4".
Motor and pump
Rewindable motor
Three-phase: 380V-415V/50HZ
Single-phase: 220V-240/50HZ
Equip with start control box or digital auto-control box
Curve tolerance according to ISO 2548
Options on request
Special mechanical seal
Other voltages or frequency 60 Hz
Warranty: 1 year
(according to our general sales conditions)
| MODEL | Power | Max.Head (M) | Max.Flow (M3/H) | ||
| 1~220V/240V | 3~380V/415V | KW | HP | ||

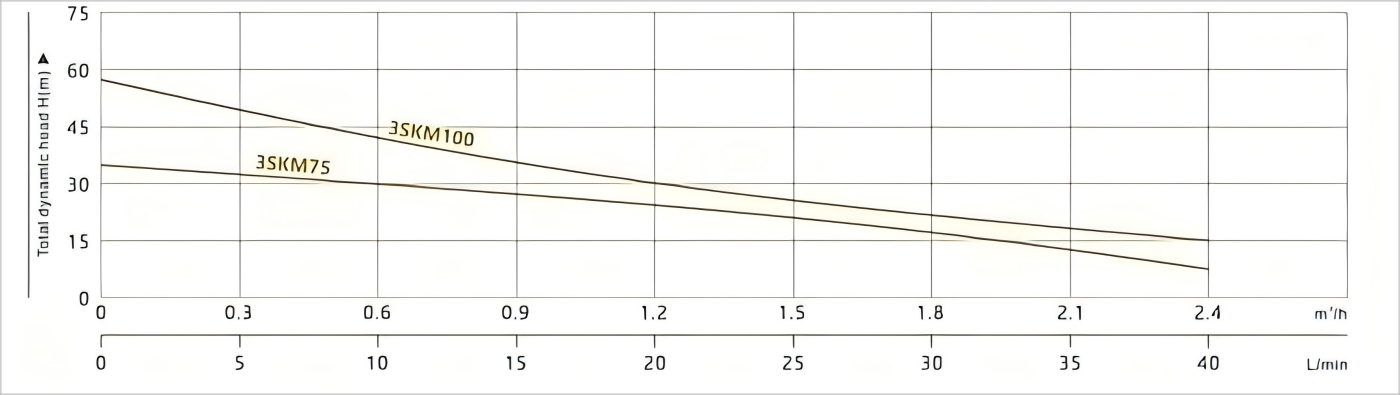

| 3SKM75 | 3SK75 | 0.55 | 0.75 | 35 | 2.4 |
| 3SKM100 | 3SK100 | 0.75 | 1.0 | 58 | 2.4 |
| MODEL | Power | Max.Head (M) | Max.Flow (M3/H) | ||
| 1~220V/240V | 3~380V/415V | KW | HP | ||

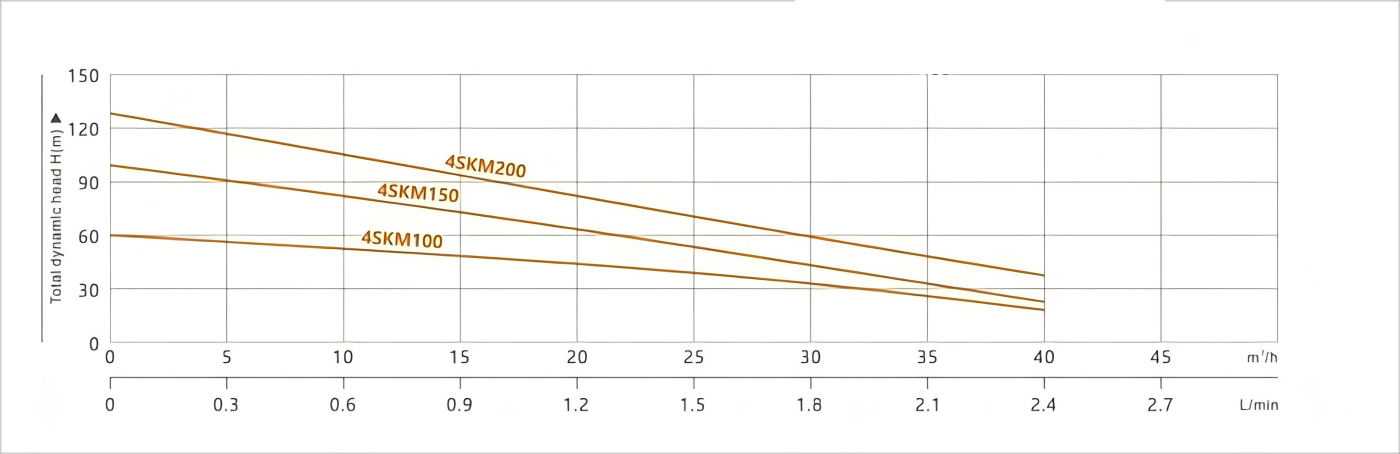

| 4SKM100 | 4SK100 | 0.75 | 1.0 | 61 | 2.7 |
| 4SKM150 | 4SK150 | 1.1 | 1.5 | 100 | 2.7 |
| 4SKM200 | 4SK200 | 1.5 | 2.0 | 130 | 2.7 |
