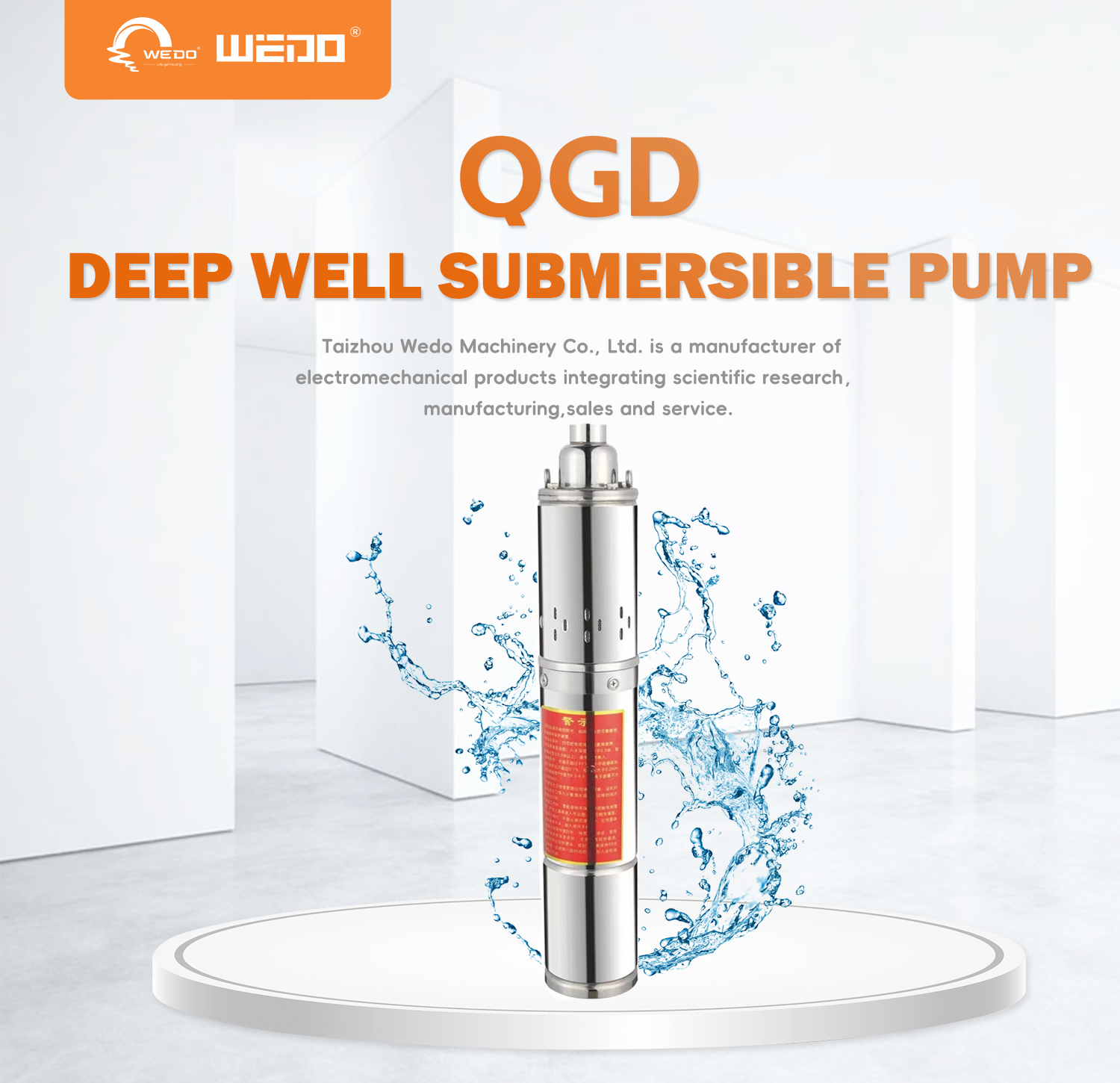

QGD Submersible Deep Well Water Pump

Application

1.Tank fountain
2.Garden irrigation
3.Water transfer
4.Domestic water

Working Conditions
Max temperature of fluid up to +40 °c
Max sand content:3%
Minimun well diameter : 4"
MInimun immersion:15m

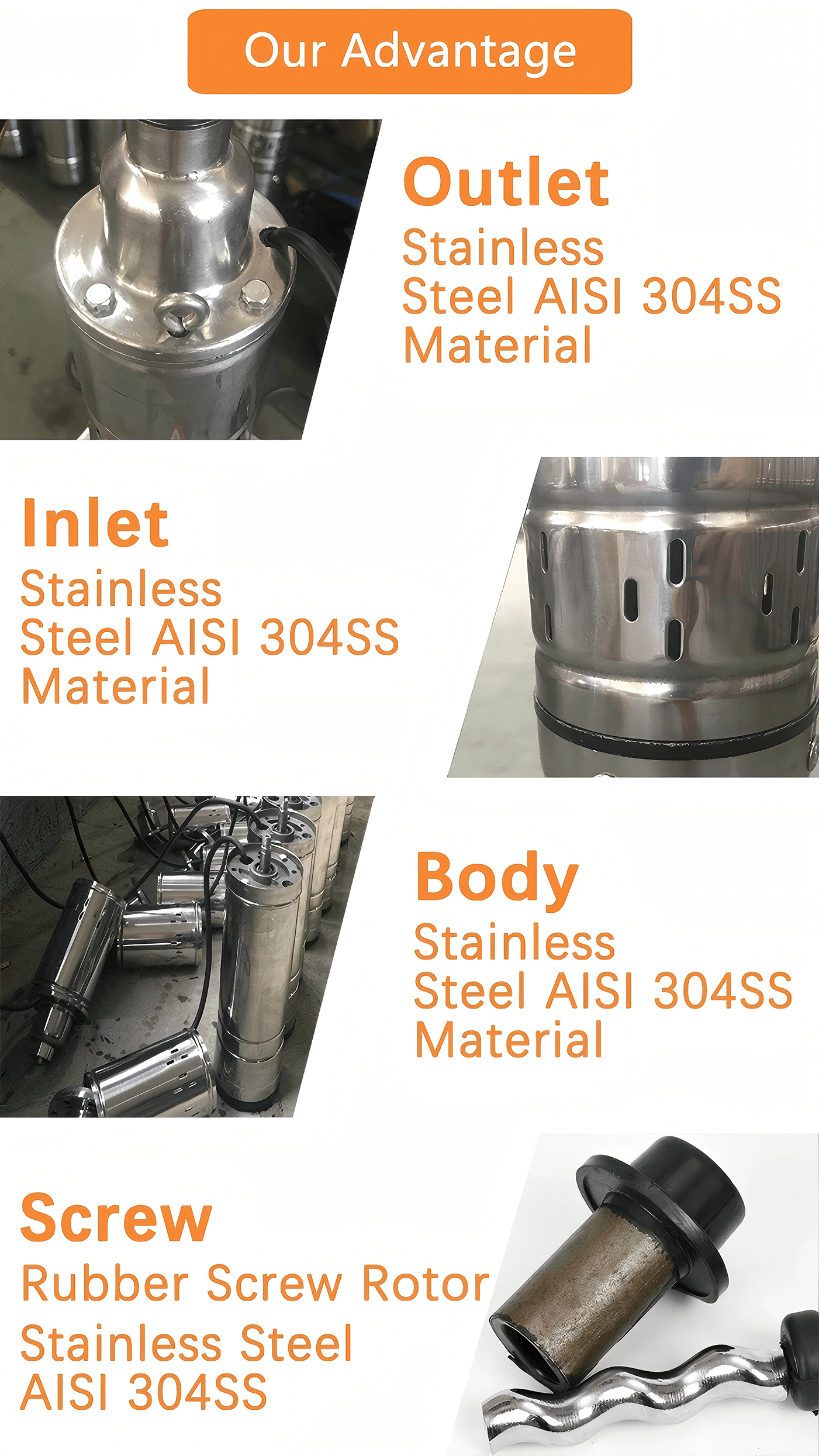

PUMP
Pumo body:Stainless Steel
Impeller : PPO/Stainless Steel
Mechnical Seal :stainless steel

MOTOR

Power:0.25 to 0.5kw (single phase)

Insulation class:B
Protection grade:IP58
Maximum Diameter:102mm diameter

Highest temperature of liquid :35.C

MODEL	Power		Capacity （m3/h）	Head （m）
1~220V/240V	KW	HP
3QGD1.5-72-0.37	0.37	0.5	1.5	72
3QGD1.5-90-0.55	0.55	0.75	1.5	90
3QGD2-103-0.75	0.75	1.0	2	103





MODEL	Power		Capacity （m3/h）	Head （m）
1~220V/240V	KW	HP
3.5QGD1-50-0.37	0.37	0.5	1.5	93
3.5QGD1-60-0.5	0.5	0.75	2	105
3.5QGD1.8-50-0.75	0.75	1.0	2	105





MODEL	Power		Capacity （m3/h）	Head （m）
1~220V/240V	KW	HP
4QGD1.2-50-0.37	0.37	0.5	2	105
4QGD1.2-60-0.55	0.5	0.75	2	125
4QGD1.2-100-0.75	0.75	1.0	2	148
4QGD1.8-50-0.55	0.55	0.75	2.5	105
4QGD1.8-80-0.75	0.75	1.0	2.5	130
