Category
SP Submersible Deep Well Water Pump
SP
Quantity:

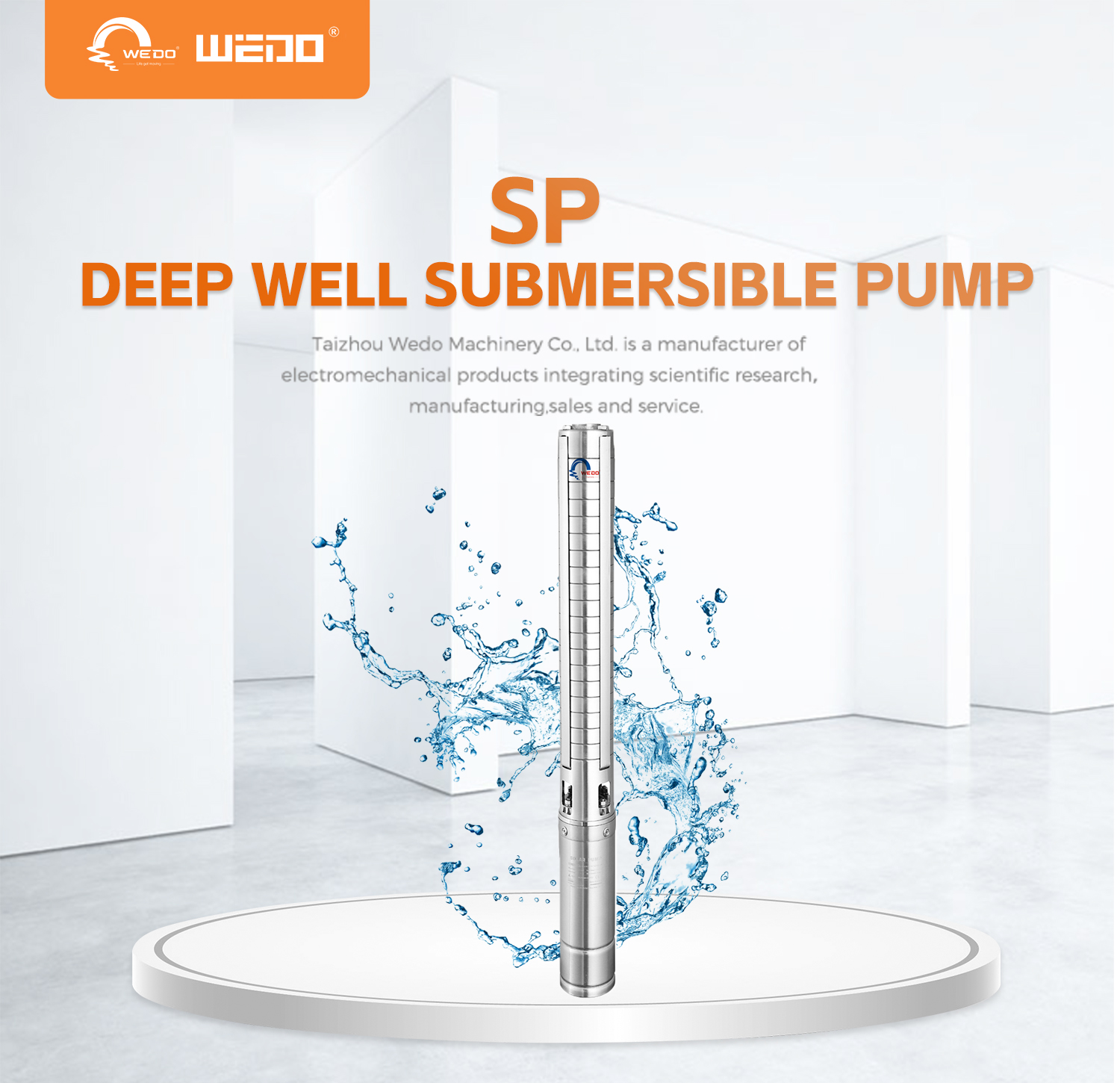

SP Electric Stainless Steel Submersible Deep Well Water Pump
Applications
For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irrigation.
For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irrigation.
Operating conditions
Maximum fluid temperature up to +50℃.
Maximum sand content:0.25%.
Maximum immersion:80m.
Minimum well diameter:4".
Motor and Pump
Rewindable motor or Full obturated screen motor
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz
Equip with start control box or digital auto-control box
NEMA dimension standards
Curve tolerance according to ISO 2548
Options on request
Special mechanical seal
Other voltages or frequency 60 Hz
Warranty:1 year
(according to our general sales conditions).
| MODEL | Power | Capacity （m3/h） | Head （m） | ||
| 1~220V/240V | 3~380V/415V | KW | HP | ||
| 4SPM206-0.37 | 4SP206-0.37 | 0.37 | 0.50 | 4 | 37 |
| 4SPM209-0.37 | 4SP209-0.37 | 0.37 | 0.50 | 4 | 55 |
| 4SPM213-0.55 | 4SP213-0.55 | 0.55 | 0.75 | 4 | 79 |
| 4SPM218-0.75 | 4SP218-0.75 | 0.75 | 1.00 | 4 | 110 |
| 4SPM223-1.1 | 4SP223-1.1 | 1.10 | 1.50 | 4 | 140 |
| 4SPM228-1.5 | 4SP228-1.5 | 1.50 | 2.00 | 4 | 171 |
| 4SPM233-1.5 | 4SP233-1.5 | 1.50 | 2.00 | 4 | 201 |
| 4SPM240-2.2 | 4SP240-2.2 | 2.20 | 3.00 | 4 | 244 |
| 4SPM248-2.2 | 4SP248-2.2 | 2.20 | 3.00 | 4 | 293 |
| 4SP255-3.0 | 3.00 | 4.00 | 4 | 336 | |
| MODEL | Power | Capacity （m3/h） | Head （m） | ||
| 1~220V/240V | 3~380V/415V | KW | HP | ||
| 4SPM306-0.37 | 4SP306-0.37 | 0.37 | 0.50 | 5.2 | 36 |
| 4SPM309-0.55 | 4SP309-0.55 | 0.55 | 0.75 | 5.2 | 54 |
| 4SPM312-0.75 | 4SP312-0.75 | 0.75 | 1.00 | 5.2 | 72 |
| 4SPM315-1.1 | 4SP315-1.1 | 1.10 | 1.50 | 5.2 | 90 |
| 4SPM322-1.5 | 4SP322-1.5 | 1.50 | 2.00 | 5.2 | 132 |
| 4SPM332-2.2 | 4SP332-2.2 | 2.20 | 3.00 | 5.2 | 192 |
| 4SP344-3.0 | 3.00 | 4.00 | 5.2 | 264 | |
| 4SP358-4.0 | 4.00 | 5.50 | 5.2 | 348 | |
| MODEL | Power | Capacity （m3/h） | Head （m） | ||
| 1~220V/240V | 3~380V/415V | KW | HP | ||
| 4SPM504-0.37 | 4SP504-0.37 | 0.37 | 0.50 | 8 | 25 |
| 4SPM506-0.55 | 4SP506-0.55 | 0.55 | 0.75 | 8 | 38 |
| 4SPM508-0.75 | 4SP508-0.75 | 0.75 | 1.00 | 8 | 50 |
| 4SPM512-1.1 | 4SP512-1.1 | 1.10 | 1.50 | 8 | 75 |
| 4SPM517-1.5 | 4SP517-1.5 | 1.50 | 2.00 | 8 | 106 |
| 4SPM522-2.2 | 4SP522-2.2 | 2.20 | 3.00 | 8 | 138 |
| 4SPM525-2.2 | 4SP525-2.2 | 2.20 | 3.00 | 8 | 156 |
| 4SP533-3.0 | 3.00 | 4.00 | 8 | 206 | |
| 4SP538-4.0 | 4.00 | 5.50 | 8 | 238 | |
| 4SP540-4.0 | 4.00 | 5.50 | 8 | 250 | |
| 4SP552-5.5 | 5.50 | 7.50 | 8 | 325 | |
| MODEL | Power | Capacity （m3/h） | Head （m） | ||
| 1~220V/240V | 3~380V/415V | KW | HP | ||
| 4SPM805-0.75 | 4SP6805-0.75 | 0.75 | 1.00 | 12.5 | 31 |
| 4SPM807-1.1 | 4SP807-1.1 | 1.10 | 1.50 | 12.5 | 43 |
| 4SPM810-1.5 | 4SP810-1.5 | 1.50 | 2.00 | 12.5 | 61 |
| 4SPM812-2.2 | 4SP812-2.2 | 2.20 | 3.00 | 12.5 | 73 |
| 4SPM814-2.2 | 4SP814-2.2 | 2.20 | 3.00 | 12.5 | 85 |
| 4SP818-3.0 | 3.00 | 4.00 | 12.5 | 110 | |
| 4SP821-4.0 | 4.00 | 5.50 | 12.5 | 128 | |
| 4SP824-4.0 | 4.00 | 5.50 | 12.5 | 146 | |
| 4SP830-5.5 | 5.50 | 7.50 | 12.5 | 183 | |
| 4SP835-5.5 | 5.50 | 7.50 | 12.5 | 214 | |
| 4SP840-7.5 | 7.50 | 10.00 | 12.5 | 244 | |
| 4SP844-7.5 | 7.50 | 10.00 | 12.5 | 268 | |
| MODEL | Power | Capacity （m3/h） | Head （m） | ||
| 1~220V/240V | 3~380V/415V | KW | HP | ||
| 4SPM1405-1.5 | 4SP1405-1.5 | 1.50 | 2.00 | 22 | 34 |
| 4SPM1407-2.2 | 4SP1407-2.2 | 2.20 | 3.00 | 22 | 48 |
| 4SP1410-3.0 | 3.00 | 4.00 | 22 | 68 | |
| 4SP1413-4.0 | 4.00 | 5.50 | 22 | 88 | |
| 4SP1417-5.5 | 5.50 | 7.50 | 22 | 116 | |
| 4SP1421-7.5 | 7.50 | 10.00 | 22 | 143 | |
| MODEL | Power | Capacity （m3/h） | Head （m） | ||
| 1~220V/240V | 3~380V/415V | KW | HP | ||
| 6SPM1702-1.1 | 6SP1720-1.1 | 1.10 | 1.50 | 30 | 22 |
| 6SPM1703-1.5 | 6SP1703-1.5 | 1.50 | 2.00 | 30 | 33 |
| 6SPM1704-2.2 | 6SP1704-2.2 | 2.20 | 3.00 | 30 | 44 |
| 6SP1705-3.0 | 3.00 | 4.00 | 30 | 55 | |
| 6SP1707-4.0 | 4.00 | 5.50 | 30 | 77 | |
| 6SP1709-5.5 | 5.50 | 7.50 | 30 | 99 | |
| 6SP1711-7.5 | 7.50 | 10.00 | 30 | 121 | |
| MODEL | Power | Capacity （m3/h） | Head （m） | |
| 3~380V/415V | KW | HP | ||
| 6SP1705-3.0 | 3.0 | 4.0 | 30 | 55 |
| 6SP1707-4.0 | 4.0 | 5.5 | 30 | 77 |
| 6SP1709-5.5 | 5.5 | 7.5 | 30 | 99 |
| 6SP1712-7.5 | 7.5 | 10 | 30 | 132 |
| 6SP1715-9.2 | 9.2 | 12.5 | 30 | 165 |
| 6SP1718-11 | 11 | 15 | 30 | 198 |
| 6SP1721-13 | 13 | 17.5 | 30 | 231 |
| 6SP1724-15 | 15 | 20 | 30 | 264 |
| 6SP1730-18.5 | 18.5 | 25 | 30 | 330 |
| MODEL | Power | Capacity （m3/h） | Head （m） | |
| 3~380V/415V | KW | HP | ||
| 6SP3003-3.0 | 3.0 | 4.0 | 46 | 40 |
| 6SP3004-4.0 | 4.0 | 5.5 | 46 | 53 |
| 6SP3006-5.5 | 5.5 | 7.5 | 46 | 79 |
| 6SP3008-7.5 | 7.5 | 10 | 46 | 106 |
| 6SP3010-9.2 | 9.2 | 12.5 | 46 | 132 |
| 6SP3012-11 | 11 | 15 | 46 | 158 |
| 6SP3014-13 | 13 | 17.5 | 46 | 185 |
| 6SP3016-15 | 15 | 20 | 46 | 211 |
| 6SP3019-18.5 | 18.5 | 25 | 46 | 253 |
| MODEL | Power | Capacity （m3/h） | Head （m） | |
| 3~380V/415V | KW | HP | ||
| 6SP4602-3.0 | 3.0 | 4.0 | 71 | 27 |
| 6SP4603A-4.0 | 4.0 | 5.5 | 71 | 37 |
| 6SP4603-5.5 | 5.5 | 7.5 | 71 | 40 |
| 6SP4605-7.5 | 7.5 | 10 | 71 | 66 |
| 6SP4606-9.2 | 9.2 | 12.5 | 71 | 79 |
| 6SP4607-11 | 11 | 15 | 71 | 92 |
| 6SP4608-13 | 13 | 17.5 | 71 | 106 |
| 6SP4610-15 | 15 | 20 | 71 | 132 |
| 6SP4612-18.5 | 18.5 | 25 | 71 | 158 |
| MODEL | Power | Capacity （m3/h） | Head （m） | |
| 3~380V/415V | KW | HP | ||
| 6SP6002-4.0 | 4.0 | 5.5 | 80 | 28 |
| 6SP6003-5.5 | 5.5 | 7.5 | 80 | 42 |
| 6SP6004-7.5 | 7.5 | 10 | 80 | 56 |
| 6SP6005-9.2 | 9.2 | 12.5 | 80 | 70 |
| 6SP6006-11 | 11 | 15 | 80 | 84 |
| 6SP6007-13 | 13 | 17.5 | 80 | 98 |
| 6SP6008-15 | 15 | 20 | 80 | 112 |
| 6SP6009-18.5 | 18.5 | 25 | 80 | 126 |
| MODEL | Power | Capacity （m3/h） | Head （m） | |
| 3~380V/415V | KW | HP | ||
| 8SP77-1 | 5.5 | 7.5 | 90 | 20 |
| 8SP77-2 | 7.5 | 10 | 90 | 40 |
| 8SP77-3 | 11 | 15 | 90 | 59 |
| 8SP77-4 | 15 | 20 | 90 | 79 |
| 8SP77-5 | 18.5 | 25 | 90 | 99 |
| 8SP77-6 | 22 | 30 | 90 | 119 |
| 8SP77-7 | 26 | 35 | 90 | 139 |
| 8SP77-8 | 30 | 40 | 90 | 159 |
| 8SP77-10 | 37 | 50 | 90 | 198 |
| 8SP77-12 | 45 | 60 | 90 | 238 |
| 8SP77-15 | 55 | 75 | 90 | 297 |
| 8SP77-17 | 63 | 85 | 90 | 337 |
| 8SP77-20 | 75 | 100 | 90 | 397 |
| MODEL | Power | Capacity （m3/h） | Head （m） | |
| 3~380V/415V | KW | HP | ||
| 8SP95-1 | 5.5 | 7.5 | 110 | 21 |
| 8SP95-2 | 9.2 | 12.5 | 110 | 41 |
| 8SP95-3 | 13 | 17.5 | 110 | 61 |
| 8SP95-4 | 18.5 | 25 | 110 | 82 |
| 8SP95-5 | 22 | 30 | 110 | 102 |
| 8SP95-6 | 26 | 35 | 110 | 123 |
| 8SP95-7 | 30 | 40 | 110 | 143 |
| 8SP95-9 | 37 | 50 | 110 | 184 |
| 8SP95-11 | 45 | 60 | 110 | 225 |
| 8SP95-13 | 55 | 75 | 110 | 267 |
| 8SP95-15 | 63 | 85 | 110 | 306 |
| 8SP95-17 | 75 | 100 | 110 | 347 |
| 8SP95-20 | 93 | 125 | 110 | 408 |
| MODEL | Power | Capacity （m3/h） | Head （m） | |
| 3~380V/415V | KW | HP | ||
| 10SP125-1 | 7.5 | 10 | 160 | 28 |
| 10SP125-2 | 13 | 17.5 | 160 | 56 |
| 10SP125-3 | 22 | 30 | 160 | 84 |
| 10SP125-4 | 37 | 50 | 160 | 112 |
| 10SP125-5 | 45 | 60 | 160 | 140 |
| 10SP125-6 | 55 | 75 | 160 | 168 |
| 10SP125-7 | 75 | 100 | 160 | 196 |
| 10SP125-8 | 75 | 100 | 160 | 224 |
| 10SP125-9 | 93 | 125 | 160 | 252 |
| 10SP125-10 | 93 | 125 | 160 | 280 |
| MODEL | Power | Capacity （m3/h） | Head （m） | |
| 3~380V/415V | KW | HP | ||
| 10SP160-1 | 9.2 | 12.5 | 180 | 30 |
| 10SP160-2 | 18.5 | 25 | 180 | 60 |
| 10SP160-3 | 30 | 40 | 180 | 90 |
| 10SP160-4 | 45 | 60 | 180 | 120 |
| 10SP160-5 | 55 | 75 | 180 | 150 |
| 10SP160-6 | 75 | 100 | 180 | 180 |
| 10SP160-7 | 75 | 100 | 180 | 210 |
| 10SP160-8 | 93 | 125 | 180 | 240 |
| 10SP160-9 | 110 | 150 | 180 | 270 |
