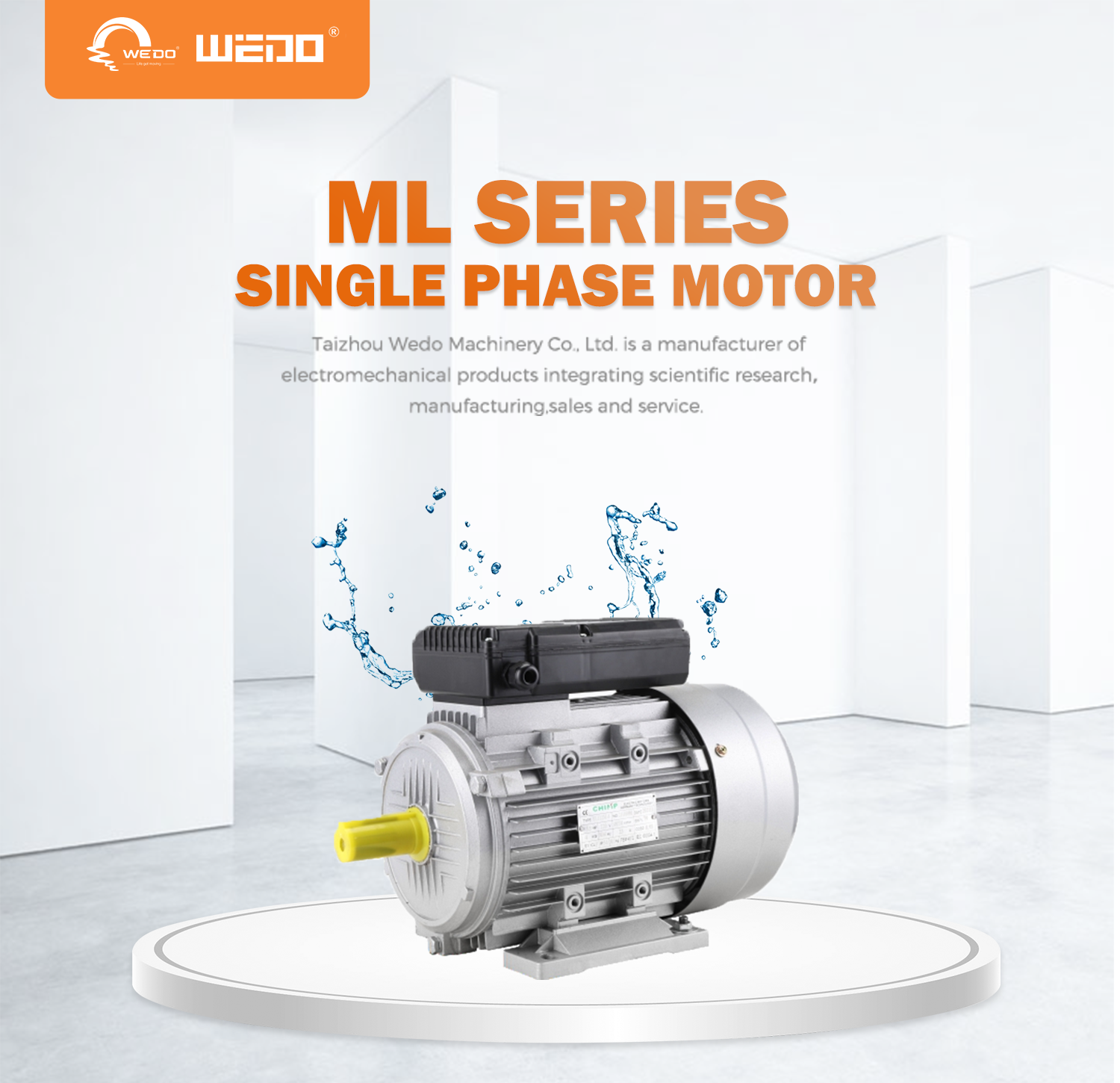

ML series single phase motor

ML series 220V aluminum housing dual-capacitor induction motor

ML series motor which adopting the latest designand high qualiy materal. and conform to the IEC standard.
The efficiency of motor meets EFF2 standard in Europe, and EFF1 standard if request.
The motor has a lot of advantages including high efficiency, energy saving, low noise, lttle vibration, light weight, convenient operation and maintenance.
The motor with removable feet is made of aluminum-alloy die casting, various mounting mode are available.
The series motor are fit for the common sites and concise machines that has no special requirements including, air-compressor, pump fan medical apparatus and instruments, small machines, etc.

TECHNICAL DATA

Type			Output					Rated speed  (r/min)				Voltage (V)				Frequency (Hz)			Rated current (A)				Eff(%)		Power factor			Locked rotor current				Locked rotor torque				Pull out torque
			kw		hp																							Rated torque				Rated torque				Rated torque
ML711-2			0.37		0.5			2800				220				50			2.73				67		0.92			1.8				16.0				1.7
ML712-2			0.55		0.75			2800				220				50			3.88				70		0.92			1.8				21.0				1.7
ML801-2			0.75		1			2800				220				50			5.15				72		0.92			1.8				29.0				1.7
ML802-2			1.1		1.5			2800				220				50			6.85				75		0.95			1.8				40.0				1.7
ML90S-2			1.5		2			2800				220				50			9.44				76		0.95			1.7				55.0				1.7
ML90L-2			2.2		3			2800				220				50			13.67				77		0.95			1.7				80.0				1.7
ML100L-2			3		4			2900				220				50			18.2				79		0.95			1.7				110.0				1.7
ML112M-2			3.7		5			2900				220				50			21.9				80		0.96			1.7				130.0				1.7
ML1325-2			5.5		7.5			2900				220				50			31				82		0.97			1.7				/				1.7
ML132M-2			7.5		10			2900				220				50			43				84		0.97			1.7				/				1.7
ML711-4			0.25		0.33			1400				220				50			2.02				62		0.92			1.8				12.0				1.7
ML712-4			0.37		0.5			1400				220				50			2.81				65		0.92			1.8				16.0				1.7
ML801-4			0.55		0.75			1400				220				50			3.88				68		0.92			1.8				21.0				1.7
ML802-4			0.75		1			1400				220				50			5.22				71		0.92			1.8				29.0				1.7
ML90S-4			1.1		1.5			1400				220				50			7.21				73		0.95			1.7				40.0				1.7
ML90L-4			1.5		2			1400				220				50			9.57				76		0.95			1.7				55.0				1.7
ML100L1-4			2.2		3			1400				220				50			13.9				77		0.95			1.7				80.0				1.7
ML100L2-4			3		4			1400				220				50			18.6				78		0.95			1.7				110.0				1.7
ML112M-4			3.7		5			1430				220				50			23				79		0.95			1.7				140.0				1.7
ML132M1-4			5.5		7.5			1450				220				50			32				81		0.96			1.7				/				1.7
ML132M2-4			7.5		10			1460				220				50			45				83		0.96			1.7				/				1.7
