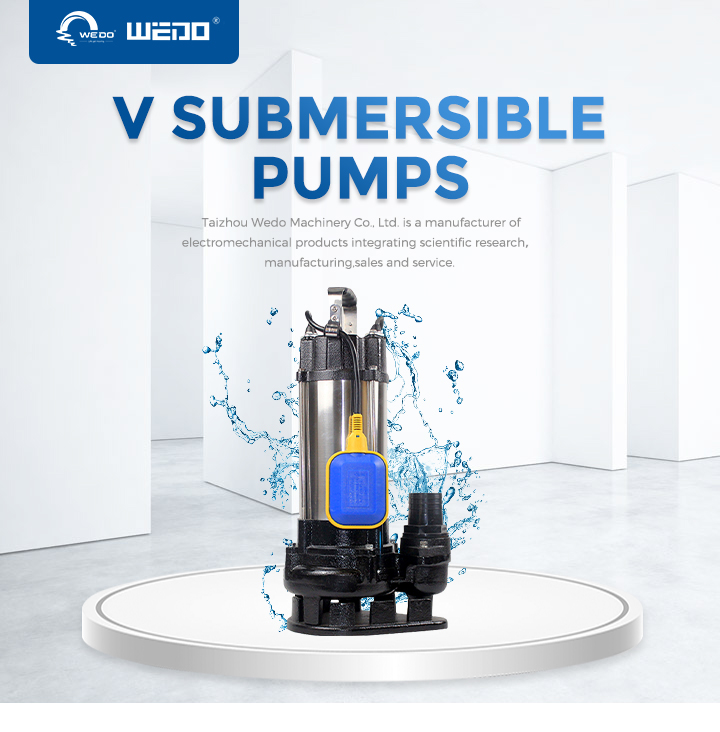

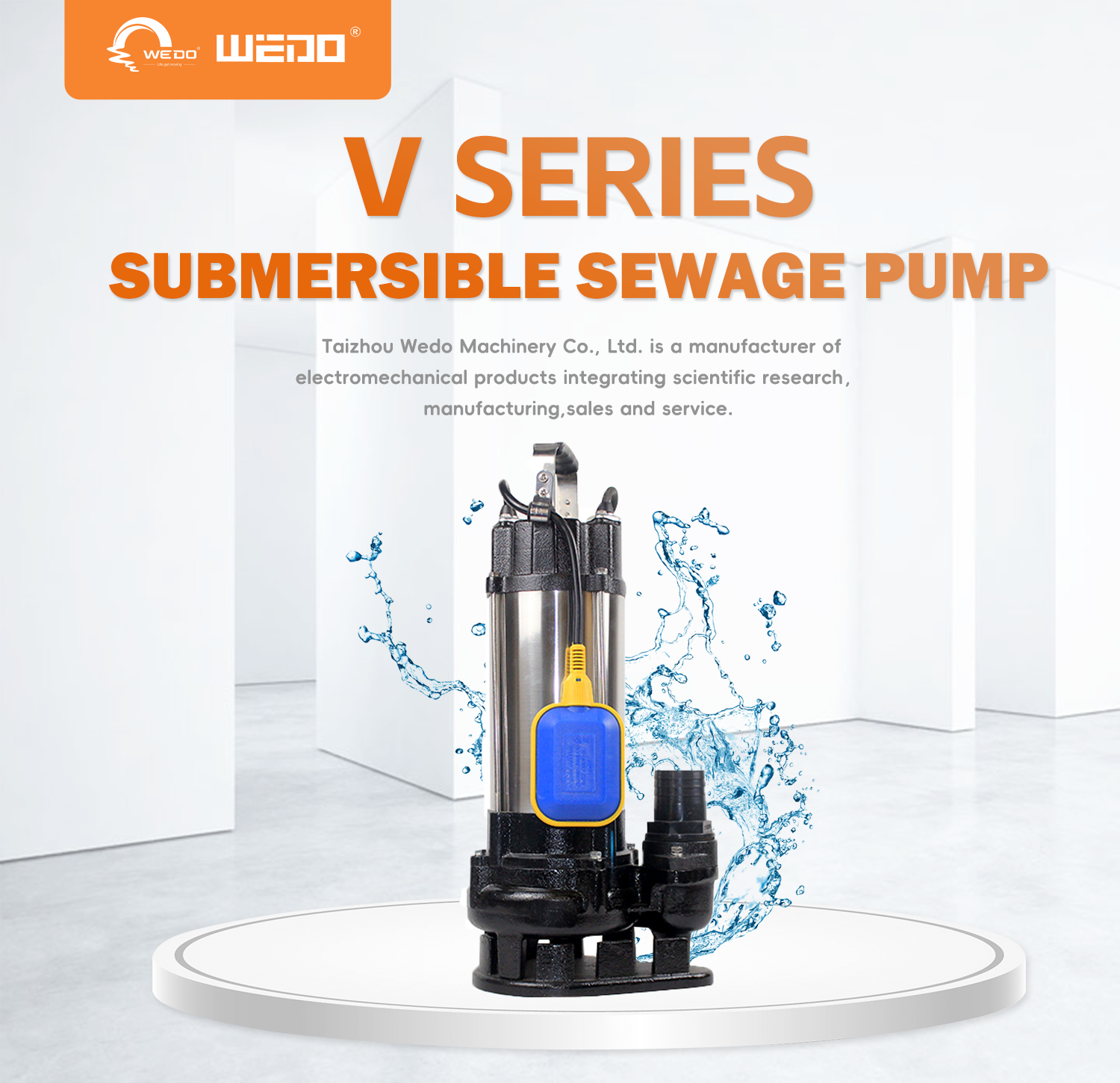

V Series Submersible Sewage pump

V Series

Delivery:

FOB

Supply Ability:

10000 / Day

Country of Origin:

Taizhou, China

Quantity:

Contact Now

add to cart

V Series 2inch Stainless Steel Dirty Water Electric Submersible Sewage pump

Lift dirty water which is not chemically aggressive to the pumpcomponents. In all cases where suspended solids up 50mm have to be dealt with.

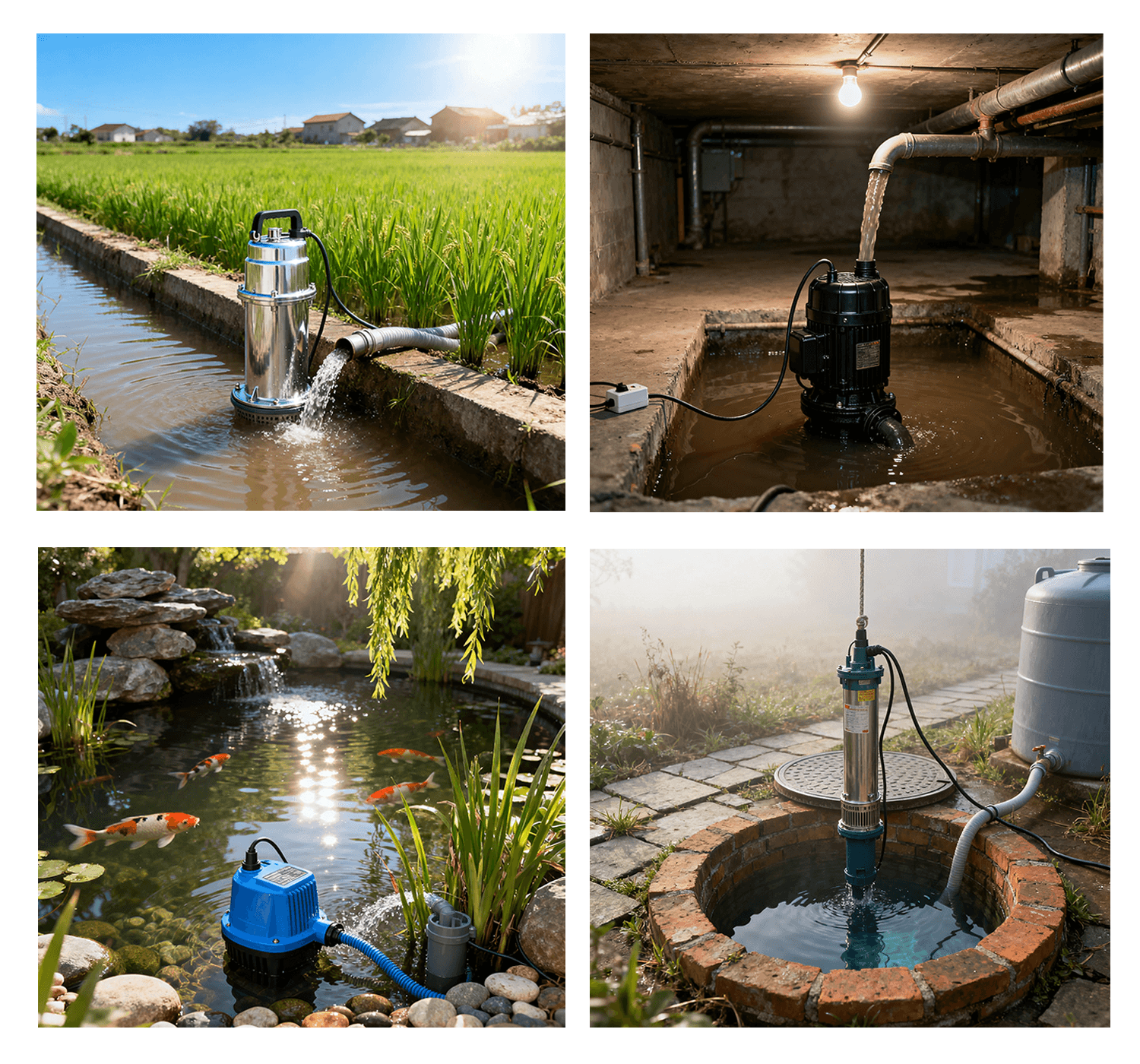

Recommended applications therefore include draining floodingin confined areas such as basements and garages, alsopumping domestic waste from homes,

commercial premises or farms and removing waste water from process plants, factories, building sites or mines, etc.

Application
1. Tank filling
2. Agricultural irrigation
3. Water transfer
4. Industrial using
5. Domestic waste water

Working Conditions
1. Suction lift up to 10 m
2. Liquid temperature up to +40°C
3. Ambient temperature up to +40°C
4. Max. Working pressure: 6 bar

Construct

Pump body: Cast Iron
Housing: Alloy Aluminum
Impeller: Brass/Plastic/SS
Motor: Electric Motor
Shaft: 45# steel/ stainless steel welding
Insulation : Class B ( Class F if you required)
Protection : IP44/IP54
Cooling: External Ventilation
Mechanical Seal: Carbon/Ceramic/Stainless Steel

Warranty : 1 year
(according to our general sales condition)

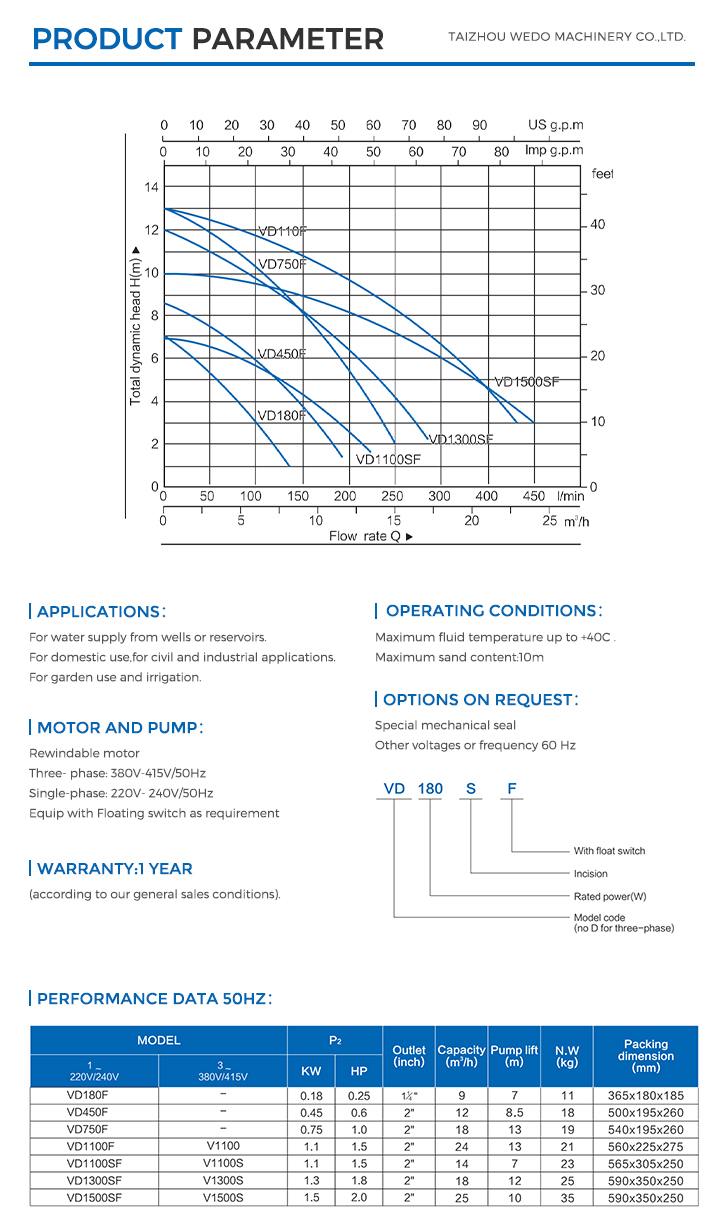

Technical data

1. Max submerged depth up to 5m
2. Liquid temperature up to +40°C
3. Ambient temperature up to +40°C
4. PH value : 4-1

Model	Flow rate	Head	Power	HP	Voltage	Speed	Frequency	Outlet	Float switch
Model	m³/h	M	KW	HP	V	R/MIN	HZ	INCH	Float switch
V180	5	8	0.18	0.25	220	2860	50hz	1"	can add
V450	10	13	0.45	0.6	220	2860	50HZ	2"	can add
V750	10	16	0.75	1	220	2860	50hz	2"	can add
V1100	10	22	1.1	1.5	220	2860	50hz	2"	can add
V1300D	20	9	1.3	1.8	220	2860	50	2"	can add
V1500	8	26	1.5	2	220	2860	50	1.5"	can add
V2200	42	7	2.2	3	220	2860	50	3"	can add
