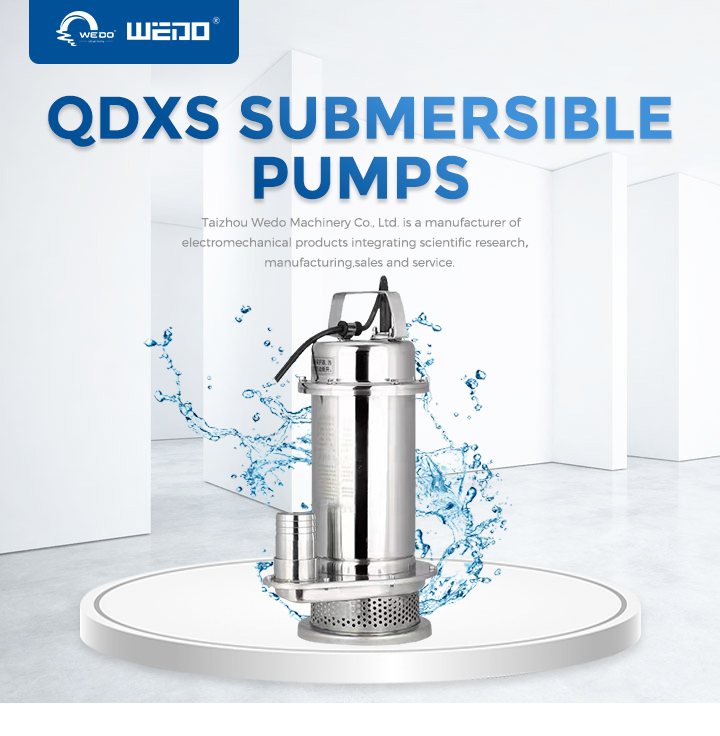

QDXS Series Stainless Steel Submersible Water Pump

WORKING PRINCIPLE:

QDXS pumps are half open impeller centrifugal submersible pumps, designed for automatic and non-automatic use.

the impeller mounted on the end of the drive shaft,consists of a rear disk and blades,which are enclosed by the pump body cover.

fluid enters the rotating blade channel via the suction strainer. which forms the support base for the pump.

here the fluid moves radially from the center outwards. acquiring energy both in the form of pressure and increased speed.

when it leaves the impeller the fluid is conveyed towards the volute.

here part of the kinetic energy is transformed into pressure energy and the fluid leaves the pump via the side opening machined in the pump body.

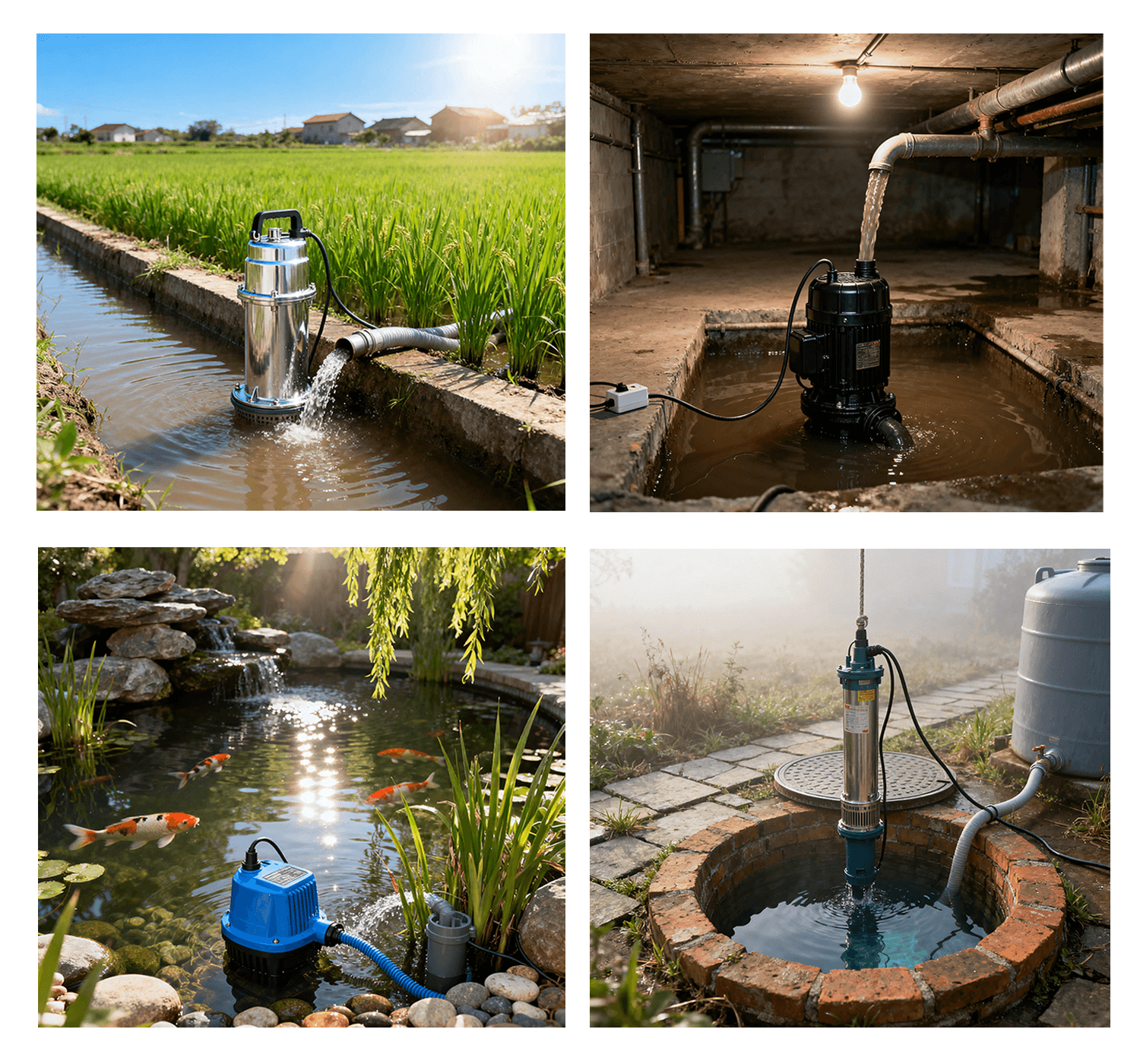

PUMP INSTALLATION APPLICATIONS:

as portable electric drainage & irrigation devices.QDXS series single -phase vertical submersible pumps with lower water input are widely suitable for water cluster boxes.

farmland.industrial & mining enterprise.construction sites.ship and family. and characterized by less volume. light weight and convenient operation etc.

(the pump is fitted with a floating with a floating switch. so it is possible to achieve the automatic control of start- -stop action under no one's care.)

single--phase capacitor -running asynchronous or 3-phase asynchronous motor is equipped in this pump and installed with a built--in thermal protector,

and can be automatically cut--off in the case of overhead or over-current.this assuring safe and reliable running under worse circumstances.

STRUCTURAL CHARACTERISTIC:

Aluminum Pump Body

Stainless Steel Mechanical Seal(graphite To Sic To Graphite)

With Float Switch Or Without

Round Shape Or Square Shape

Cast Iron Impeller Or Nylon Impeller With Tech-nopolymer

Half Open Type

With Thermal Over Load Protector In Single Phase Motor

Warranty: 1 year(according to our general sales conditions)
