Submersible water pump

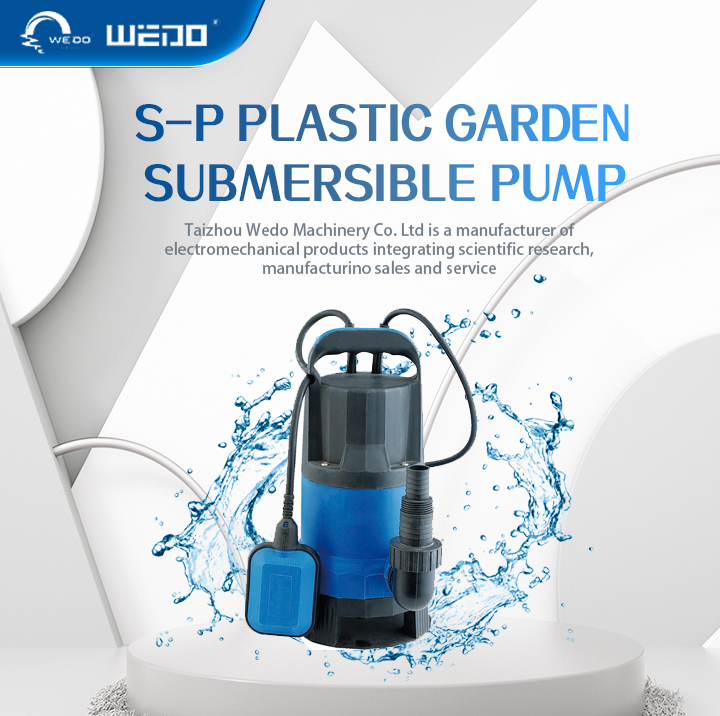

S-P Submersible Garden Clean Water Pump

S-P
Quantity:
Contact Now
add to cart
Float Switch Plastic Submersible Garden Clean Water Pump For Garden

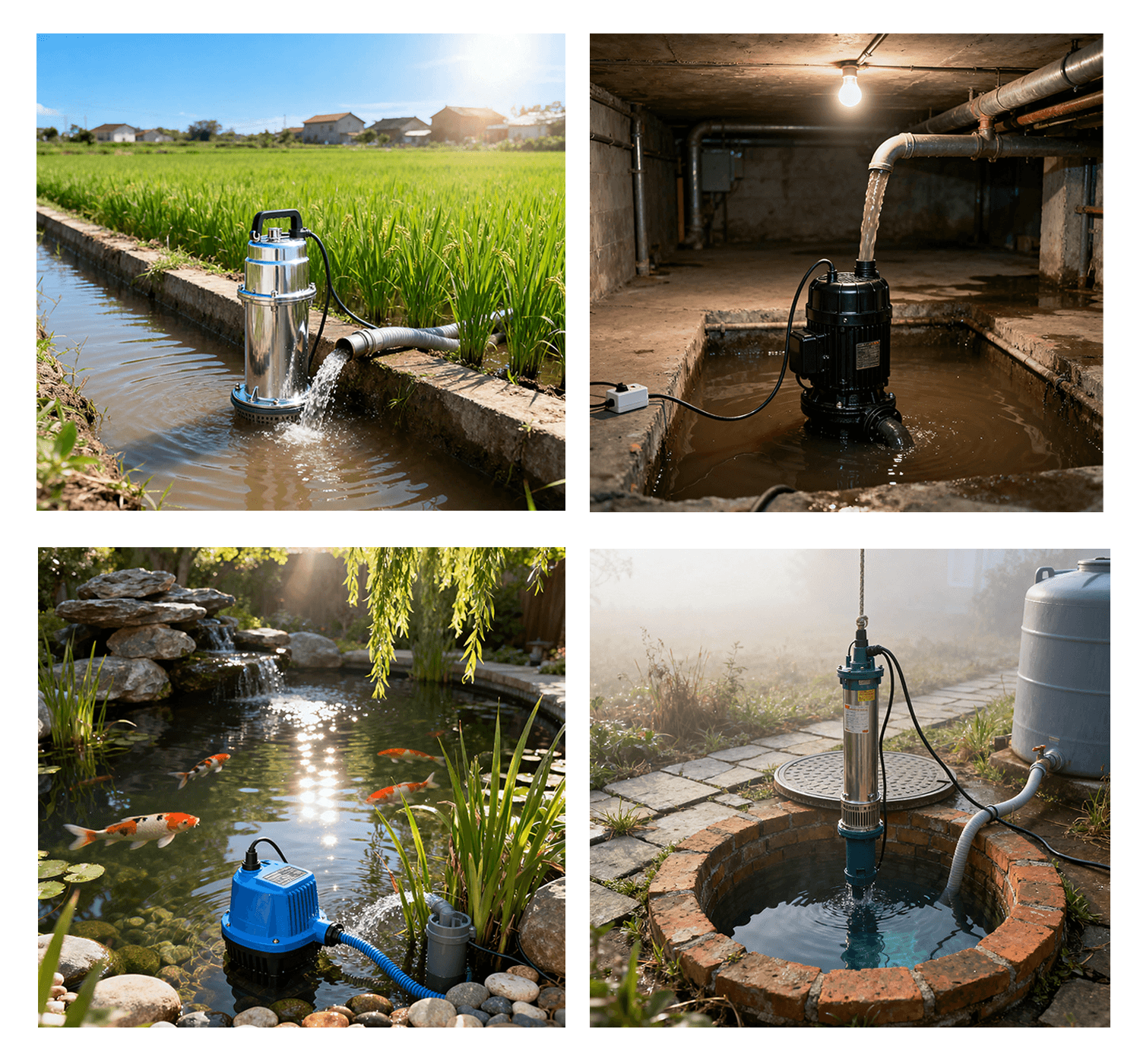

Application
For water supply from wells or reservoirs.
For domestic use ,for civil and industrial applications.
For garden use and irrigation.

Operating conditions
Maximum ambient temperature up to +40º C
Maximum sand content: 0.25%

Motor and pump
Rewindable motor
Three-phase: 380V-415V/50HZ

Single-phase: 220V-240/50HZ

Options on request

Special mechanical seal

Other voltages or frequency 60 Hz

Warranty: 1 year
(according to our general sales conditions)

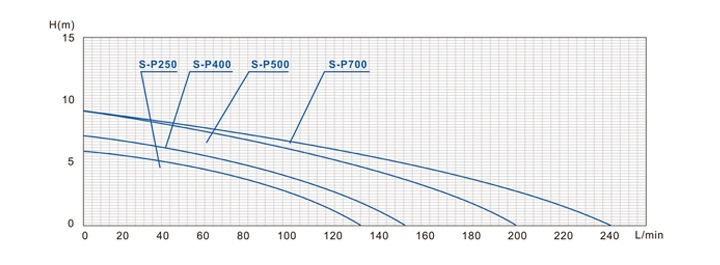

Technical Data

MODEL

POWER

Inlet

Max.Flow

Max.Head

Packing Dimension(mm)

G.W
(kg)

Packing QTY
(pcs)

Single-Phase

W

HP

(Inch)

(m³/h)

(m)

S-P250

250

0.35

1

130

6

210×180×320

4.65

2300

S-P400

400

0.5

1

150

7.5

210×180×320

4.75

2300

S-P500

500

0.75

1

200

9

210×180×320

5.65

2300

S-P750

750

1

1

240

9

210×180×340

6.2

2100
