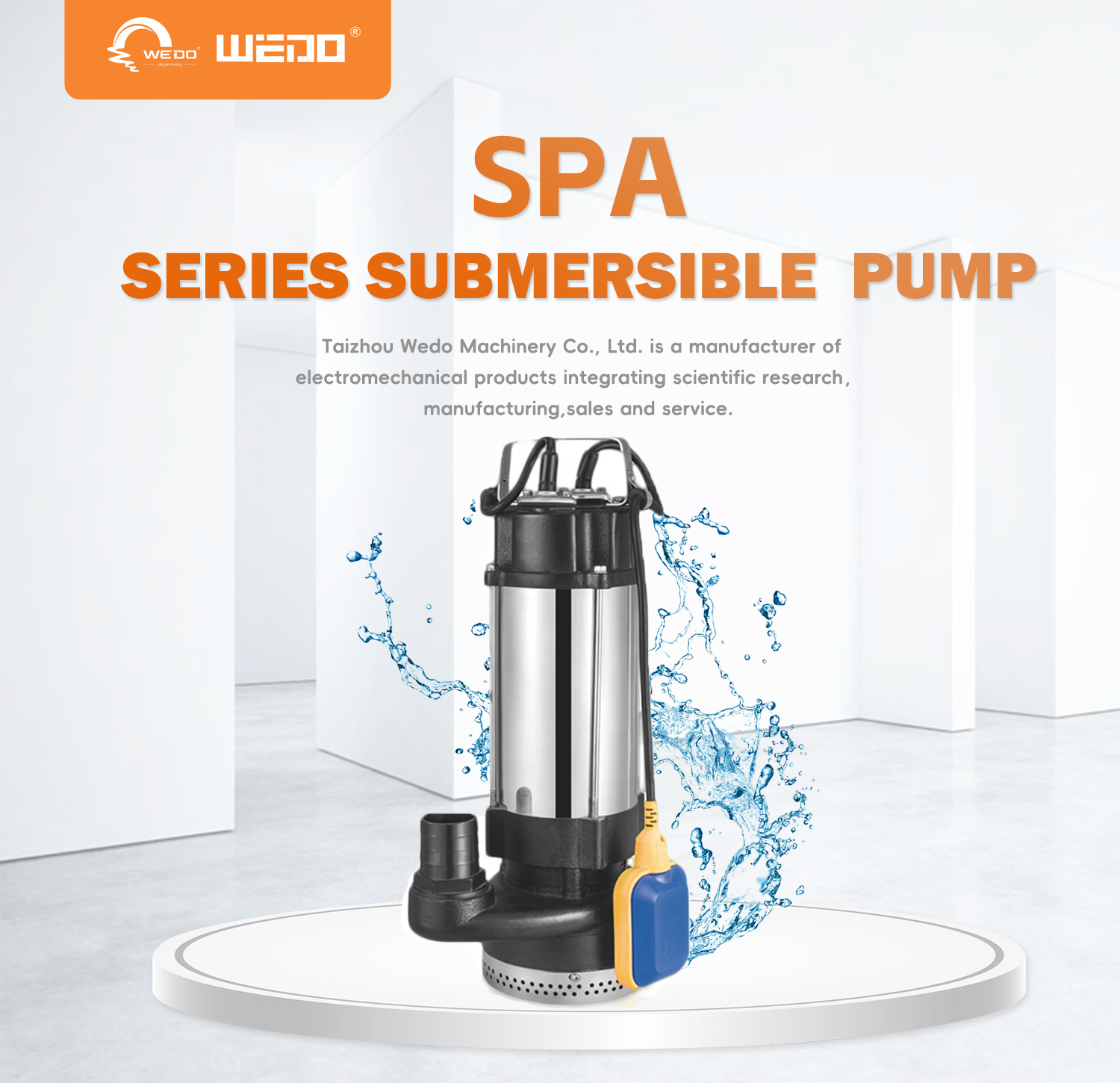

SPA Series 2INCH Household Float Switch Submersible Electric Water Pump

Introduction
Modern SPA series of stainless steel drainage submersible sewage pump is a kind of standing stainless submersible pump which is found of"304-316".

The adoption of swirling flow style bottom suction structure and the unique flow passage design provise it with wide efficient area of the lift and downright drainage ,

suitable for the transportation of mine enterprise, construction site, breed aquatics industry,fluid dug, drink, seawater

and solids whose diameter is no bigger than 10mm in the general caustic medium whose physics nature is similar to water.

The multi impeller design to meet the requirement of much higher head.

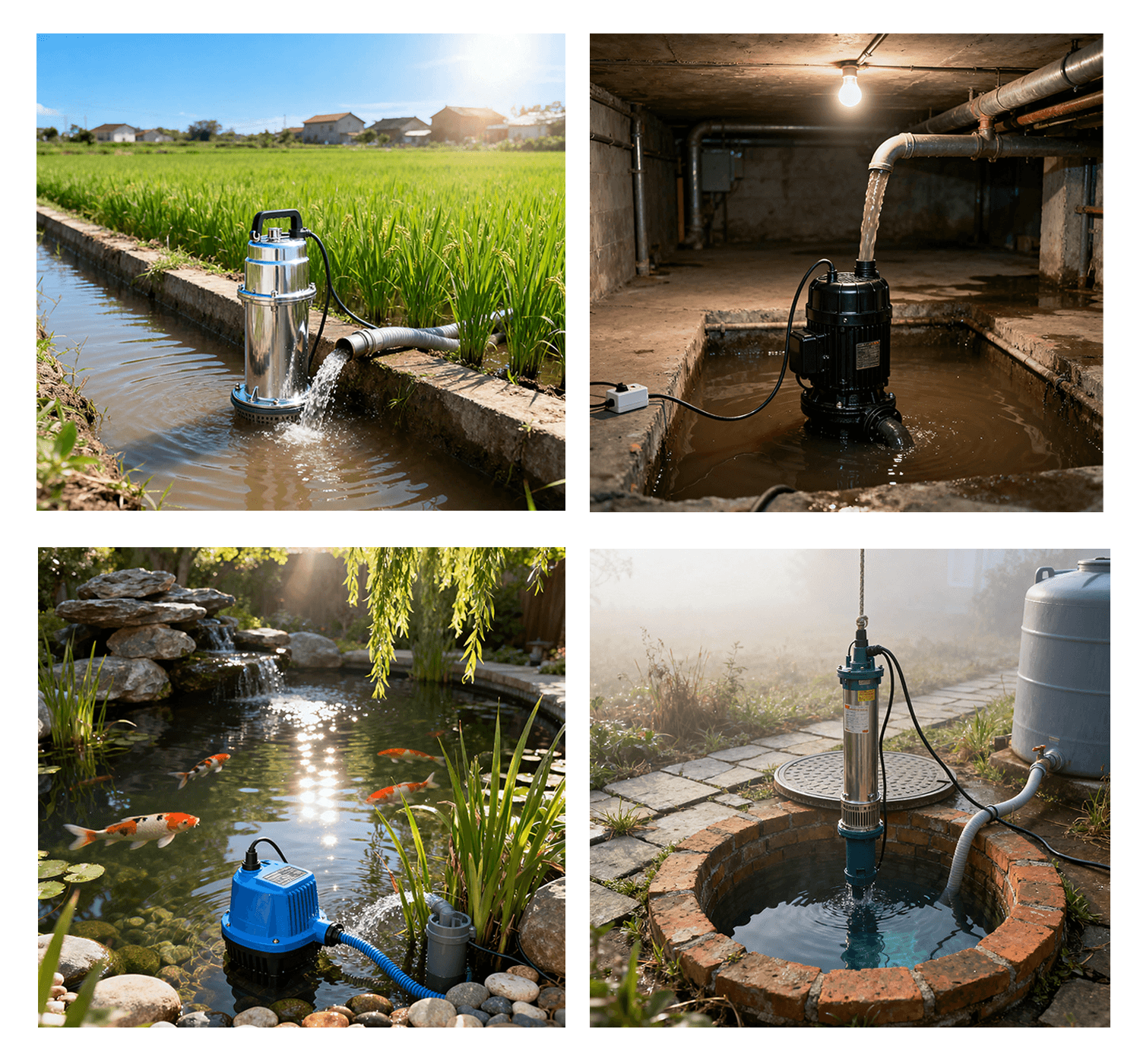

Application
The pump is vastly used in high-position water delivery, flush and places as construction sites.

The 3-phase motor pump has a more stable fuction.

The float switch can automatically control on and off with the change of the liquor level.

OPERATING LIMITS
Trans medium's pH: 6.5-8.5
Fluid temperature limit: < 40degree
Max ambient temperature: < 40degree
Operating depth: 5m

STRUCTURAL CHARACTERISTICS
Insulation Class: E
Protection Class: IP68

Installation and application
SPA sewage submersible pump is used in industrial,mining and artichectural operations.
SPA is composed with pump body,mechanical seal and motor. The pump is made of hard-alloy.It is used mechanical seal between pump body and motor for well sealed.
The series pumps are equipped with overload or overheat protection device.

Operation condition
Max. temperature of liquid:+40degree
Max.temperature of ambient: +40degree
Submersible depth:15m
Max.Working pressure:14bar

Technical Data

Model	Flow Rate	Head	Power		Outlet
Model	m³/h	M	KW	HP	('')
SPA6-28/2-1.1	6	28	1.1	1.5	2''
SPA6-39/3-1.5	6	39	1.5	2	2''
SPA6-52/4-2.2	6	52	2.2	3	2''
SPA10-45/4-1.1	10	45	1.1	1.5	2''
SPA10-55/5-1.5	10	55	1.5	2	2''
SPA10-70/6-2.2	10	70	2.2	3	2''
SPA10-80/7-3	10	80	3	4	2''
