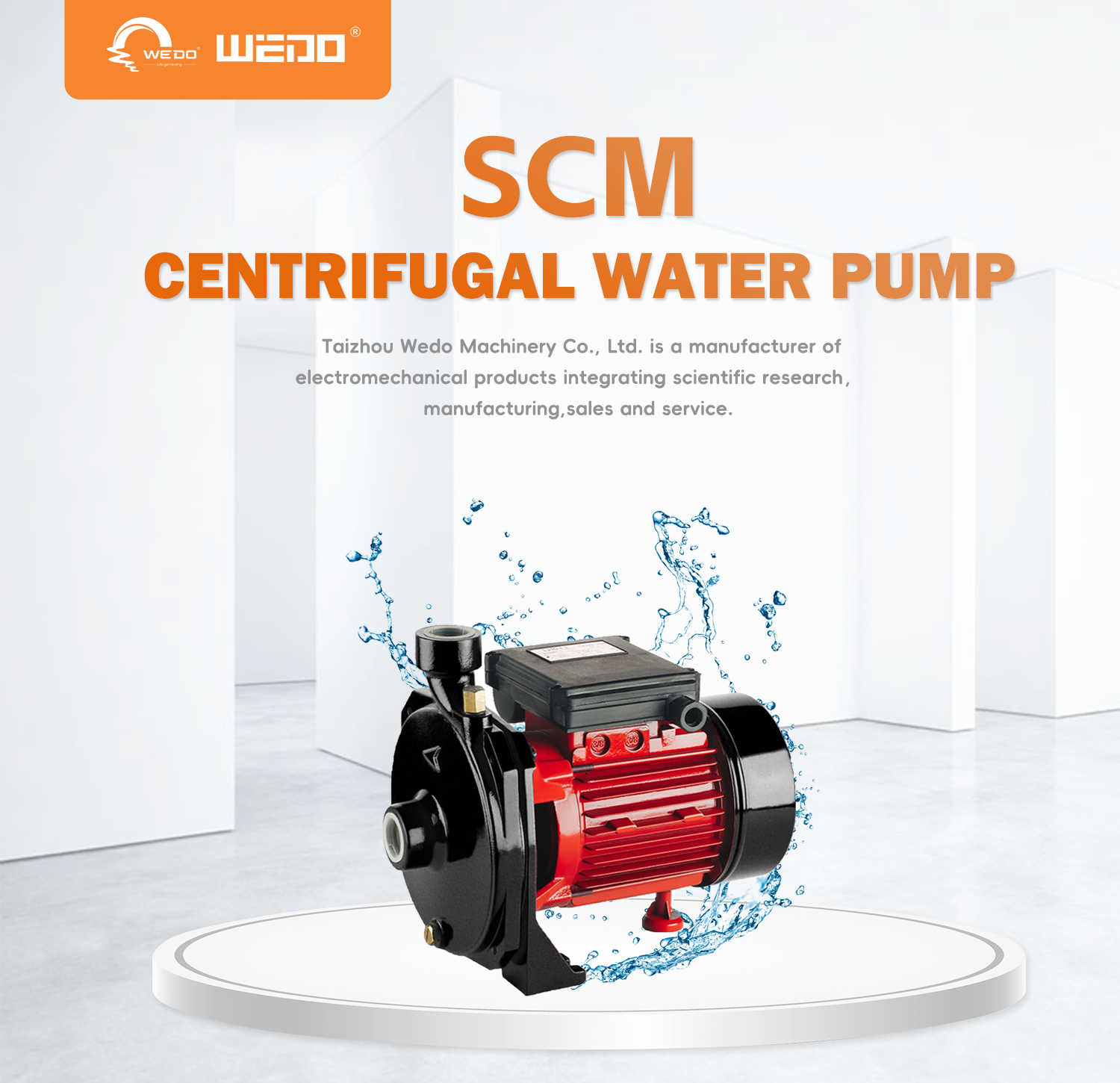

SCM Centrifugal Pump

These pumps are suitable for handing clean water not containing abrasive particles and fluids which are not chemicallay aggressive to the pump components.

They are extremely reliable, simple to use, quiet and virtually maintence-free, finding many uses in domestic and civil applications, and in particular the automatic distribution of water from small and medium-sized surge tanks, transferring water, watering gardens, etc.

PERFORMANCE RANGE

Flow rate up to 120L/min.(7.2m³/h)
Head up to 35m

OPERATING LIMITS

 Fluid temperature up to 60º C
Maximum ambient temperature 40º C
Total suction lift up to 8 m.

MOTOR AND PUMP

Rewindable motor
Three-phase: 380V-415V, Single-phase: 220V-240
Insulation: Class B
Protection: IP44

STANDARD DATA AND EQUIPMENT

Single phase 220V/50Hz. Brass impeller, caebon steel motor shaft, with thermal protector inside.

Other model and material such as three phase, 110v, 60Hz, dual voltage, stainless shaft, etc, will be available upon request.

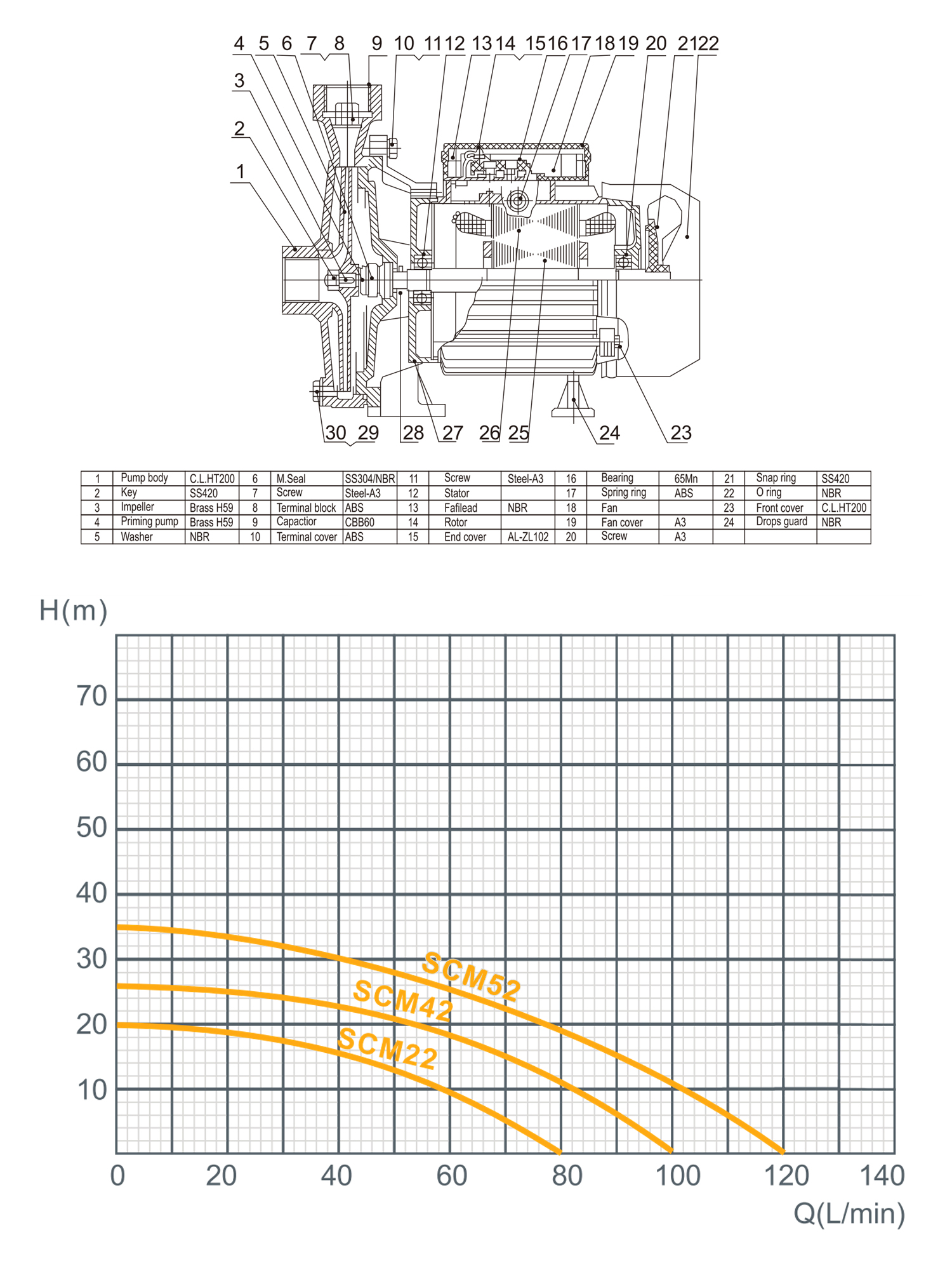

TECHNICAL DATA
