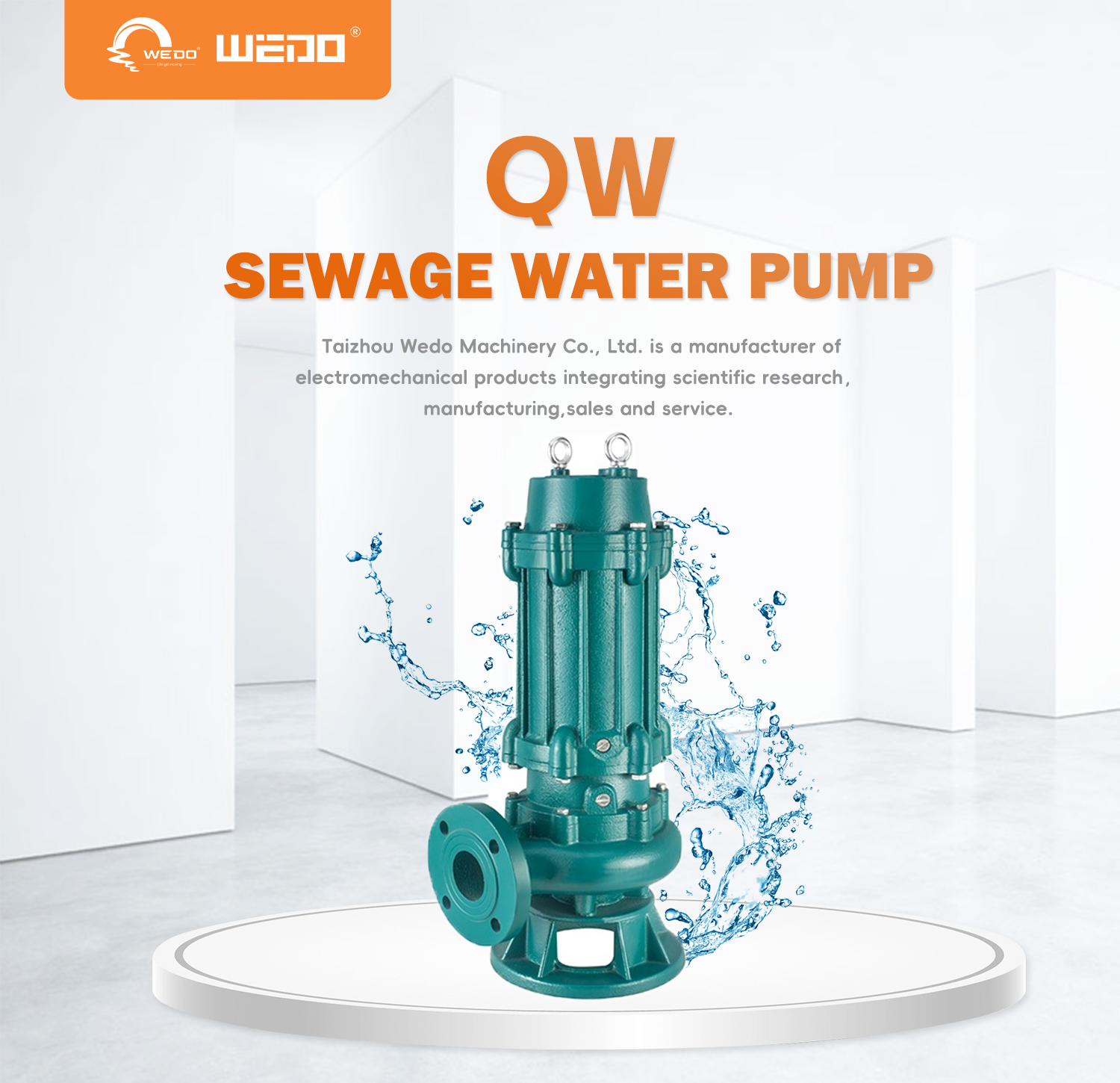

QW sewage Submersible pump

QW

Quantity:

Contact Now

add to cart

QW series sewage water Submersible pump solid waste

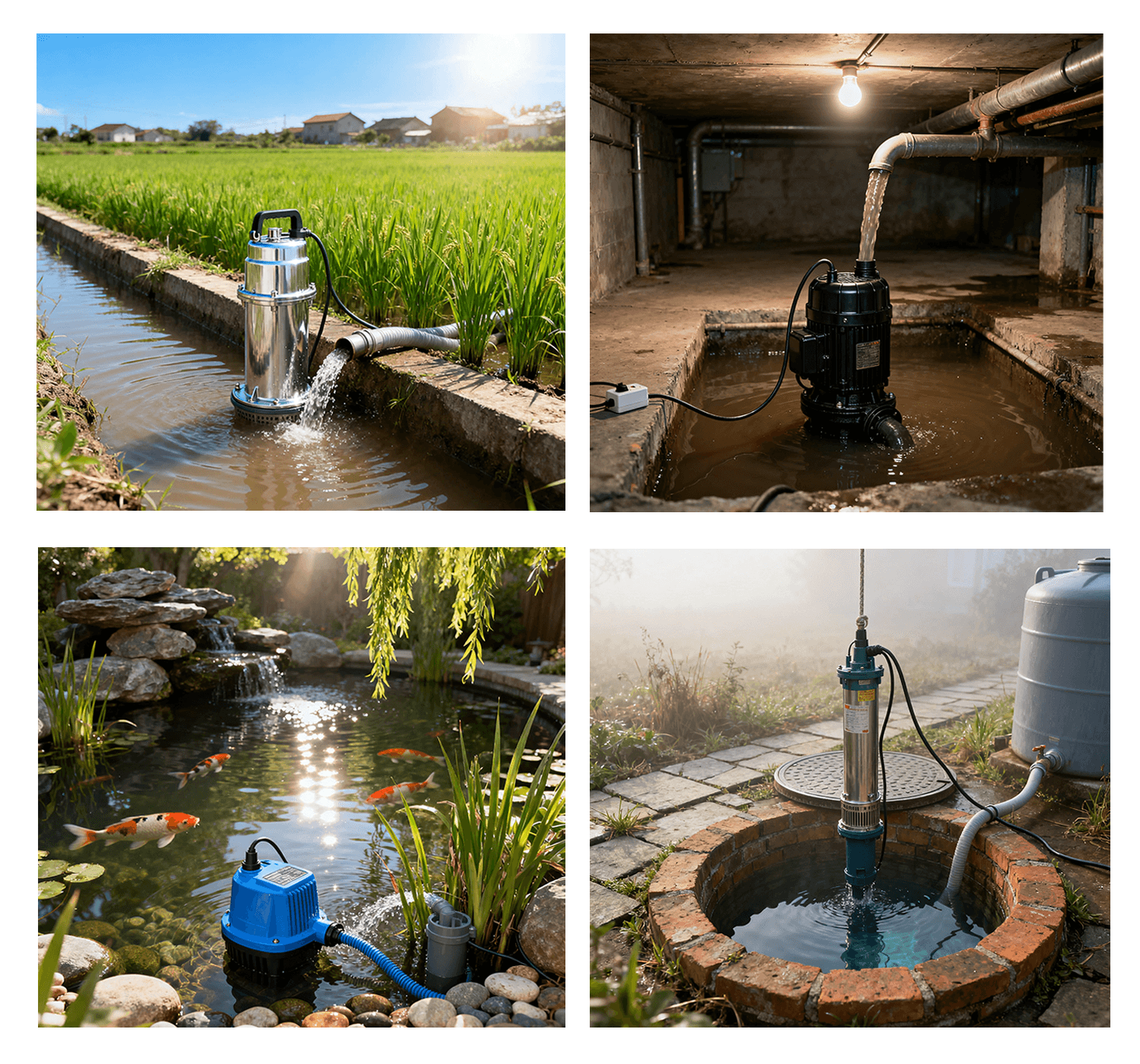

Application

For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irrigation.

OPERATING CONDITIONS
Maximum fluid temperature up to +40ºC.
Maximum sand content:0.25%.

MOTOR AND PUMP
Rewindable motor
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz

OPTIONS ON REQUEST
Special mechanical seal
Other voltages or frequency 60 Hz

Warranty:1 year
(according to our general sales conditions).

TECHNICAL DATA

Model	Capacity	Head	Power	Voltage	Speed	Pipesize
Model	(m³/h)	(m)	(KW)	(V)	(r/min)	(mm)
65QW30-40-7.5	30	40	7.5	380	2900	65
65QW35-50-11	35	50	11	380	2900	65
65QW35-60-15	35	60	15	380	2900	65
80QW65-25-7.5	65	25	7.5	380	2900	80
100QW80-20-7.5	80	20	7.5	380	1450	100
150QW100-15-7.5	100	15	7.5	380	1450	150
100QW100-25-11	100	25	11	380	1450	100
100QW100-30-15	100	30	15	380	1450	100
100QW100-35-18.5	100	35	18.5	380	1450	100
125QW130-15-11	130	15	11	380	1450	125
125QW130-20-15	130	20	15	380	1450	125
150QW130-20-11	130	20	11	380	1450	150
150QW130-30-22	130	30	22	380	1450	150
150QW145-9-7.5	145	9	7.5	380	1450	150
150QW160-45-37	160	45	37	380	1450	150
150QW180-15-15	180	15	15	380	1450	150
150QW180-20-18.5	180	20	18.5	380	1450	150
150QW180-25-22	180	25	22	380	1450	150
150QW180-30-30	180	30	30	380	1450	150
150QW200-30-37	200	30	37	380	1450	150
200QW250-11-15	250	11	15	380	980	200
200QW250-15-18.5	250	15	18.5	380	1450	200
200QW250-22-30	250	22	30	380	1450	200
200QW300-7-11	300	7	11	380	980	200
200QW300-15-22	300	15	22	380	1450	200
200QW350-25-37	350	25	37	380	1450	200
200QW350-40-75	350	40	75	380	1450	200
200QW380-28-45	380	28	45	380	1450	200
200QW400-10-22	400	10	22	380	1450	200
200QW400-13-30	400	13	30	380	1450	200
200QW400-30-55	400	30	55	380	1450	200
200QW600-9-30	600	9	30	380	980	200
250QW600-12-37	600	12	37	380	1450	250
250QW600-15-45	600	15	45	380	1450	250
250QW600-20-55	600	20	55	380	1450	250
250QW600-25-75	600	25	75	380	1450	250
300QW500-15-45	500	15	45	380	980	300
300QW600-20-55	600	20	55	380	980	300
300QW800-12-45	800	12	45	380	980	300
300QW800-15-55	800	15	55	380	980	300
300QW800-20-75	800	20	75	380	980	300
300QW800-32-110	800	32	110	380	1450	300
300QW800-44-160	800	44	160	380	980	300
300QW950-20-90	950	20	90	380	980	300
350QW1000-25-110	1000	25	110	380	980	350
350QW1000-36-160	1000	36	160	380	740	350
350QW1100-10-55	1100	10	55	380	980	350
350QW1100-28-132	1100	28	132	380	740	350
350QW1200-18-90	1200	18	90	380	980	350
350QW1500-15-90	1500	15	90	380	980	350
400QW1500-10-75	1500	10	75	380	980	400
400QW1500-26-160	1500	26	160	380	740	400
400QW1700-22-160	1700	22	160	380	740	400
400QW1700-30-200	1700	30	200	380	740	400
400QW1760-7.5-55	1760	7.5	55	380	580	400
400QW2000-15-132	2000	15	132	380	740	400
400QW2200-9-110	2200	9	110	380	980	400
400QW1800-32-250	1800	32	250	380	740	400
500QW2600-15-160	2600	15	160	380	740	500
500QW2500-22-220	2500	22	220	380	740	500
500QW2500-10-110	2500	10	110	380	740	500
500QW2600-24-250	2600	24	250	380	740	500
500QW3000-15-200	3000	15	200	380	740	500
500QW4000-15-250	4000	15	250	380	980	500
500QW4200-10-260	4200	10	260	380	980	500
450QW3000-15-280	3000	15	280	380	980	450
