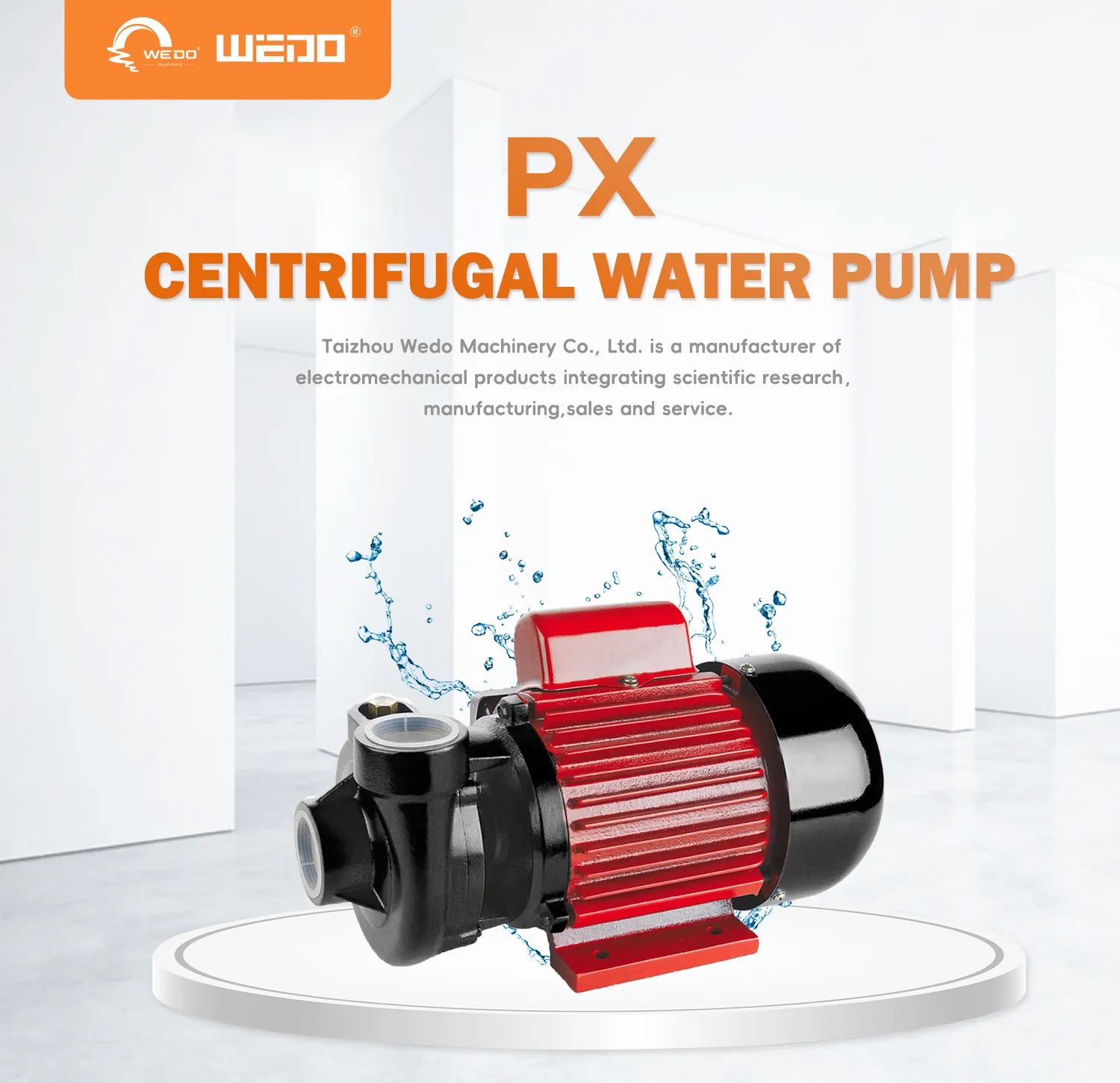

PX Centrifugal Pump

PX

Delivery:

FOB

Supply Ability:

10000piece / Day

Country of Origin:

Taizhou, China

Quantity:

Contact Now

add to cart

PX series are single stage centrifugal pumps, it is suitable for agriculture and industrial applications tp convery clean liquics and non-aggressive chemical fluids.

It's hydraulic characteristic is lower head but bigger capacity.

STANDARD DATA AND EQUIPMENT

Single phase 220V/50Hz. Brass impeller, carbon steel motor shaft,

with thermal protector inside, 110V, 60Hz, dual voltage, stainless shaft,etc, will be available upon request.

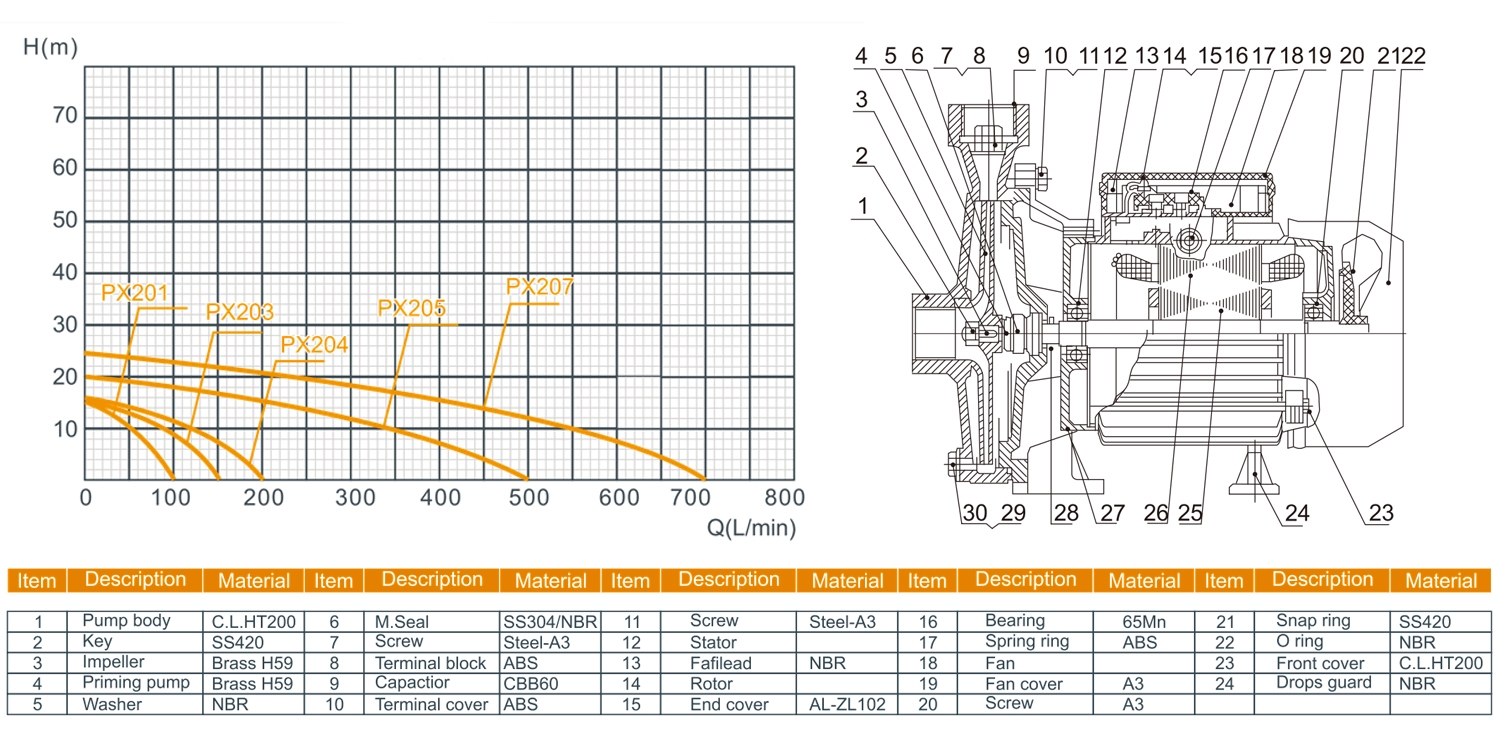

MODEL	POWER		Max.Flow	Max.Head
MODEL	KW	HP	M³/H	M
PX-201	0.55	0.6	16	105
PX-203	0.75	1	16	180
PX-204	1.1	1.5	16	230
PX-205	1.5	2	18	310
PX-207	2.2	3	20	800

attribute

Place of Origin：

China,Taizhou

Brand Name：

WEDO

Model Number：

PX

Theory：

Centrifugal Pump

Structure：

Single-stage Pump

Usage：

Water

Power：

Electric

Standard or Nonstandard：

Standard

Fuel：

Other

Pressure：

High Pressure

Application：

Other
