vertical multistage centrifugal pump

CDL(F) Multistage Centrifugal Water Pump

CDLF
Delivery:
FOB
Supply Ability:
10000piece / Day
Country of Origin:
TAIZHOU, CHINA
Quantity:
Contact Now
add to cart

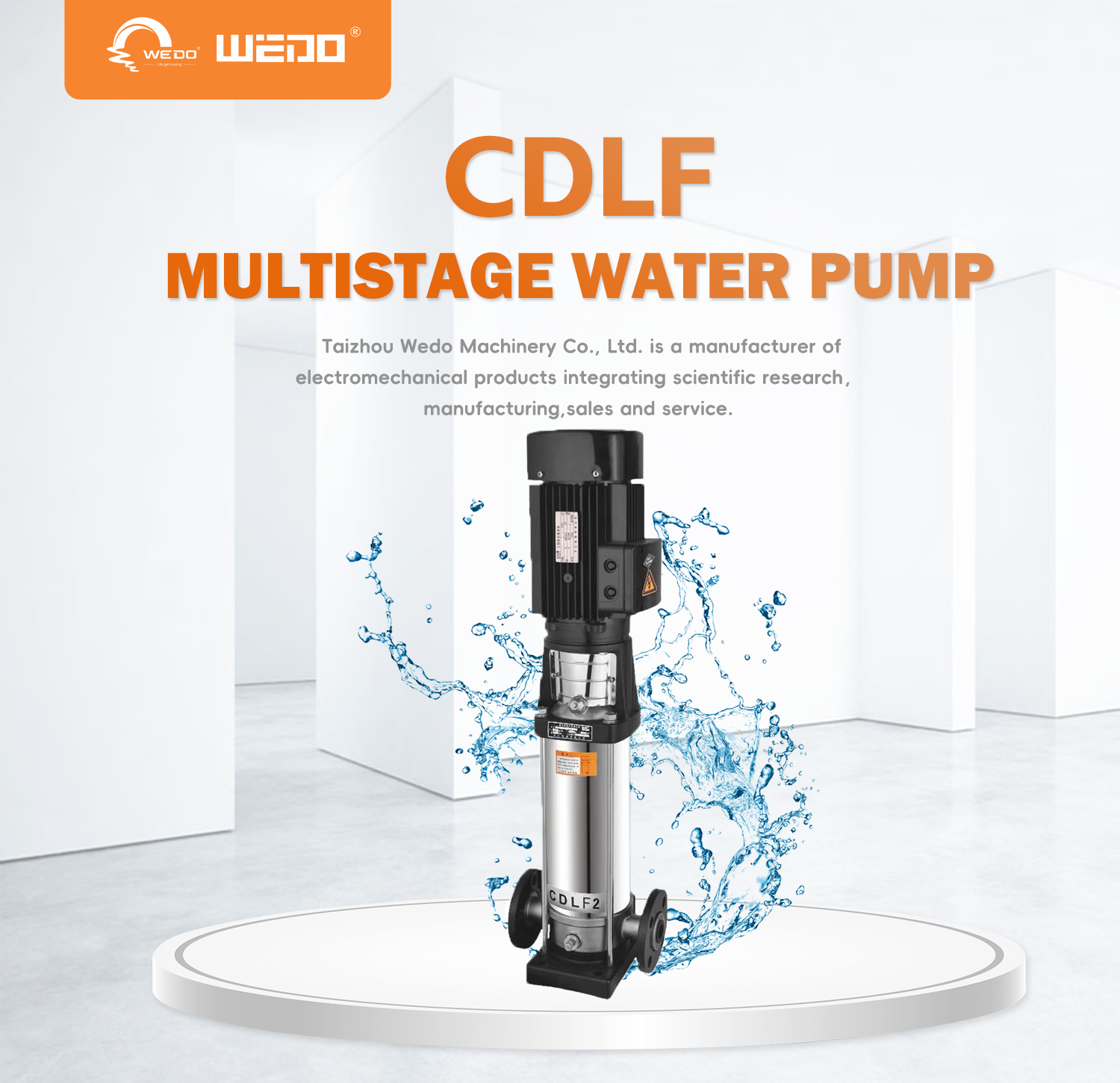

CDLF Multistage Agricultural Vertical Centrifugal Water Pump


CDLF/CDL light vertical multistage centrifugal pump is non-self suction vertical multistage centrifugal pump which designed and made by the advanced technology at home and abroad,

appled with standard vertical electric motor and quick assembling mechanical seal, it is very convenient to replace.

The material for the flow part of the pump is made of S.S 304, applied to mild corrosive medium.

Main characteristic is high efficiency & energy saving, reliable quality, widely used, loved by the majority users.

Transportation medium
1.Thin, clean,non inflammable and exposive medium without solid particles and fobres.
2. For instance, mineral water ,softened water,pure water, clean oil and other light chemical industrial medium.
3.Main material for pump is S.S., could be used to pump light corrosive medium.


Electric motor
Motor with full closed,wond-cooled dipolar standard motor
protection class: IP55
Insulation class: F
Standard voltage: 50HZ: 1X220-230/240V
                            3X200-220/346-380V
                            3X220-240/380-415V
             3X380-415V
Technical Data

CDL(F)1 Series

Model DN25

Power
（kw）

Flow

Head

m3/h

m

CDL(F) 1-2

0.37

1

11.5

CDL(F) 1-3

0.37

1

17

CDL(F) 1-4

0.37

1

22.5

CDL(F) 1-5

0.37

1

28

CDL(F) 1-6

0.37

1

33.5

CDL(F) 1-7

0.37

1

39

CDL(F) 1-8

0.55

1

45

CDL(F) 1-9

0.55

1

51

CDL(F) 1-10

0.55

1

57

CDL(F) 1-11

0.55

1

61

CDL(F) 1-12

0.75

1

67

CDL(F) 1-13

0.75

1

73

CDL(F) 1-14

0.75

1

78

CDL(F) 1-15

0.75

1

84

CDL(F) 1-16

1.1

1

89

CDL(F) 1-17

1.1

1

95

CDL(F) 1-18

1.1

1

100

CDL(F) 1-19

1.1

1

106

CDL(F) 1-20

1.1

1

111

CDL(F) 1-21

1.1

1

117

CDL(F) 1-22

1.1

1

122

CDL(F) 1-23

1.1

1

128

CDL(F) 1-24

1.5

1

133

CDL(F) 1-25

1.5

1

139

CDL(F) 1-26

1.5

1

144

CDL(F) 1-27

1.5

1

150

CDL(F) 1-28

1.5

1

155

CDL(F) 1-29

1.5

1

160

CDL(F) 1-30

1.5

1

166

CDL(F) 1-31

2.2

1

172

CDL(F) 1-32

2.2

1

178

CDL(F) 1-33

2.2

1

183

CDL(F) 1-34

2.2

1

189

CDL(F) 1-35

2.2

1

194

CDL(F) 1-36

2.2

1

200

CDL(F)2 Series

Model DN25

Power
（kw）

Flow

Head

m3/h

m

CDL(F) 2-2

0.37

2

15

CDL(F) 2-3

0.37

2

22

CDL(F) 2-4

0.55

2

30

CDL(F) 2-5

0.55

2

37

CDL(F) 2-6

0.75

2

45

CDL(F) 2-7

0.75

2

52

CDL(F) 2-9

1.1

2

67

CDL(F) 2-11

1.1

2

82

CDL(F) 2-13

1.5

2

98

CDL(F) 2-15

1.5

2

112

CDL(F) 2-18

2.2

2

136

CDL(F) 2-22

2.2

2

165

CDL(F) 2-26

3

2

198

CDL(F)3 Series

Model DN25

Power
（kw）

Flow

Head

m3/h

m

CDL(F) 3-2

0.37

3

9

CDL(F) 3-3

0.37

3

14

CDL(F) 3-4

0.37

3

19

CDL(F) 3-5

0.37

3

23

CDL(F) 3-6

0.55

3

28

CDL(F) 3-7

0.55

3

32

CDL(F) 3-8

0.75

3

37

CDL(F) 3-9

0.75

3

42

CDL(F) 3-10

0.75

3

47

CDL(F) 3-11

1.1

3

51

CDL(F) 3-12

1.1

3

55

CDL(F) 3-13

1.1

3

60

CDL(F) 3-14

1.1

3

64

CDL(F) 3-15

1.1

3

69

CDL(F) 3-16

1.5

3

74

CDL(F) 3-17

1.5

3

79

CDL(F) 3-18

1.5

3

83

CDL(F) 3-19

1.5

3

88

CDL(F) 3-20

2.2

3

93

CDL(F) 3-21

2.2

3

98

CDL(F) 3-22

2.2

3

102

CDL(F) 3-23

2.2

3

107

CDL(F) 3-24

2.2

3

111

CDL(F) 3-25

2.2

3

116

CDL(F) 3-26

2.2

3

120

CDL(F) 3-27

2.2

3

124

CDL(F) 3-28

2.2

3

128

CDL(F) 3-29

2.2

3

133

CDL(F) 3-30

3

3

137

CDL(F) 3-31

3

3

142

CDL(F) 3-32

3

3

146

CDL(F) 3-33

3

3

151

CDL(F) 3-34

3

3

157

CDL(F) 3-35

3

3

163

CDL(F) 3-36

3

3

168

CDL(F)4 Series

Model DN25

Power
（kw）

Flow

Head

m3/h

m

CDL(F) 4-2

0.37

4

15

CDL(F) 4-3

0.55

4

24

CDL(F) 4-4

0.75

4

32

CDL(F) 4-5

1.1

4

40

CDL(F) 4-6

1.1

4

48

CDL(F) 4-7

1.5

4

56

CDL(F) 4-8

1.5

4

64

CDL(F) 4-10

2.2

4

81

CDL(F) 4-12

2.2

4

95

CDL(F) 4-14

3

4

112

CDL(F) 4-16

3

4

129

CDL(F) 4-19

4

4

153

CDL(F) 4-22

4

4

178

CDL(F)8 Series

Model DN40

Power
（kw）

Flow

Head

m3/h

m

CDL(F) 8-2

0.75

8

18

CDL(F) 8-3

1.1

8

27

CDL(F) 8-4

1.5

8

36

CDL(F) 8-5

2.2

8

45

CDL(F) 8-6

2.2

8

54

CDL(F) 8-7

3

8

63

CDL(F) 8-8

3

8

73

CDL(F) 8-10

4

8

92

CDL(F) 8-12

4

8

111

CDL(F) 8-14

5.5

8

130

CDL(F) 8-16

5.5

8

148

CDL(F) 8-18

7.5

8

167

CDL(F) 8-20

7.5

8

186

CDL(F)12 Series

Model DN50

Power
（kw）

Flow

Head

m3/h

m

CDL(F)12-2

1.5

12

20

CDL(F)12-3

2.2

12

30

CDL(F)12-4

3

12

40

CDL(F)12-5

3

12

50

CDL(F)12-6

4

12

60

CDL(F)12-7

5.5

12

70

CDL(F)12-8

5.5

12

80

CDL(F)12-9

5.5

12

91

CDL(F)12-10

7.5

12

101

CDL(F)12-12

7.5

12

121

CDL(F)12-14

11

12

141

CDL(F)12-16

11

12

162

CDL(F)12-18

11

12

183

CDL(F)16 Series

Model DN50

Power
（kw）

Flow

Head

m3/h

m

CDL(F) 16-2

2.2

16

22

CDL(F) 16-3

3

16

34

CDL(F) 16-4

4

16

46

CDL(F) 16-5

5.5

16

58

CDL(F) 16-6

5.5

16

70

CDL(F) 16-7

7.5

16

82

CDL(F) 16-8

7.5

16

94

CDL(F) 16-10

11

16

118

CDL(F) 16-12

11

16

141

CDL(F) 16-14

15

16

166

CDL(F) 16-16

15

16

189

CDL(F)20 Series

Model DN50

Power
（kw）

Flow

Head

m3/h

m

CDL(F)20-2

2.2

20

23

CDL(F)20-3

4

20

35

CDL(F)20-4

5.5

20

47

CDL(F)20-5

5.5

20

58

CDL(F)20-6

7.5

20

70

CDL(F)20-7

7.5

20

82

CDL(F)20-8

11

20

94

CDL(F)20-10

11

20

118

CDL(F)20-12

15

20

142

CDL(F)20-14

15

20

166

CDL(F)20-16

18.5

20

189

CDL(F)20-17

18.5

20

202

CDL(F)32 Series

Model DN65

Power
（kw）

Flow

Head

m3/h

m

CDL(F) 32-10-1

1.5

32

9

CDL(F) 32-10

2.2

32

13

CDL(F) 32-20-2

3

32

20

CDL(F) 32-20

4

32

27

CDL(F) 32-30-2

5.5

32

33

CDL(F) 32-30

5.5

32

40

CDL(F) 32-40-2

7.5

32

46

CDL(F) 32-40

7.5

32

53

CDL(F) 32-50-2

11

32

60

CDL(F) 32-50

11

32

67

CDL(F) 32-60-2

11

32

74

CDL(F) 32-60

11

32

81

CDL(F) 32-70-2

15

32

88

CDL(F) 32-70

15

32

95

CDL(F) 32-80-2

15

32

102

CDL(F) 32-80

15

32

109

CDL(F) 32-90-2

18.5

32

117

CDL(F) 32-90

18.5

32

124

CDL(F) 32-100-2

18.5

32

131

CDL(F) 32-100

18.5

32

138

CDL(F) 32-110-2

22

32

146

CDL(F) 32-110

22

32

153

CDL(F) 32-120-2

22

32

160

CDL(F) 32-120

22

32

167

CDL(F) 32-130-2

30

32

174

CDL(F) 32-130

30

32

181

CDL(F) 32-140-2

30

32

189

CDL(F) 32-140

30

32

196

CDL(F)32-150-2

30

32

203

CDL(F)32-150

30

32

210

CDL(F)32-160-2

30

32

218

CDL(F)32-160

30

32

225

CDL(F)45 Series

Model DN80

Power
（kw）

Flow

Head

m3/h

m

CDL(F)45-10-1

3

45

15

CDL(F)45-10

4

45

19

CDL(F)45-20-2

5.5

45

30

CDL(F)45-20

7.5

45

39

CDL(F)45-30-2

11

45

50

CDL(F)45-30

11

45

58

CDL(F)45-40-2

15

45

69

CDL(F)45-40

15

45

78

CDL(F)45-50-2

18.5

45

88

CDL(F)45-50

18.5

45

97

CDL(F)45-60-2

22

45

108

CDL(F)45-60

22

45

116

CDL(F)45-70-2

30

45

127

CDL(F)45-70

30

45

135

CDL(F)45-80-2

30

45

146

CDL(F)45-80

30

45

154

CDL(F)45-90-2

30

45

166

CDL(F)45-90

37

45

174

CDL(F)45-100-2

37

45

185

CDL(F)45-100

37

45

193

CDL(F)45-110-2

45

45

206

CDL(F)45-110

45

45

214

CDL(F)45-120-2

45

45

226

CDL(F)45-120

45

45

236

CDL(F)45-130-2

45

45

247

CDL(F)64 Series

Model DN80

Power
（kw）

Flow

Head

m3/h

m

CDL(F)64-10-1

4

64

13

CDL(F)64-10

5.5

64

20

CDL(F)64-20-2

7.5

64

26

CDL(F)64-20-1

11

64

33

CDL(F)64-20

11

64

40

CDL(F)64-30-2

15

64

46

CDL(F)64-30-1

15

64

53

CDL(F)64-30

18.5

64

60

CDL(F)64-40-2

18.5

64

66

CDL(F)64-40-1

22

64

73

CDL(F)64-40

22

64

80

CDL(F)64-50-2

30

64

88

CDL(F)64-50-1

30

64

95

CDL(F)64-50

30

64

102

CDL(F)64-60-2

30

64

110

CDL(F)64-60-1

37

64

117

CDL(F)64-60

37

64

124

CDL(F)64-70-2

37

64

132

CDL(F)64-70-1

37

64

139

CDL(F)64-70

45

64

146

CDL(F)64-80-2

45

64

154

CDL(F)64-80-1

45

64

161

CDL(F)90 Series

Model DN100

Power
（kw）

Flow

Head

m3/h

m

CDL(F)90-10-1

5.5

90

13

CDL(F)90-10

7.5

90

19

CDL(F)90-20-2

11

90

28

CDL(F)90-20

15

90

40

CDL(F)90-30-2

18.5

90

49

CDL(F)90-30

22

90

62

CDL(F)90-40-2

30

90

72

CDL(F)90-40

30

90

84

CDL(F)90-50-2

37

90

93

CDL(F)90-50

37

90

106

CDL(F)90-60-2

45

90

117

CDL(F)90-60

45

90

130

CDL(F)120 Series

Model DN125

Power
（kw）

Flow

Head

m3/h

m

CDL(F)120-10

11

120

18.5

CDL(F)120-20-2

15

120

28.5

CDL(F)120-20-1

18.5

120

34.5

CDL(F)120-20

22

120

40

CDL(F)120-30-2

30

120

49

CDL(F)120-30-1

30

120

55.5

CDL(F)120-30

30

120

61

CDL(F)120-40-2

37

120

69

CDL(F)120-40-1

37

120

76

CDL(F)120-40

45

120

81

CDL(F)120-50-2

45

120

90

CDL(F)120-50-1

45

120

97

CDL(F)120-50

55

120

101.5

CDL(F)120-60-2

55

120

110

CDL(F)120-60-1

55

120

118

CDL(F)120-60

75

120

123

CDL(F)120-70-2

75

120

130

CDL(F)120-70-1

75

120

137.5

CDL(F)120-70

75

120

145

CDL(F)150 Series

Model DN125

Power
（kw）

Flow

Head

m3/h

m

CDL(F)150-10-1

11

150

12.5

CDL(F)150-10

15

150

18.5

CDL(F)150-20-2

18.5

150

27.5

CDL(F)150-20-1

22

150

35

CDL(F)150-20

30

150

40

CDL(F)150-30-2

30

150

49

CDL(F)150-30-1

37

150

56

CDL(F)150-30

37

150

63

CDL(F)150-40-2

45

150

70.5

CDL(F)150-40-1

45

150

77

CDL(F)150-40

55

150

84

CDL(F)150-50-2

55

150

92

CDL(F)150-50-1

75

150

99

CDL(F)150-50

75

150

106.5

CDL(F)150-60-2

75

150

112

CDL(F)150-60-1

75

150

120

CDL(F)150-60

75

150

130

CDL(F)200 Series

Model DN150

Power
（kw）

Flow

Head

m3/h

m

CDL(F)200-10-B

18.5

200

20

CDL(F)200-10-A

22

200

24

CDL(F)200-10

30

200

34

CDL(F)200-20-2B

37

200

41

CDL(F)200-20-2A

45

200

49

CDL(F)200-20-A

55

200

59

CDL(F)200-20

55

200

69

CDL(F)200-30-2B

75

200

75

CDL(F)200-30-A-B

75

200

79

CDL(F)200-30-2A

75

200

84

CDL(F)200-30-B

75

200

89

CDL(F)200-30-A

75

200

93

CDL(F)200-30

90

200

103

CDL(F)200-40-2B

90

200

110

CDL(F)200-40-2A

110

200

118

CDL(F)200-40-A

110

200

128

CDL(F)200-40

110

200

138




















Send Message
