WQ(D) Series Submersible Sewage Pump

WQ(D)

Delivery:

FOB

Supply Ability:

10000piece / Day

Country of Origin:

TAIZHOU, CHINA

Quantity:

Contact Now

add to cart

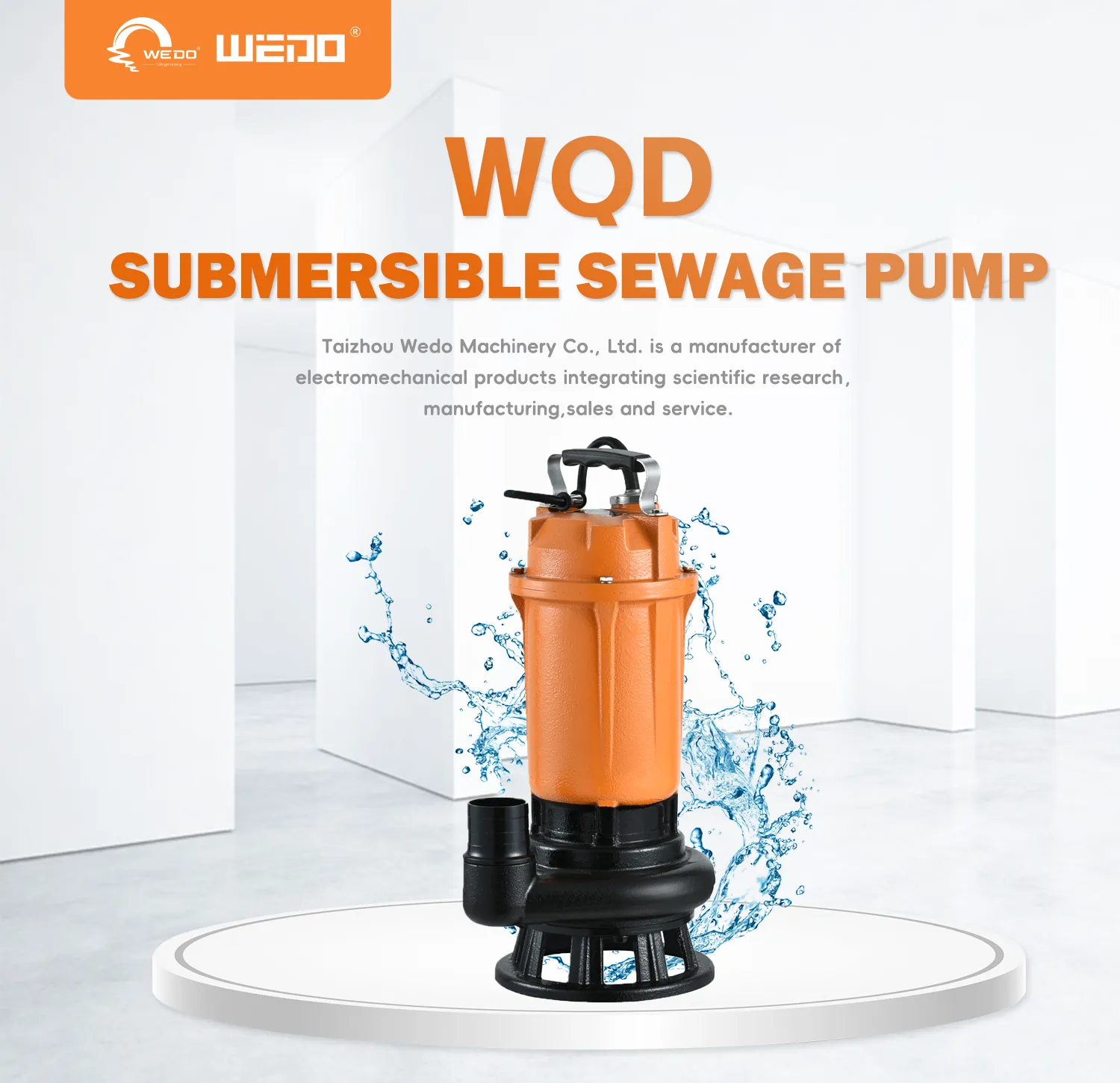

WQD Series Iron Cast Float Switch Submersible Sewage Pump

WQD series pump with open runner impeller, which is specially designed, has super strong capacity.

so, the pump not only won't be blocked because of sucking in solid particle and fiber impurity, but also avoid easily stopping because of sucking inabrasive grain,

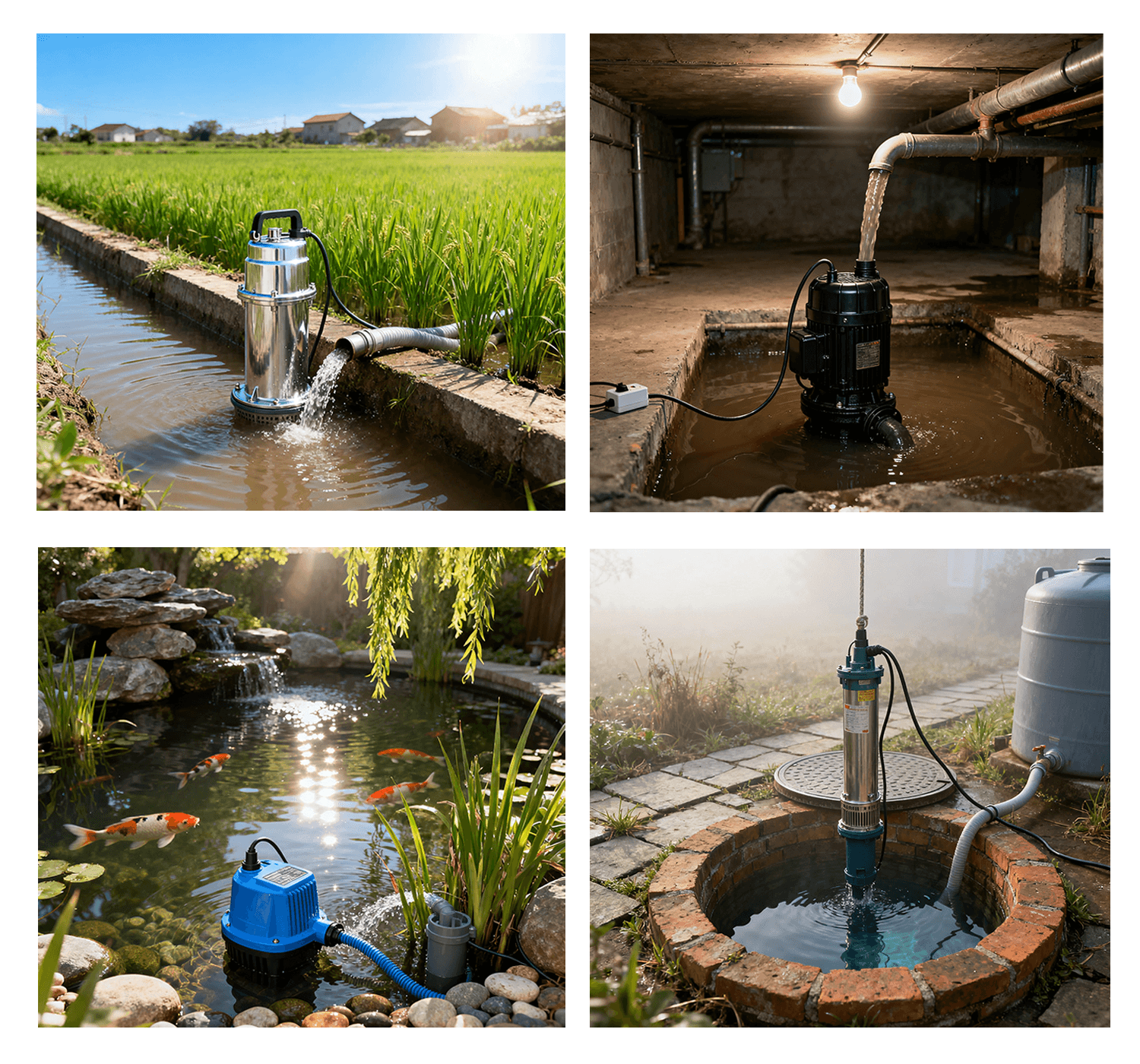

especially used to sewage irrigation, construction site, coal, mine, metallurgy , dying and textile industry, etc. water pump with float ball is an automatic control type,

after water level decines to below submersed surface, float ball will automatically sink, then the pump will stop work,

after water level increase, float ball will increase automatically then the pump begins running,

this protective function prevents motor damege due to dry running of the pump. it saves and needs no tender, very convenient and reasonable for usage

Application
Model V submersible sewage pump series, a branch of single-phase and three phase drainage pumps, will be your ideal drainage hlper,

the letter V which substitutes for the letters WQ incicates the distinct design of the filter and the broadness of the high efficient area.

it can work safely and efficiently at high flux with the feature of complete heads,

the design is designed to a wide tunnel which helps to convey the long fiber liquid or the solid whose diameter is about 15-25mm.

the selection of bottom suction structure, stainless steel and special cast iron made the pump has the capabilities with the change of the liquor lever.

the protector in the motor can automatically cut off the power when it overheated or over currented,

thus guarantee the security and reliability of pump run even in the atocious environment

OPERATING CONDITIONS
The maximum immersion:5m
Maximum fluid temperature up to +40 degree
Trans mediums PH scope:4-10
Kinematic viscosity of the trans medium:7x10-7-23x10-6m2/s
Density of the trans medium limit:12x1000kg/m3

MOTOR AND PUMP
Rewindable motor, full obturated screen motor
Single phase: 220v-240v/50hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed

OPTIONS ON REQUEST
Special mechanical seal
Other voltages or frequency

MAIN TECHNICAL PARAMETER

Model	Power		Volt.	Flow	Head
Model	HP	KW	V	m³/h	m
WQD10-10-0.75	1	0.75	220/380	10	10
WQD10-15-1.1	1.5	1.1	220/380	10	15
WQD15-15-1.5	2	1.5	220/380	15	15
WQD7-15-1.1	1.5	1.1	380	7	15
WQD15-9-1.1	1.5	1.1	380	15	9
WQD25-10-1.5	2	1.5	380	25	10
WQD10-16-1.5	2	1.5	380	10	16
WQD15-15-2.2	3	2.2	380	15	15
WQD9-22-2.2	3	2.2	380	9	22

MODEL	POWER		FLOW	HEAD
MODEL	KW	HF	M³/H	M
50WQ8-11-0.55	0.55	0.75	8	11
50WQ10-12-0.75	0.75	1	10	12
50WQ10-15-1.1	1.1	1.5	10	15
50WQ8-24-1.1	1.1	1.5	8	24
50WQ10-12-0.75	0.75	1	10	12
50WQ10-15-1.1	1.1	1.5	10	15
50WQ8-24-1.1	1.1	1.5	8	24
50WQ15-15-1.5	1.5	2	15	15
50WQ10-34-2.2	2.2	3	10	34
50WQ9-22-2.2			9	22
64WQ25-15-2.2			25	15
75WQ25-15-2.2			40	10
100WQ40-10-2.2			50	7
50WQ12-40-3	3	4	12	40
50WQ15-30-3			15	30
64WQ25-22-3			25	22
75WQ40-14-3			40	14
100WQ60-9-3			60	9
50WQ12-50-4	4	5.5	12	50
50WQ15-35-4			15	35
64WQ25-28-4			25	28
75WQ40-18-4			40	18
100WQ60-14-4			60	14
50WQ12-60-5.5	5.5	7.5	12	60
50WQ-15-45-5.5			15	45
65WQ30-30-5.5			30	30
75WQ40-24-5.5			40	24
100WQ60-18-5.5			60	18
150WQ100-7-5.5			100	7
50WQ12-72-7.5	7.5	10	12	72
75WQ40-30-7.5			40	30
100WQ40-30-7.5			65	22
150WQ100-12-7.5			100	12
150WQ145-9-7.5			145	9
64WQ25-50-11	11	15	25	50
75WQ40-40-11			40	40
100WQ60-30-11			60	30
100WQ80-25-11			80	25
150WQ100-22-11			100	22
150WQ150-12-11			150	12
200WQ200-9-11			200	9
65WQ30-6-15	15	20	30	60
75WQ40-60-15			40	60
100WQ60-40-15			60	40
100WQ8-35-15			80	35
150WQ100-30-15			100	30
150WQ150-20-15			150	20
200WQ220-12-15			220	12
