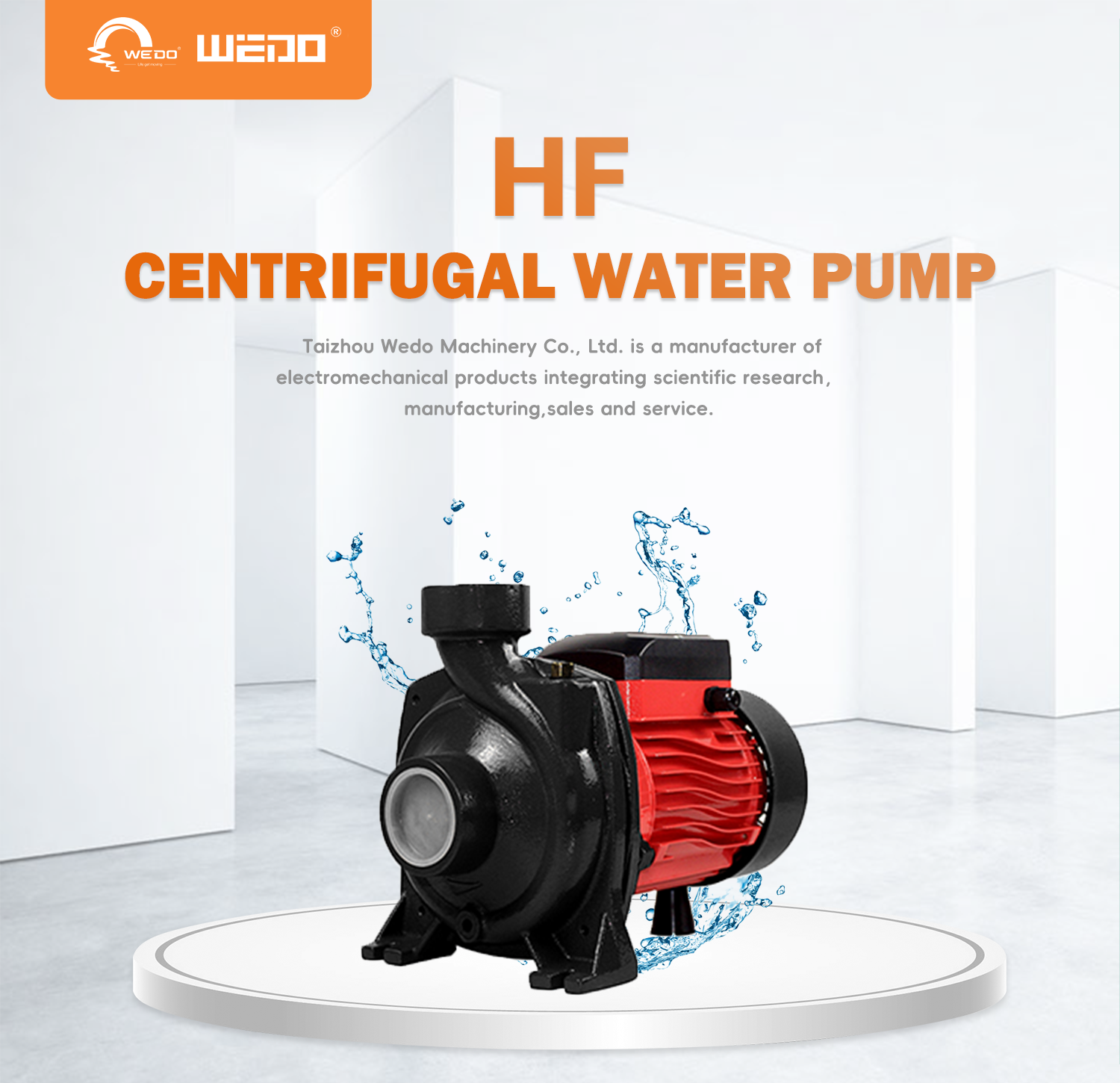

HF Centrifugal Pump

HF

Delivery:

FOB

Supply Ability:

10000piece / Month

Country of Origin:

Tazihou, China

Quantity:

Contact Now

add to cart

HF series are suitable for pumping clean water and fluids which are not chemically aggressive to the pump components .

They are particularly suitable for domesitc,industrial and agriculture uses.

They have a good performance in big capacity and low level head. Reliable ,safe and simple to use.

Application

For water supply from wells or reservoirs.
For domestic use. for civil and industrial applications.
For garden use and irrigation

Operating conditions

Maximum fluid temperature up to +60º C
Maximum ambient temperature up to +40º C
Maximum sand content: 0.25%
Total suction lift up to 8 m.
Continous duty

Motor and pump

Rewindable motor
Three-phase: 380V-415V, Single-phase: 220V-240
Insulation: Class B
Protection: IP44

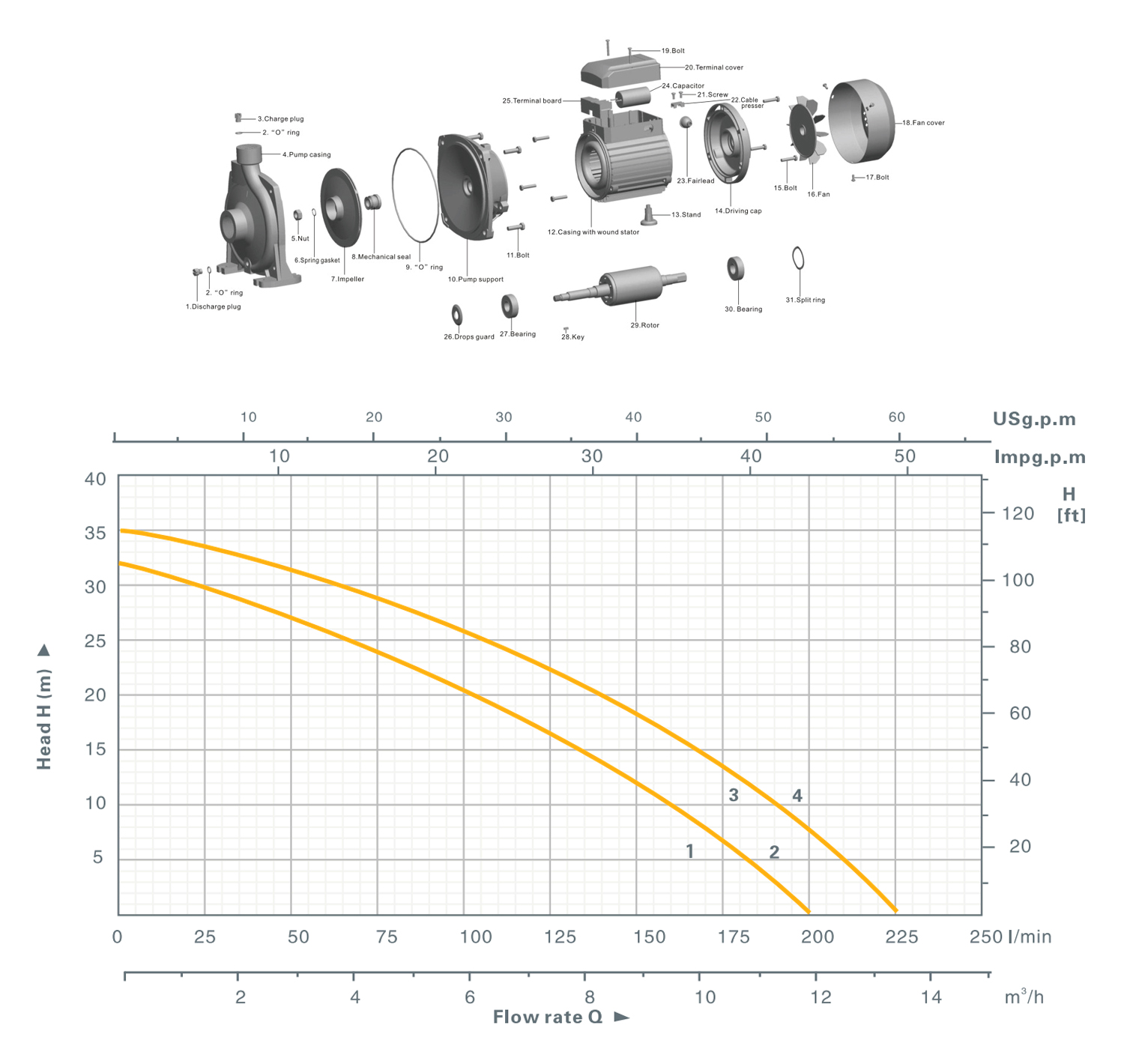

Structural characteristics

Pump body: Cast iron/SS
Front cover: Cast iron
Diffuser: Noryl
Impeller: Brass/PPO
Mechanical seal: Ceramic and graphite
Shaft: 45# steel/stainless steel
Motor case: Aluminum

Warranty: 1 year
(according to our general sales conditions)

TECHNICAL DATA

MODEL	POWER		Max.Flow	Max.Head
MODEL	KW	HP	L/min	M
HF/5C	0.6	0.8	500	12.5
HF/5B	0.75	1	650	13.7
HF/5A	1.1	1.5	650	14.5
HF/5BM	1.1	1.5	600	20.2
HF/5AM	1.5	2	600	22.5
HF/6C	1.1	1.5	1100	11.9
HF/6B	1.5	2	1200	14.7
HF/6A	2.2	3	1300	18.5
HF/6CR	1.1	1.5	1100	11.9
HF/6BR	1.5	2	1200	14.7
HF/6AR	2.2	3	1300	18.5
HF/7BR	3	4	1300	21.8
HF/7AR	4	5.5	2200	18.8
