DTM Centrifugal Pump

DTM

Delivery:

FOB

Supply Ability:

10000piece / Month

Country of Origin:

Tazihou, China

Quantity:

Contact Now

add to cart

These pumps are suitable for handing clean water not containing abrasive to the pump components.

They are extremely reliable, simple to use, quiet and virtually maintence-free, finding many uses in domestic and civil applications,

and in particular the automatic distribution of water from small and medium-sized surge tanks, transferring water, watering gardens,etc.

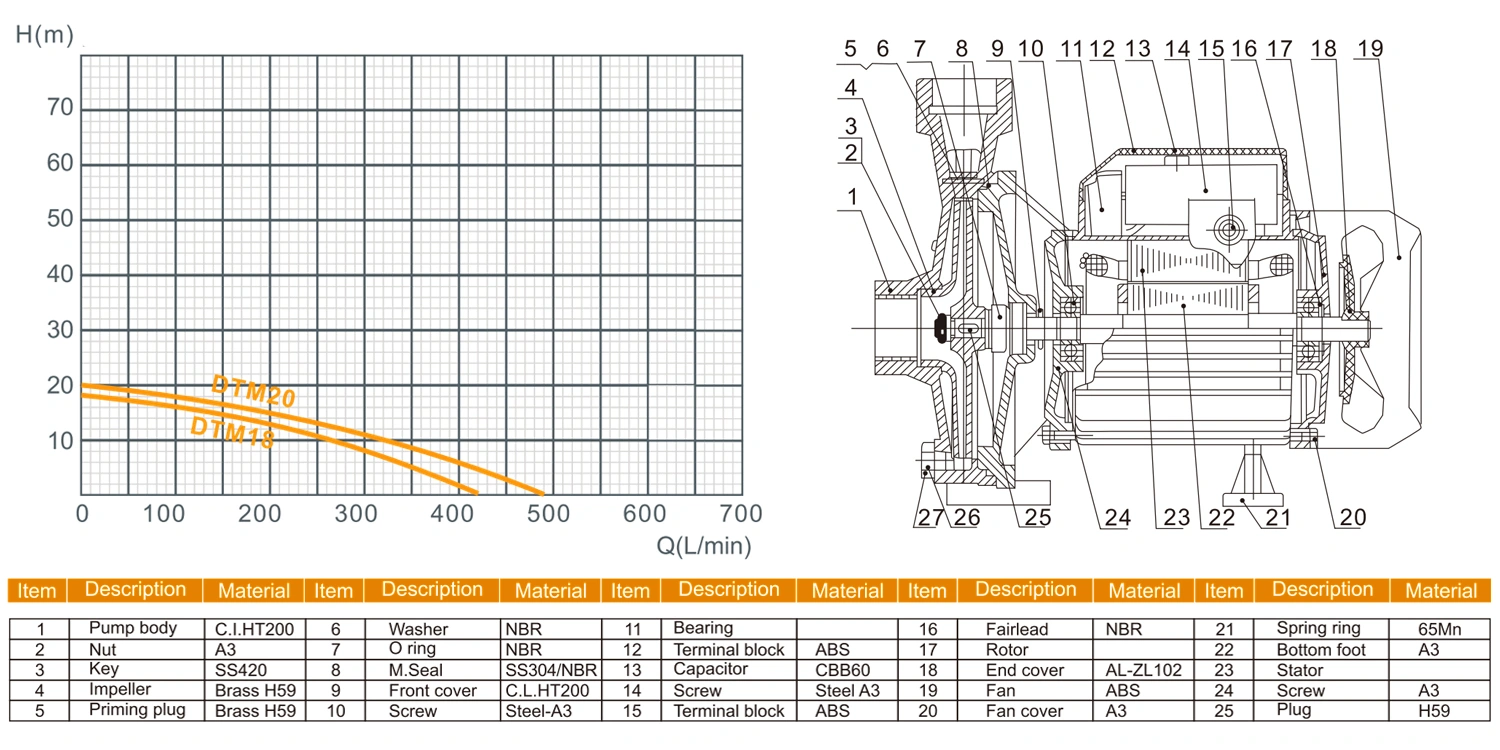

PERFORMANCE RANGE
FLow rate up to 480L/min.(28.8m³/h)

Head up to 20m

OPERATING LIMITS

Fluid temperature up to +60º C
Maximum ambient temperature 40º C
Suction lift up to 9m

STANDARD DATA AND EQUIPMENT

Single phase 220V/50Hz. Brass impeller, carbon steel motor shaft, with thermal protector inside,

110V, 60Hz, dual voltage, stainless shaft, etc, will be available upon request.

TECHNICAL DATA

attribute

Place of Origin：

China

Brand Name：

WEDO

Model Number：

DTM

Theory：

Centrifugal Pump

Structure：

Single-stage Pump

Usage：

Water

Power：

Electric

Standard or Nonstandard：

Standard

Fuel：

Other

Pressure：

High Pressure

Application：

Other
