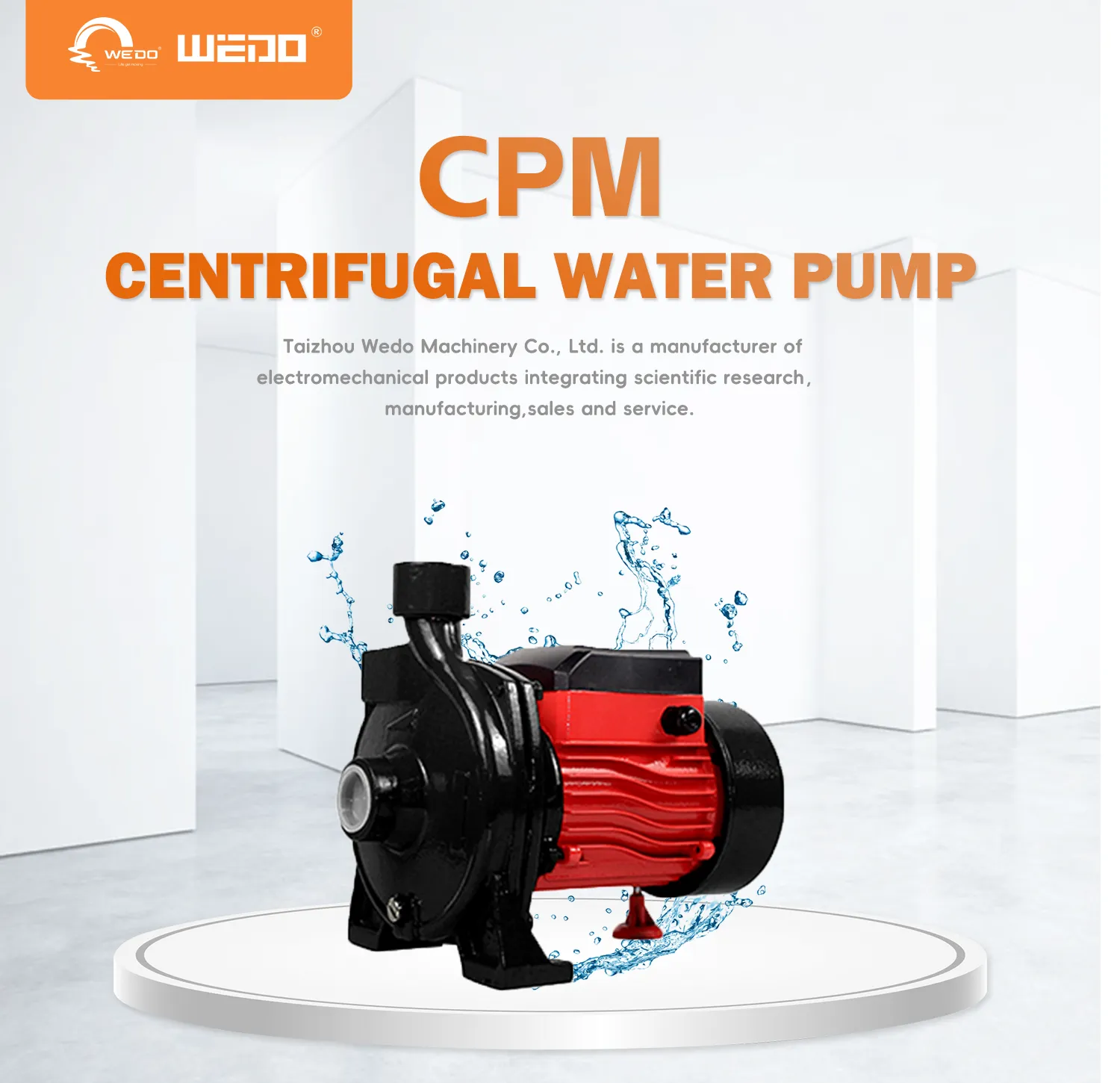

CPM Centrifugal Pump

CPM

Delivery:

FOB

Supply Ability:

10000piece / Day

Country of Origin:

Taizhou, China

Quantity:

Contact Now

add to cart

APPLICATION

Centrifugal pumps with single impeller are able to offer high flow rates,provide smooth,nonpulsating delivery,and regulate the flow rate over a wide range without damaging the pump.
For the correct functioning of the pump,use clean water,or nonaggressive liquids charged with small solid impurities.
Tobe used in flow irrigation system in garden,agriculture and industrial fittings.

Operating conditions

Liquid temperature of up to 60 °c
Ambient temperature up to 40 °c
Total suction lift up to 9m
Continuous duty

Pump
Pumo bodyCast Iron
Impeller BrassTechno-polymer(P.P.O)
Mechnical Seal CarbonCermaicStainless steel

MOTOR
Singe Phase
Heavy Duty Contious Work
Motor HousingAluminum
ShaftCarbon SteelStainless Steel
Insulation Class BClassF
Protection IP44IP54
CoolingExternal Ventilation

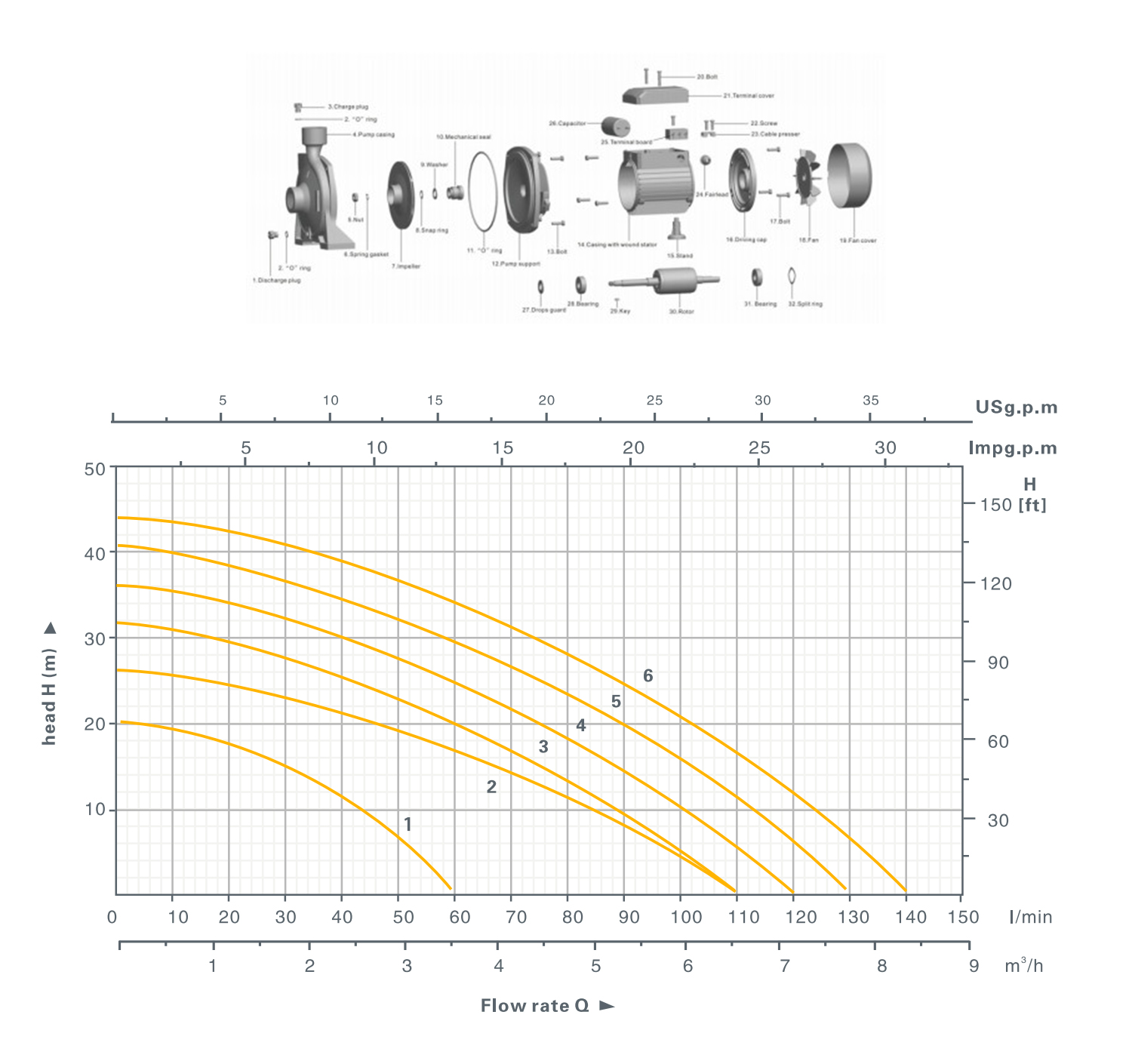

MODEL	POWER		Max.Flow	Max.Head
MODEL	KW	HP	L/min	M
CPM-130	0.37	0.5	22	90
CPM-146	0.55	0.75	28	100
CPM-158	0.75	1	32	110
CPM-180	1.1	1.5	18	400
CPM-190	1.5	1.8	19	420
CPM-200	2	2	20	500
