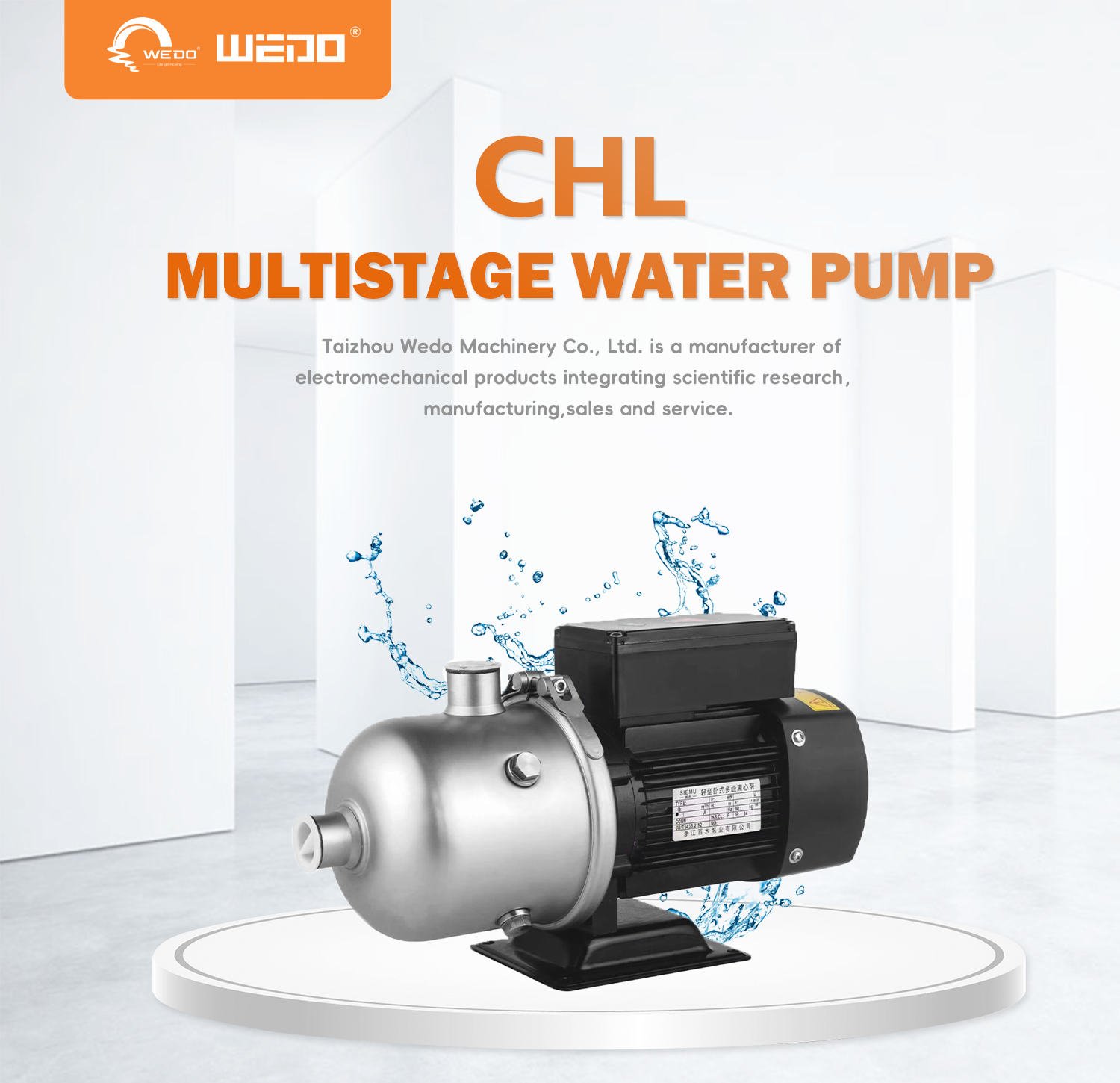

CHL Stainless Steel Multistage Centrifugal Pump

CHL
Delivery:
FOB
Supply Ability:
10000piece / Year
Country of Origin:
TAIZHOU, CHINA
Quantity:
Contact Now
add to cart

CHL High head Horizotal Pump Stainless Steel Multistage Centrifugal Pump


Application
CM、CHLF(T) pumps are primarily used in the following industrial applications:
Air conditioning systems
Cooling systems
Industrial cleaning
Water treatment (purification of water)
Aquaculture
Fertilizer/dosing systems
Environmental applications
(Other) Many specialized specific applications
Conveying liquids
Thin, clean, non-flammable, non-explosive liquids that do not contain solid particles or fibers.
The pump can transport fluids such as mineral water, softened water, pure water, light oils, and other light chemical media.
If the density or viscosity of the liquid being conveyed is greater than water, a high-power motor must be used if necessary.
Whether the pump is suitable for a specific liquid is determined by multiple factors,
with the most important being chlorine content, pH value, temperature, and the presence of solvents or oil.
Operating conditions:
Liquid temperature: Standard type -15°C to +70°C
Hot water type +70°C to +110°C
Maximum ambient temperature: +40°C
Maximum operating pressure: 10 bar
Maximum inlet pressure is limited by the maximum operating pressure.
Motor
The motor is fully enclosed and air-cooled, with a two-pole design.
Protection rating: IP55
Insulation class: F
Standard voltage: 50Hz: 1x220-240V, 3x220-240V/380-415V
The maximum power for a single-phase motor is 2.2kW.
Pump
The pump is a horizontal multistage non-self-priming centrifugal pump, equipped with a motor with an extended shaft.
Its compact design ensures a small pump size, with an axial inlet and radial outlet.

Technical Data

Model

Power（kw)

Flow

Head

m3/h

m

2CUBIC

CHL 2-20

0.37

2

15

CHL 2-30

0.37

2

22

CHL 2-40

0.55

2

29

CHL 2-50

0.55

2

36

CHL 2-60

0.75

2

44

4CUBIC

CHL 4-20

0.37

4

15

CHL 4-30

0.55

4

23.5

CHL 4-40

0.75

4

31

8CUBIC

CHL 8-20

0.75

8

18

CHL 8-30

1.1

8

27

CHL 8-40

1.5

36

CHL 8-50

2.2

8

45

12CUBIC

CHL12-20

1.2

12

20

CHL12-30

1.8

12

30

CHL12-40

2.4

12

40

CHL12-50

3

2

50

16CUBIC

CHL 16-10

1.1

16

10.5

CHL 16-20

2.2

16

22

CHL 16-30

3

16

34

20CUBIC

CHL20-10

1.1

20

10

CHL20-20

2.2

20

23

CHL20-30

4

20

35
