WD168/177-E/182/188 Gasoline Engine
Air Cooled Four Stroke Single Cylinder Gasoline Engine
Horizontal shaft gasoline / gas / petrol engine has many kinds of usage, such as cultivator, ATV, water pump, generator, replacement, snow blower and etc.
Also, this engine is called replacement engine. The fuction, as follows,
Cultivator replacement engine, ATV replacement engine, water pump replacement engine, generator replacement engine, snow blower replacement engine and etc.
* Cylinder, 4-Stroke, Air cooled Gasoline Engine, with Electric Starting
* Compact and Portable Power for Emergency and Home Standby Use
* Good Mufflers and Less Fuel Consumption
* Color or Brown Carton are for Choice.
* Non-contact transistorized ignition(C.T.I)System make sure easy and quick starting
Engine mounted to this Genset
* Advanced OHV, air-cooled, 4 stroke engine, delivers non-fluctuating power for a long time
* Light and compact design
* Low fuel consumption
* Easy and fast starting and installing
* Lower noise and small vibration
* CE certificated approved
Technical Data

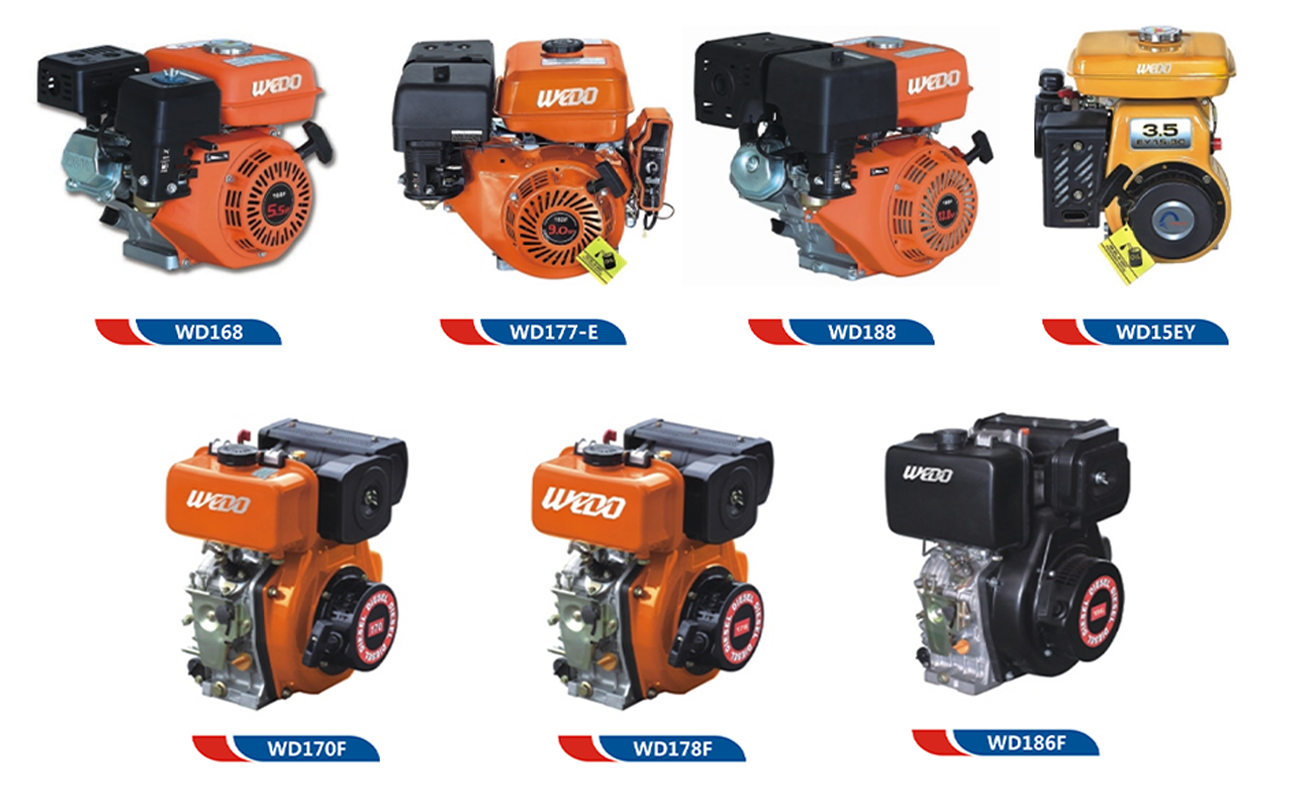

| Model | WD168 | WD177-E | WD182 | WD188 |
| Engine type Engine type | Air cooled,4-stroke OHV Single cylinder | |||
| Borexstroke(mm) | 68×45 | 77×58 | 82×64 | 88×64 |
| Displacement(cc) | 163 | 270 | 337 | 389 |
| Compression ratio | 8.5:1 | 8.2:1 | 8:1 | 8:1 |
| Max.power output(hp/rpm) | 5.5/3600 | 9/3600 | 11/3600 | 13/3600 |
| Max.torque(N.m/rpm) | 10.8/2500 | 16.7/2500 | 23.5/2500 | 26.4/2500 |
| Ignition system | Non-contact transistorized ignition (TCL) | |||
| Start mode | Recoil/electric | |||
| Air cleaner | Semi-dry,oil bath,dual,double silent and cyclone type | |||
| Fuel tank capacity(L) | 3.6 | 6 | 6.5 | 6.5 |
| Fuel consumption | 290g/HP-hour | |||
| Engine oil capacity(L) | 0.6 | 1.1 | 1.1 | 1.1 |
| Dimension(L×W×H)(mm) | 380×325×340mm | 510×420×475mm | 510×420×475mm | 510×420×475mm |
| Gross weight(kg) | 14.5 | 28 | 32 | 34 |
