Z027 GAS BOILER CIRCULATION PUMPS

Z027

Quantity:

Contact Now

add to cart

High Efficiency Domestic Gas Boiler Circulation Pumps

Suitable fluids:
I)Heating water to VDI203
II)heating water
III)water/glycol mixtures Max. Mixing ratio1: 1

Performance:
I)Fluid temperature range: -10° C-110° C Ambient Temperature Permissible up to 40° C
Mains power: 220V. 50Hz
Motor: Degree of protection IP44 insulation class F

Construction materials
I) Pump body cast iron
II)impeller PP
III)shaft: Ceramic
Bearing: Ceramic Mounting shaft in the horizontal plane

Pump Equipment
I)screwed end single head pump

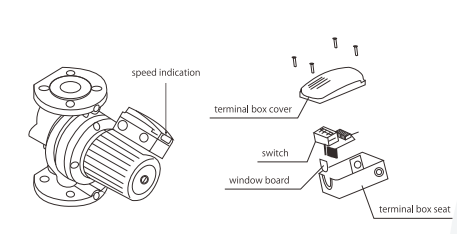

II) manual 3 speed control
III)Non-overloading single phase

Description:
PURITY pump hot water circulation pump Application Benefits Description:
1. The hot water circulation system
2. The industrial circulating water system
3. The air-conditioning system, cooling water circulation system
4. Speed ranges: 1100-2200rpm
5. Paragraph 3 speed manual
6. Fluid temperature: -10deg~+110deg
7. The maximum working pressure: 6/10 bar
8. Environmental temperature: Max. +40deg
9. Power Transmission mode: 1~220V 60Hz
10 The need to pump axis in the horizontal direction.
11 The integrity of packaging and pump operation and maintenance manual

Model	Power （w）	Q.max （m³/h）	H.max (m)	R.flow （m³/h）	R.head (m)
GBP15-40S	230/50	2.0	4.0	65	0.33
		1.5	3.5	50	0.25
		1.0	2.5	32	0.18
GBP15-50S	230/50	2.2	5.0	85	0.42
		2.0	4.0	60	0.33
		1.0	2.5	40	0.20
GBP15-60S	230/50	2.5	5.7	100	0.45
		2.0	4.5	75	0.33
		1.2	3.0	55	0.20
GBP15-70S	230/50	2.5	6.5	130	0.60
		2.0	5.0	110	0.50
		1.2	3.5	90	0.40
