RS Circulation Water Pump

RS

Quantity:

Contact Now

add to cart

High Efficiency Domestic Water Pressure Booster Circulation Water Pump

Suitable fluids:
I)Heating water to VDI203
II)heating water
III)water/glycol mixtures Max. Mixing ratio1: 1

Performance:
I)Fluid temperature range: -10° C-110° C Ambient Temperature Permissible up to 40° C
Mains power: 220V. 50Hz
Motor: Degree of protection IP44 insulation class F

Construction materials
I) Pump body cast iron
II)impeller PP
III)shaft: Ceramic
Bearing: Ceramic Mounting shaft in the horizontal plane

Pump Equipment
I)screwed end single head pump
II) manual 3 speed control
III)Non-overloading single phase

Description:
PURITY pump hot water circulation pump Application Benefits Description:

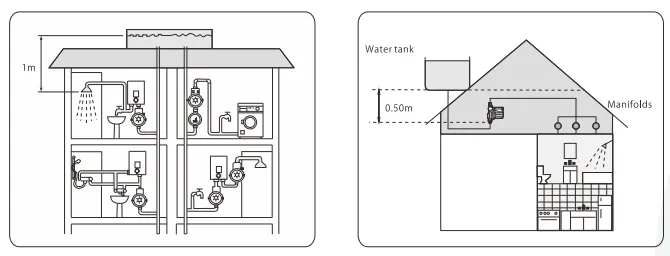

1. The hot water circulation system
2. The industrial circulating water system
3. The air-conditioning system, cooling water circulation system
4. Speed ranges: 1100-2200rpm
5. Paragraph 3 speed manual
6. Fluid temperature: -10deg~+110deg
7. The maximum working pressure: 6/10 bar
8. Environmental temperature: Max. +40deg
9. Power Transmission mode: 1~220V 60Hz
10 The need to pump axis in the horizontal direction.
11 The integrity of packaging and pump operation and maintenance manual

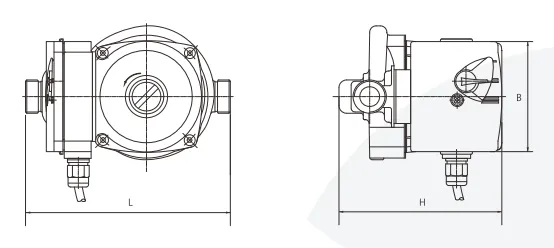

Model	Power （w）	Max.flow （L/min）	Max.head (m)	Inlet/Outlet （IN）	Nw (kg)
RS15/4	72/53/38	42/34/23	4.5/4/3	0.75''	2.2
RS25/4	72/53/38	48/36/18	4.5/4/3	1.5''	2.4
RS32/4	72/53/38	48/36/18	4.5/4/3	2''	2.7
RS15/6	93/67/46	48/35/21	6.0/5/3	0.75''	2.2
RS25/6	93/67/46	55/38/22	6.0/5/3	1.5''	2.6
RS32/6	93/67/46	55/38/22	6.0/5/3	2''	2.9
RS20/12	270	60	12.5	1''	4.2
RS25/8	245/170/145	115/95/45	8/7.5/7	1.5''	4.7
RS32/8	245/210/150	160/103/43	8/7.5/6.5	2''	5
