automatic pump pressure switch

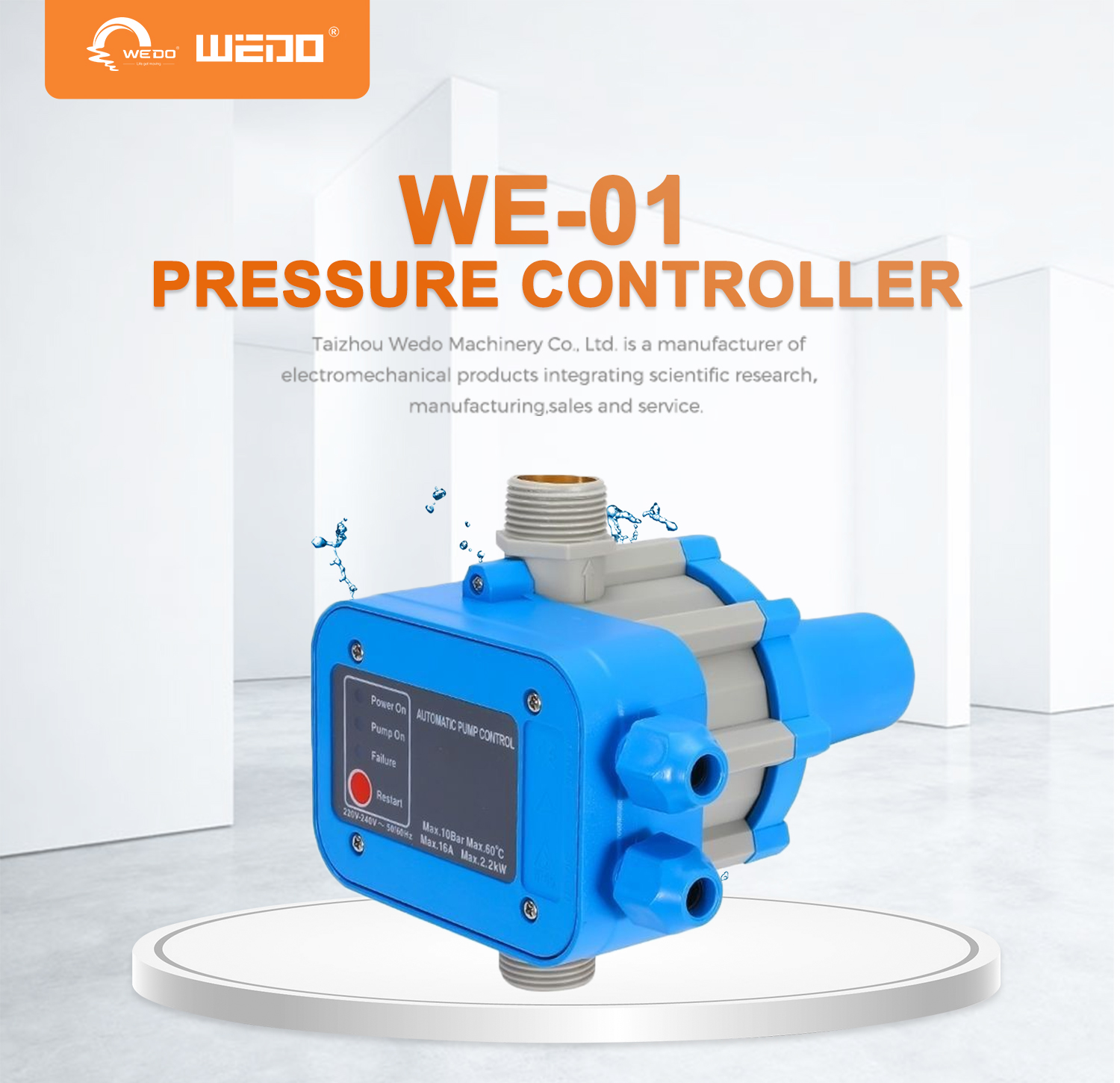

WE-01 Pressure Switch Controller

WE-01
Quantity:
Contact Now
add to cart
1.1KW Automatic Intelligent Smart Electric Pressure Switch Controller for Water Pump Adjustable
Being an intelligent mix of hydraulic and electronic engineering.
The control maintains both pressure and flow and controls the operation of the pump automatically.
It don't needs pressure tank as in the traditional systems, There are no plenum chambers to recharge an no irritating variation in pressure and inflow at the point of use.
No adjustment or maintenance is required, it is absolutely dependable durable and simple to install.

Technical Data
1.Starting Pressure:1.5bar/2.2bar
2.Max.current:10A
3.Max working pressure:10bar
4.Rated voltage:110V-120V 220V-240V
5.Frequency: 50/60Hz
6.Max working temperature:60C
7.Protection rating:IP65
8.Connection thread:G1"
9.Power:1.1kw(220V-240V)
0.75 kw(110V-120V)
10. Application: Self-Priming Pump/Jet pump/Garden Pump/Clarified water pump/Centrifugal pump
DESCRIPTIONS
1.Start and stop the pump automatically
2.Protect the pump for damaged by dry-running 3.Only for clean water







ModelVoltage & FrequencyMax.
Current		Max.
Power		Start PressureMax Working Pressure
WE-01220-240V  50/60HZ10A1.1KW1.2bar; 1.5bar; 2.2bar10bar
WE-01T
Adjustable
220-240V  50/60HZ10A1.1KW1.0-2.5; 1.5-3.010bar
WE-01C
European socket
220-240V  50/60HZ10A1.1KW1.2bar; 1.5bar; 2.2bar10bar
