WE-05 Pressure Control Switch
WE-05
Quantity:
Smart Electronic Digital Automatic 220V 10 bar Pressure Control Switch Adjustable For Water Pump
Being an intelligent mix of hydraulic and electronic engineering.
The control maintains both pressure and flow and controls the operation of the pump automatically.
It don't needs pressure tank as in the traditional systems, There are no plenum chambers to recharge an no irritating variation in pressure and inflow at the point of use.
No adjustment or maintenance is required, it is absolutely dependable durable and simple to install.
Technical Data
1.Starting Pressure:1.5bar/2.2bar
2.Max.current:10A
3.Max working pressure:10bar
4.Rated voltage:110V-120V 220V-240V
5.Frequency: 50/60Hz
6.Max working temperature:60C
7.Protection rating:IP65
8.Connection thread:G1"
9.Power:1.1kw(220V-240V)
0.75 kw(110V-120V)
10. Application: Self-Priming Pump/Jet pump/Garden Pump/Clarified water pump/Centrifugal pump
DESCRIPTIONS
1.Start and stop the pump automatically
2.Protect the pump for damaged by dry-running
3.Only for clean water

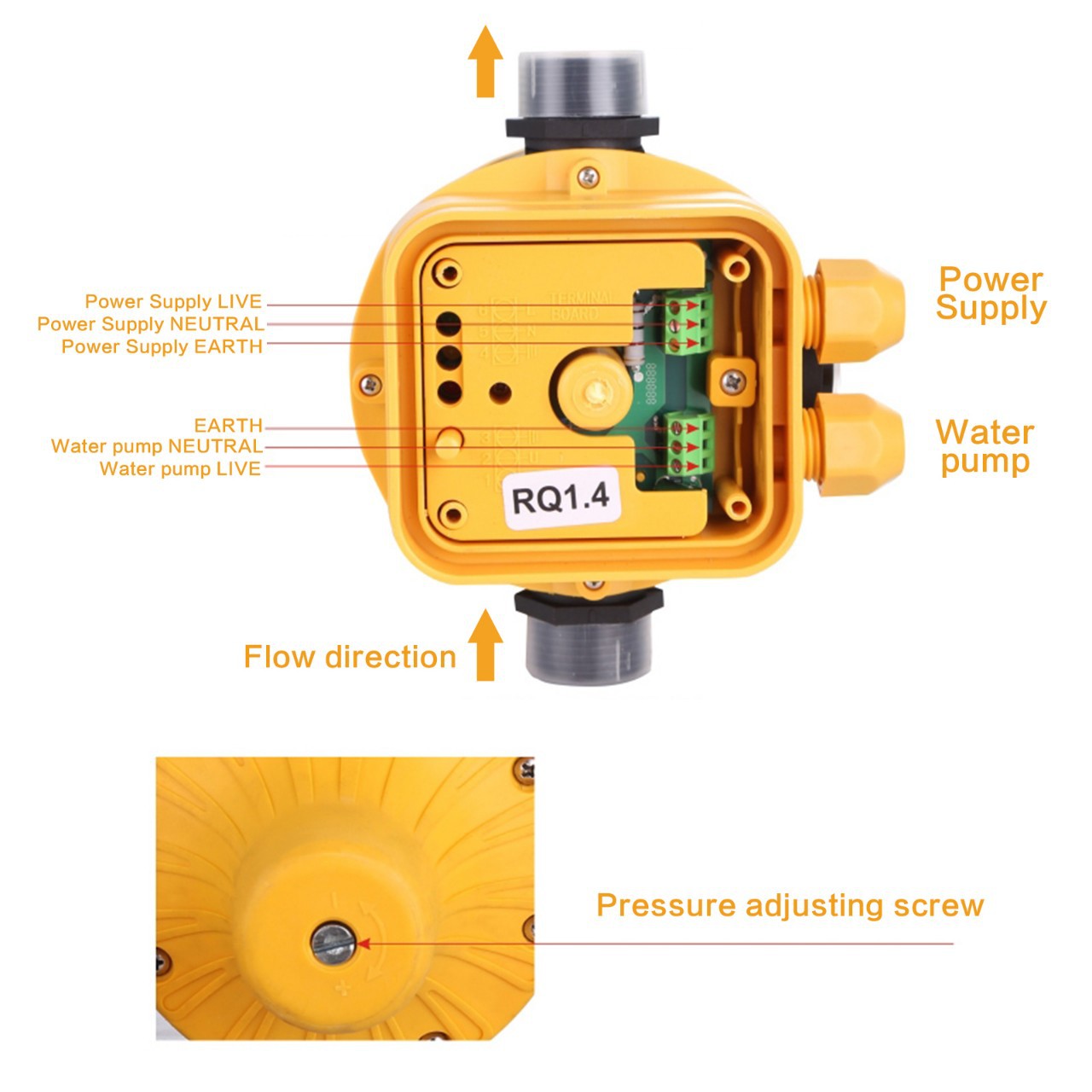

Detailed Photos
Technical Data
MODEL | WE-05 |
Rated voltage | 220V-240V 110V-120V |
Frequency | 50/60Hz |
Max.Current | 10A |
Max.Power | 1.1KW |
Starting Pressure Setting | 1.2bar 、1.5bar 、2.2bar |
Max.Working Pressure | 10bar |
Connection Thread | R1" |
Protection Rating | IP65 |
Max.Working Temperature | 60℃ |
| Cable Diameter(mm) | 7.5-9mm |
| Packing Size(cm) | 46x32x38cm/12pcs |
| G.W/N.W(kgs) | 15.5/13 |
| Model | Voltage & Frequency | Max. Current | Max. Power | Start Pressure | Max Working Pressure |
| WE-05 | 220-240V 50/60HZ | 10A | 1.1KW | 1.2bar; 1.5bar; 2.2bar | 10bar |
| WE-05CT | 220-240V 50/60HZ | 10A | 1.1KW | 1.2bar; 1.5bar; 2.2bar | 10bar |
| WE-05T | 220-240V 50/60HZ | 10A | 1.1KW | 1.0-2.5; 1.5-3.0 | 10bar |
MODELMODELMODEL
MODEL
MODELMODEL
