2hp aerator

220V 380V Water Fountain Aerator Fish Pond Farming

WDFPD
Delivery:
FOB
Supply Ability:
10000 / Month
Country of Origin:
Ningbo
Quantity:
Contact Now
add to cart

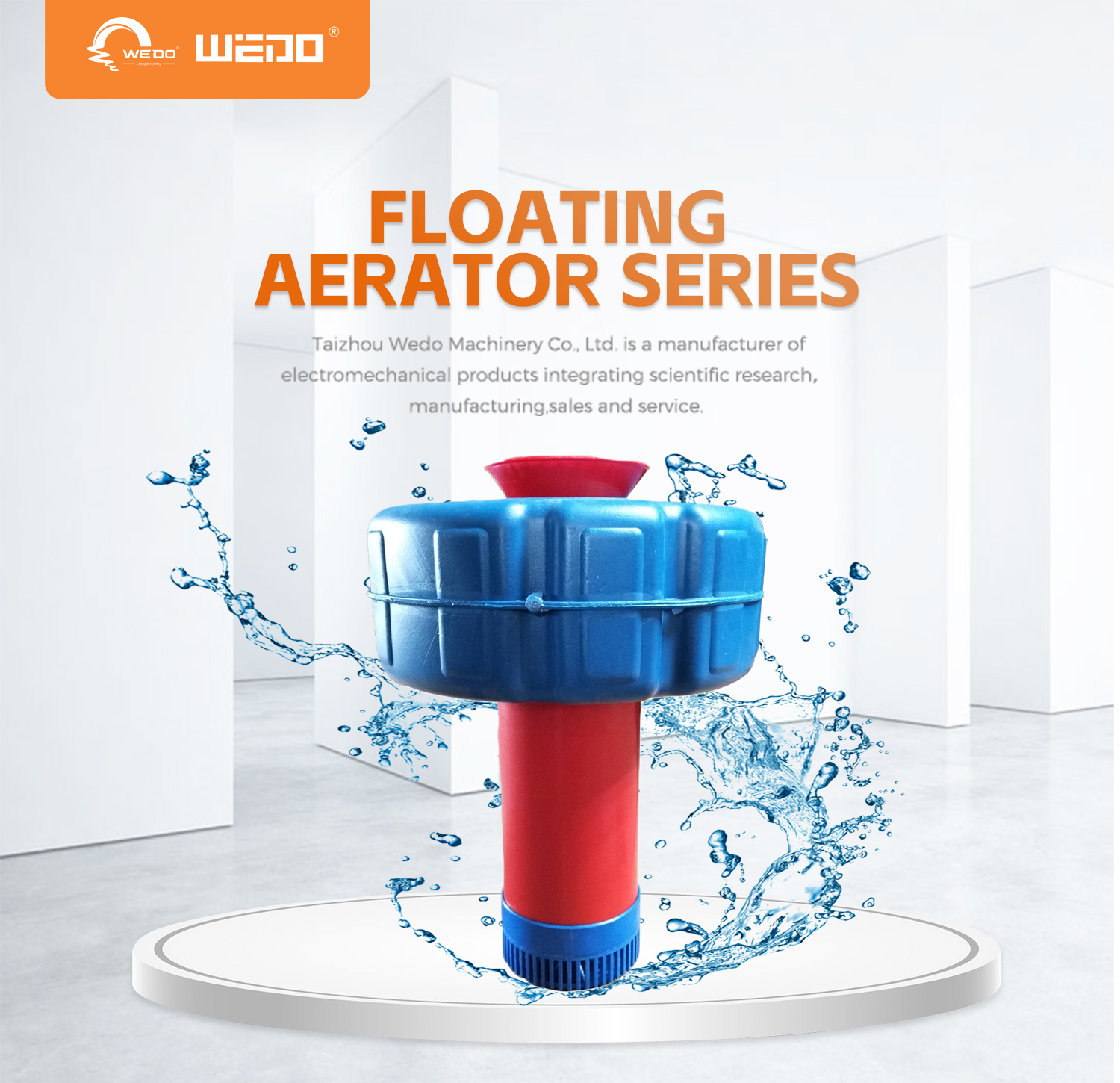

220V 380V  Water Fountain Aerator Fish Pond Farming

 PRODUCT INTRODUCTION

This pump is composed of floating pump and aeration nozzle, it is both available for aeration by ftting the nozzle and farmland irrigation and drainage oy dismantling the nozzle, such conversion between the two functions can be done without any tool, The floating pump suspended in the water draws the oxygen-depleted water at the lower level, and spray it from the nozzle upward into the sky rapidly, which forms a fountain and is dispersed into droplets of varying sizes in contact with the air to increase dissolved oxygen, and then falls back to the fish pond to form a circle of"torrential rainw impacting the water surface to achieve better aeration.
Technical Data

Model

Power
(kw)

Voltage
V/50HZ

Max.Head
(m)

Max.Flow
(m³/h)

Eff.(%)

Inch
(mm)

Weight
(kg)

WDFPD-0.75

0.75

220

8

8

34.4

250

15

WDFP-0.75

0.75

380

9

9

36.7

250

15

WDFPD-1.1

0.75

220

7

30

46.7

380

16

WDFP-1.1

1.5

380

7

30

48.9

380

16

WDFPD-1.5

1.5

220

6

30

47.5

380

16

WDFP-1.5

1.5

380

7

40

49.3

380

16

WDFPD-1.8

2.2

220

4

55

46

4/100

20

WDFP-2.2

2.2

380

5

55

49

4/100

20
