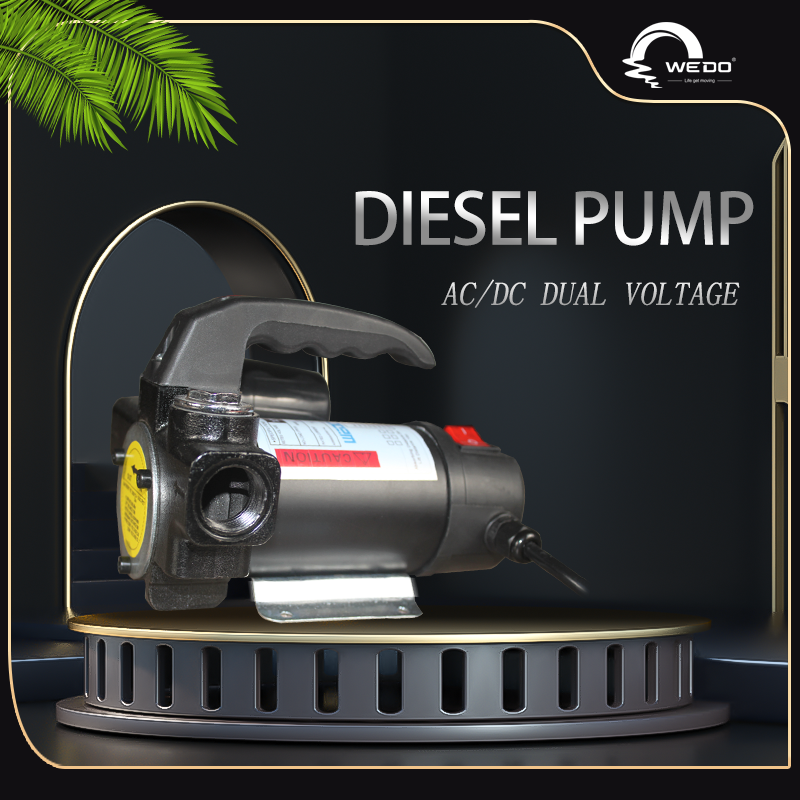

ZOP Oil Pump

Our oil pump is a high-quality and reliable device designed for extracting oil from various sources, such as wells and tanks. It is ideal for use in a variety of applications, including oil production, refining, and transportation.

Features:

Specifications:

Applications:

Our oil pump is designed and manufactured to the highest standards to ensure optimal performance and reliability. Contact us today to learn more about our oil pump and how it can meet your specific needs.

Voltage(V)	Current(A）	Power(W)	Flow(L/min)	Head(m)	Suction(m)	Outlet(mm)
12-24V	13/8.5	160/200	45	10	10	25

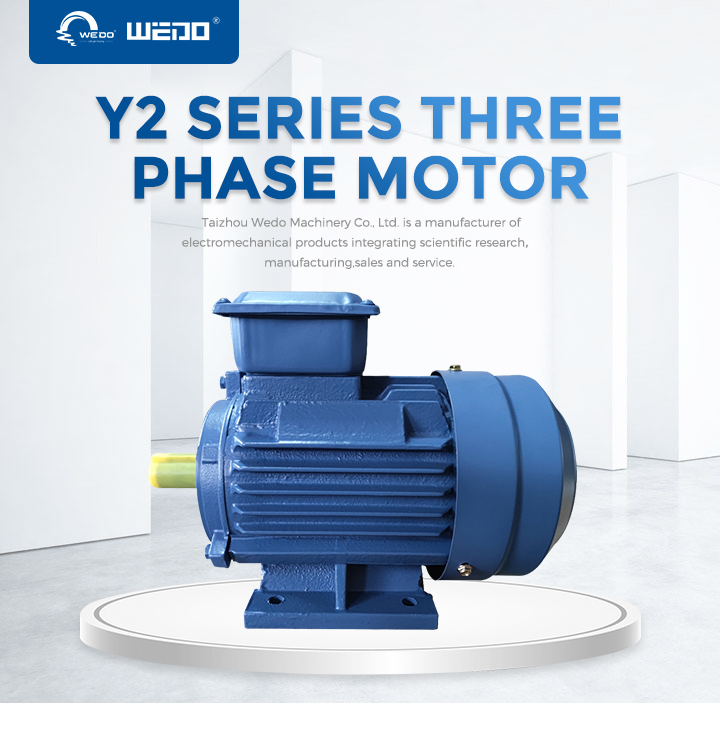

Y series motor, Y2 series motor improvement products, product performance and international IEC standards, has a novel structure. modeling fang beauiful, small vibration, low noise.

Ambient temperature: -15ºC < Θ < 40ºC
Altitude: not exceeding 1000m
Rated voltage: 380V or any voltage between 220-760V
Rated frequency: 50HZ,60HZ
Protection class: IP54/IP55
Insulation class: F,H
Cooling method: ICO141
Duty:S1 (continuous)
Connection: Star-connection for up to 3kw, delta-connection for 4kw and above.


Technical Data



MODEL	Output(kw）	Rated speed(r/min)	Rated current(A)	Eff(%)	Power factor(cosφ)	Locked rotor current Rated torque	Locked rotor torque Rated torque	Pull out torque Rated torque
Synchronous Speed 3000r/m(2pole)
Y2-71M1-2	0.37	2740	0.99	70	0.81	6.1	2.2	2.2
Y2-71M2-2	0.55	2740	1.4	73	0.82	6.1	2.2	2.3
Y2-80M1-2	0.75	2835	1.83	77.4	0.83	6.1	2.2	2.3
Y2-80M2-2	1.1	2835	2.58	79.6	0.84	7.0	2.2	2.3
Y2-90S-2	1.5	2845	3.43	81.3	0..84	7.0	2.2	2.3
Y2-90L-2	2.2	2845	4.85	83.2	0.85	7.0	2.2	2.3
Y2-100L-2	3	2875	6.31	84.6	0.87	7.5	2.2	2.3
Y2-112M-2	4	2895	8.1	85.8	0.88	7.5	2.2	2.3
Y2-132S1-2	5.5	2905	11	87	0.88	7.5	2.2	2.3
Y2-132S2-2	7.5	2905	14.9	88.1	0.88	7.5	2.2	2.3
Y2-160M1-2	11	2935	21.3	89.4	0.89	7.5	2.2	2.3
Y2-160M2-2	15	2935	28.8	90.3	0.89	7.5	2.2	2.3
Y2-160L-2	18.5	2935	34.7	90.9	0.90	7.5	2.2	2.3
Y2-180M-2	22	2945	41	91.3	0.90	7.5	2	2.3
Y2-200L1-2	30	2955	55.5	92	0.90	7.5	2	2.3
Y2-200L2-2	37	2955	67.9	92.5	0.90	7.5	2	2.3
Y2-225M-2	45	2975	82.3	92.9	0.90	7.5	2	2.3
Y2-250M-2	55	2975	101	93.2	0.90	7.5	2	2.3
Y2-280S-2	75	2975	134	93.8	0.90	7.5	2	2.3
Y2-280M-2	90	2975	160	94.1	0.91	7.5	2	2.3
Y2-315S-2	110	2980	195	94.3	0.91	7.1	1.8	2.2
Y2-315M-2	132	2980	233	94.6	0.91	7.1	1.8	2.2
Y2-315L1-2	160	2980	279	94.8	0.92	7.1	1.8	2.2
Y2-315L2-2	200	2980	348	95	0.92	7.1	1.8	2.2
Y2-355M-2	250	2980	433	95	0.92	7.1	1.6	2.2
Y2-355L-2	315	2980	544	95	0.92	7.1	1.6	2.2
Synchronous Speed 3000r/m(2pole)
Y2-71M2-4	0.37	1330	1.12	67	0.74	5.2	2.1	2.2
Y2-80M1-4	0.55	1395	1.57	71	0.75	5.2	2.4	2.3
Y2-80M2-4	0.75	1395	2.03	79.6	0.76	6	2.3	2.3
Y2-90S-4	1.1	1405	2.89	81.4	0.77	6	2.3	2.3
Y2-90L-4	1.5	1405	3.7	82.8	0.79	6	2.3	2.3
Y2-100L1-4	2.2	1435	5.16	84.3	0.81	7	2.3	2.3
Y2-100L2-4	3	1435	6.78	85.5	0.82	7	2.3	2.3
Y2-112M-4	4	1445	8.8	86.6	0.82	7	2.3	2.3
Y2-132S-4	5.5	1445	11.7	87.7	0.83	7	2.3	2.3
Y2-132M-4	7.5	1445	15.6	88.7	0.84	7	2.3	2.3
Y2-160M-4	11	1460	22.3	89.8	0.84	7	2.2	2.3
Y2-160L-4	15	1460	30.1	90.6	0.85	7.5	2.2	2.3
Y2-180M-4	18.5	1470	36.5	91.2	0.86	7.5	2.2	2.3
Y2-180L-4	22	1470	43.2	91.6	0.86	7.5	2.2	2.3
Y2-200L-4	30	1470	57.6	92.3	0.86	7.2	2.2	2.3
Y2-225S-4	37	1485	69.9	92.7	0.87	7.2	2.2	2.3
Y2-225M-4	45	1485	84.7	93.1	0.87	7.2	2.2	2.3
Y2-250M-4	55	1485	103	93.5	0.87	7.2	2.2	2.3
Y2-280S-4	75	1485	140	94	0.87	7.2	2.2	2.3
Y2-280M-4	90	1490	167	94.2	0.87	7.2	2.2	2.3
Y2-315S-4	110	1490	201	94.5	0.88	6.9	2.2	2.2
Y2-315M-4	132	1490	240	94.7	0.88	6.9	2.1	2.2
Y2-315L1-4	160	1490	287	94.9	0.89	6.9	2.1	2.2
Y2-315L2-4	200	1490	359	95.1	0.89	6.9	2.1	2.2
Y2-355M-4	250	1490	443	95.1	0.90	6.9	2.1	2.2
Y2-355L-4	315	1490	556	95.1	0.90	6.9	2.0	2.2
Synchronous Speed 3000r/m(2pole)
Y2-80M1-6	0.37	890	1.3	62	0.70	4.7	1.9	2
Y2-80M2-6	0.55	890	1.79	65	0.72	4.7	1.9	2.1
Y2-90S-6	0.75	915	2.29	75.9	0.72	5.5	2	2.1
Y2-90L-6	1.1	915	3.18	78.1	0.73	5.5	2	2.1
Y2-100L-6	1.5	945	3.94	79.8	0.75	5.5	2	2.1
Y2-112M-6	2.2	945	5.6	81.8	0.76	6.5	2	2.1
Y2-132S-6	3	965	7.4	83.3	0.76	6.5	2.1	2.1
Y2-132M1-6	4	965	9.8	84.6	0.76	6.5	2.1	2.1
Y2-132M2-6	5.5	965	12.9	86	0.77	6.5	2.1	2.1
Y2-160M-6	7.5	975	17	87.2	0.78	6.5	2	2.1
Y2-160L-6	11	975	24.2	88.7	0.81	7	2	2.1
Y2-180L-6	15	975	31.6	89.7	0.81	7	2	2.1
Y2-200L1-6	18.5	975	38.6	90.4	0.83	7	2.1	2.1
Y2-200L2-6	22	975	44.7	90.9	0.84	7	2.1	2.1
Y2-225M-6	30	980	59.3	91.7	0.86	7	2	2.1
Y2-250M-6	37	980	71	92.2	0.86	7	2.1	2.1
Y2-280S-6	45	980	86	92.7	0.86	7	2.1	2
Y2-280M-6	55	980	105	93.1	0.86	7	2.1	2
Y2-315S-6	75	980	141	93.7	0.86	7	2	2
Y2-315M-6	90	980	169	94	0.86	7	2	2
Y2-315L1-6	110	980	206	94.3	0.86	6.7	2	2
Y2-315L2-6	132	980	244	94.6	0.87	6.7	2	2
Y2-335M1-6	160	985	292	94.8	0.88	6.7	1.9	2
Y2-335M2-6	200	985	365	95	0.88	6.7	1.9	2
Y2-355L-6	250	985	455	95	0.88	6.7	1.9	2
Y2-400M1-6	280	990	510	95.8	0.87	5.9	2.3	1.8
Y2-400M2-6	315	990	574	95.8	0.87	5.9	2.3	1.8
Synchronous Speed 3000r/m(2pole)
Y2-90S-8	0.37	660	1.49	62	0.61	4	1.8	1.9
Y2-90L-8	0.55	660	2.18	63	0.61	4	1.8	2
Y2-100L1-8	0.75	680	2.39	71	0.67	4	1.8	2
Y2-100L2-8	1.1	680	3.32	73	0.69	5	1.8	2
Y2-112M-8	1.5	690	4.5	75	0.69	5	1.8	2
Y2-132S-8	2.2	690	6	78	0.71	6	1.8	2
Y2-132M-8	3	710	7.9	79	0.73	6	1.8	2
Y2-160M1-8	4	710	10.3	81	0.73	6	1.9	2
Y2-160M2-8	5.5	720	13.6	83	0.74	6	2	2
Y2-160L-8	7.5	720	17.8	85.5	0.75	6	2	2
Y2-180L-8	11	730	25.1	87.5	0.76	6.6	2	2
Y2-200L-8	15	730	34.1	88	0.76	6.6	2	2
Y2-225S-8	18.5	730	40.6	90	0.76	6.6	1.9	2
Y2-225M-8	22	740	47.4	90.5	0.78	6.6	1.9	2
Y2-250M-8	30	740	64	91	0.79	6.6	1.9	2
Y2-280S-8	37	740	78	91.5	0.79	6.6	1.9	2
Y2-280M-8	45	740	94	92	0.79	6.6	1.9	2
Y2-315S-8	55	740	111	92.8	0.81	6.6	1.8	2
Y2-315M-8	75	740	151	93	0.81	6.6	1.8	2
Y2-315L1-8	90	740	178	93.8	0.82	6.6	1.8	2
Y2-315L2-8	110	740	217	94	0.82	7.2	1.8	2
Y2-355M1-8	132	740	261	93.7	0.82	7.2	1.8	2
Y2-355M2-8	160	740	315	94.2	0.82	7.2	1.8	2
Y2-355L-8	200	740	388	94.5	0.83	7.2	1.8	2
Y2-400M1-8	250	745	494	95	0.81	6.2	2.3	1.8
Y2-400M2-8	280	745	552	95	0.82	6.2	2.3	1.8
Y2-400L1-8	315	745	592	95	0.85	6.2	2.3	1.8
