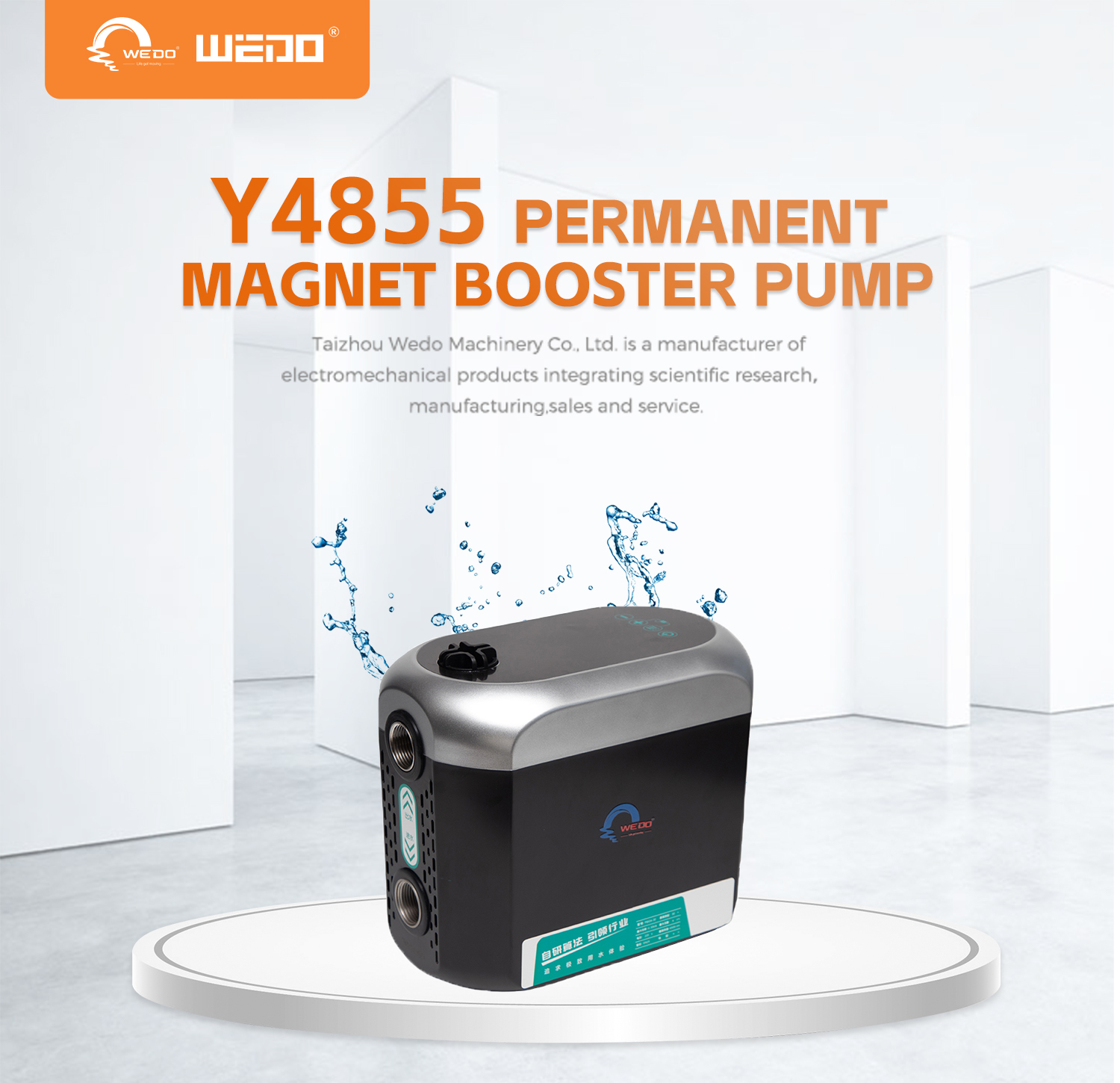

Y4855 Permanent Magnet booster Pump
Y4855
Quantity:
Product Overview
This series of products can be applied to the secondary water supply of high-rise residences, villa water supply,
household water circulation system, including toilets, kitchens, garden irrigation and other facilities,
and a water pump solves the water supply pressure of the whole house.
Advantage
◆Full inverter technology
◆ Lack of water, shutdown, and self- starting
◆Synchronous research and development of motor frequency conversion system
Product Analysis
◆ST chip and Infineon module
◆Self-developed PCB and OS with better compatibility
◆Fluororubber mechanical seal, high temp & high speed resistant
◆Original NSK high-speed silent bearing
◆304 stainless steel impeller, fluororubber sealing ring
◆Jintian copper wire, quality guaranteed by listed company
◆Sectional high-stability pressure sensor

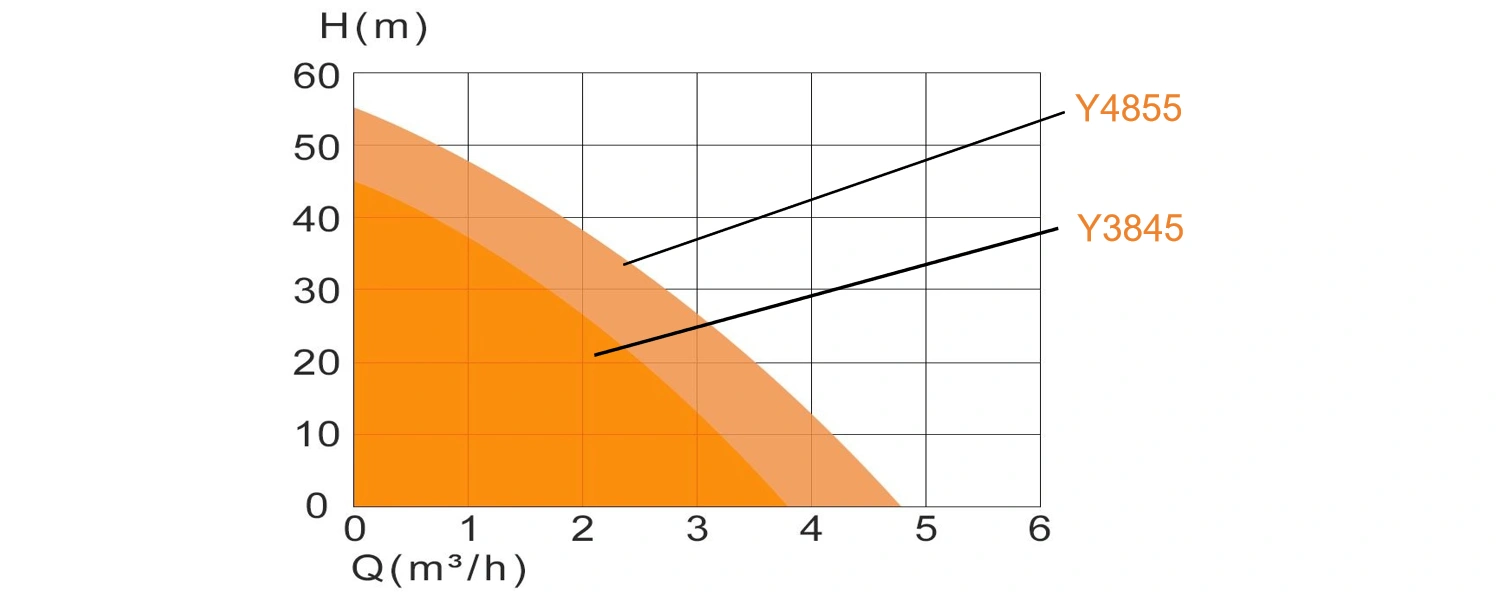

| MODEL | Max.Head | Max.Flow | Max.Speed | Power | Temperature Resistant | |||||||
| Y3845 | 45M | 3.8M3/H | 5000r/min | 400W | <100℃ | |||||||
| Y4855 | 55M | 4.8M3/H | 5600r/min | 600W | <100℃ | |||||||
