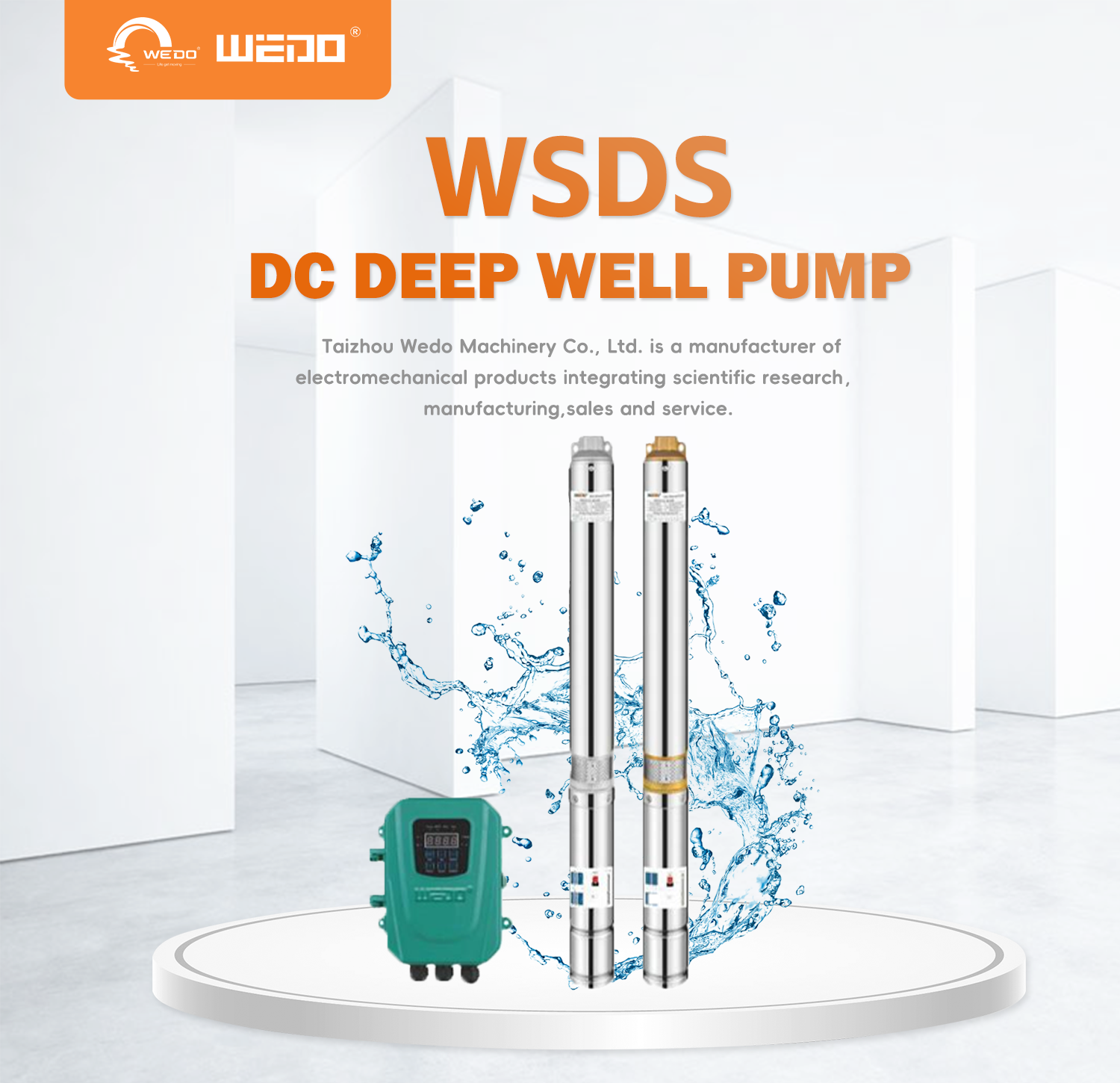

WSDS Solar Deep Well Water Pump

1. Heavy duty motors with stainless steel shafts and tough thermoplastic bodies.
2. Totally submersible and ignition protected.
3. To all existing safety standards.
4. Water cooled motors for long life, with anti airlock design and moisture tight seals.
5. Snap-lock strainer base for easy installation and removal, and silent vibration free running
6. Includes comprehensive user manual with installation instructions and wiring diagram

MODEL	Voltage （V）	Best DC Voltage (V)	Power (V)	Max.Flow (m3/h)	Max.Head (m)	Outlet (inch)	Cable (m)	Solar Panel
								Open Voltage	Power
3WSDS3.5-69-48-600	48	60-90	600	3.5	69	1''	2	<100V	≥900W
3WSDS3.5-69-72-600	72	90-120	600	3.5	69	1''	2	<150V	≥900W
3WSDS3.5-90-48-750	48	60-90	750	3.5	90	1''	2	<100V	≥1100W
3WSDS3.5-90-72-750	72	90-120	750	3.5	90	1''	2	<150V	≥1100W
3WSDS3.5-128-72-1100	72	90-120	1100	3.5	128	1''	2	<150V	≥1600W
3WSDS3.5-128-96-1100	96	110-150	1100	3.5	128	1''	2	<200V	≥1600W
3WSDS3.5-128-110-1100	110	110-150	1100	3.5	128	1''	2	<200V	≥1600W
3WSDS3.5-172-96-1500	96	110-150	1500	3.5	172	1''	2	<200V	≥2200W
3WSDS3.5-172-110-1500	110	110-150	1500	3.5	172	1''	2	<200V	≥2200W
3WSDS4.5-60-48-600	48	60-90	600	4.5	60	1.25''	2	<100V	≥900W
3WSDS4.5-60-72-600	72	90-120	600	4.5	60	1.25''	2	<150V	≥900W
3WSDS4.5-73-48-750	48	60-90	750	4.5	73	1.25''	2	<100V	≥1100W
3WSDS4.5-73-72-750	72	90-120	750	4.5	73	1.25''	2	<150V	≥1100W
3WSDS4.5-118-72-1100	72	90-120	1100	4.5	118	1.25''	2	<150V	≥1600W
3WSDS4.5-118-96-1100	96	110-150	1100	4.5	118	1.25''	2	<200V	≥1600W
3WSDS4.5-118-110-1100	110	110-150	1100	4.5	118	1.25''	2	<200V	≥1600W
3WSDS4.5-155-96-1500	96	110-150	1500	4.5	155	1.25''	2	<200V	≥2200W
3WSDS4.5-155-110-1500	110	110-150	1500	4.5	155	1.25''	2	<200V	≥2200W
3WSDS6.5-53-48-600	48	60-90	600	6.5	53	1.25''	2	<100V	≥900W
3WSDS6.5-53-72-600	72	90-120	600	6.5	53	1.25''	2	<150V	≥900W
3WSDS6.5-62-48-750	48	60-90	750	6.5	62	1.25''	2	<100V	≥1100W
3WSDS6.5-62-72-750	72	90-120	750	6.5	62	1.25''	2	<150V	≥1100W
3WSDS6.5-93-72-1100	72	90-120	1100	6.5	93	1.25''	2	<150V	≥1600W
3WSDS6.5-93-96-1100	96	110-150	1100	6.5	93	1.25''	2	<200V	≥1600W
3WSDS6.5-93-110-1100	110	110-150	1100	6.5	93	1.25''	2	<200V	≥1600W
3WSDS6.5-125-96-1500	96	110-150	1500	6.5	125	1.25''	2	<200V	≥2200W
3WSDS6.5-125-110-1500	110	110-150	1500	6.5	125	1.25''	2	<200V	≥2200W





MODEL	Voltage (V）	Best DC Voltage （V）	Power (W)	Max.Flow (m3/h)	Max.Head (m)	Outlet (inch)	Cable (m)	Solar panel
								Open Voltage	Power
4WSDS4.5-39-48-400	48	60-90	400	4.5	39	1.25''	2	<100V	≥600W
4WSDS4.5-138-96-1500	96	110-150	1500	4.5	138	1.25''	2	<200V	≥2200W
4WSDS4.5-138-110-1500	110	110-150	1500	4.5	138	1.25''	2	<200V	≥2200W
4WSDS4.5-190-220-2200	220	220-280	2200	4.5	190	1.25''	2	<420V	≥3300W
4WSDS5-36-48-400	48	60-90	400	5	36	1.25''	2	<100V	≥600W
4WSDS5-55-72-600	72	90-120	600	5	55	1.25''	2	<150V	≥900W
4WSDS5-69-48-750	48	60-90	750	5	69	1.25''	2	<100V	≥1100W
4WSDS5-69-72-750	72	90-120	750	5	69	1.25''	2	<150V	≥1100W
4WSDS5-110-72-1100	72	90-120	1100	5	110	1.25''	2	<150V	≥1600W
4WSDS5-110-96-1100	96	110-150	1100	5	110	1.25''	2	<200V	≥1600W
4WSDS5-110-110-1100	110	110-150	1100	5	110	1.25''	2	<200V	≥1600W
4WSDS6-48-72-600	72	90-120	600	6	48	1.25''	2	<150V	≥900W
4WSDS6.5-63-48-750	48	60-90	750	6.5	63	1.25''	2	<100V	≥1100W
4WSDS6.5-63-72-750	72	90-120	750	6.5	63	1.25''	2	<150V	≥1100W
4WSDS6.5-87-72-1100	72	90-120	1100	6.5	87	1.25''	2	<150V	≥1600W
4WSDS6.5-87-96-1100	96	110-150	1100	6.5	87	1.25''	2	<200V	≥1600W
4WSDS6.5-87-110-1100	110	110-150	1100	6.5	87	1.25''	2	<200V	≥1600W
4WSDS6-111-96-1500	96	110-150	1500	6	111	1.25''	2	<200V	≥2200W
4WSDS6-11-110-1500	110	110-150	1500	6	11	1.25''	2	<200V	≥2200W
4WSDS6.5-160-220-2200	220	220-280	2200	6.5	160	1.25''	2	<420V	≥3300W
4WSDS8.5-26-48-400	48	60-90	400	8.5	26	1.5''	2	<100V	≥600W
4WSDS9-40-72-600	72	90-120	600	9	40	1.5''	2	<150V	≥900W
4WSDS9-53-48-750	48	60-90	750	9	53	1.5''	2	<100V	≥1100W
4WSDS9-53-72-750	72	90-120	750	9	53	1.5''	2	<150V	≥1100W
4WSDS8.5-80-72-1100	72	90-120	1100	8.5	80	1.5''	2	<150V	≥1600W
4WSDS8.5-80-96-1100	96	110-150	1100	8.5	80	1.5''	2	<200V	≥1600W
4WSDS8.5-80-110-1100	110	110-150	1100	8.5	80	1.5''	2	<200V	≥1600W
4WSDS8.5-106-96-1500	96	110-150	1500	8.5	106	1.5''	2	<200V	≥2200W
4WSDS85-106-110-1500	110	110-150	1500	8.5	106	1.5''	2	<200V	≥2200W
4WSDS8.5-155-220-2200	220	220-280	2200	8.5	155	1.5''	2	<420V	≥3300W
4WSDS11.5-26-72-600	72	90-120	600	11.5	26	2''	2	<150V	≥900W
4WSDS11.5-38-48-750	48	60-90	750	11.5	38	2''	2	<420V	≥1100W
4WSDS11.5-38-72-750	72	90-120	750	11.5	38	2''	2	<150V	≥1100W
4WSDS11.5-64-72-1100	72	90-120	1100	11.5	64	2''	2	<150V	≥1600W
4WSDS11.5-64-96-1100	96	110-150	1100	11.5	64	2''	2	<200V	≥1600W
4WSDS11.5-64-110-1100	110	110-150	1100	11.5	64	2''	2	<200V	≥1600W
4WSDS11-88-96-1500	96	110-150	1500	11	88	2''	2	<200V	≥2200W
4WSDS11-88-110-1500	110	110-150	1500	11	88	2''	2	<200V	≥2200W
4WSDS11-125-220-2200	220	220-280	2200	11	125	2''	2	<420V	≥3300W
4WSDS16-26-48-750	48	60-90	750	16	26	2''	2	<100V	≥1100W
4WSDS16-26-72-750	72	90-120	750	16	26	2''	2	<150V	≥1100W
4WSDS16-47-72-1100	72	90-120	1100	16	47	2''	2	<150V	≥1600W
4WSDS16-47-96-1100	96	110-150	1100	16	47	2''	2	<200V	≥1600W
4WSDS16-47-110-1100	110	110-150	1100	16	47	2''	2	<200V	≥1600W
4WSDS16-70-96-1500	96	110-150	1500	16	70	2''	2	<200V	≥2200W
4WSDS16-70-110-1500	110	110-150	1500	16	70	2''	2	<200V	≥2200W
4WSDS16-88-220-2200	220	220-280	2200	16	88	2''	2	<420V	≥3300W
