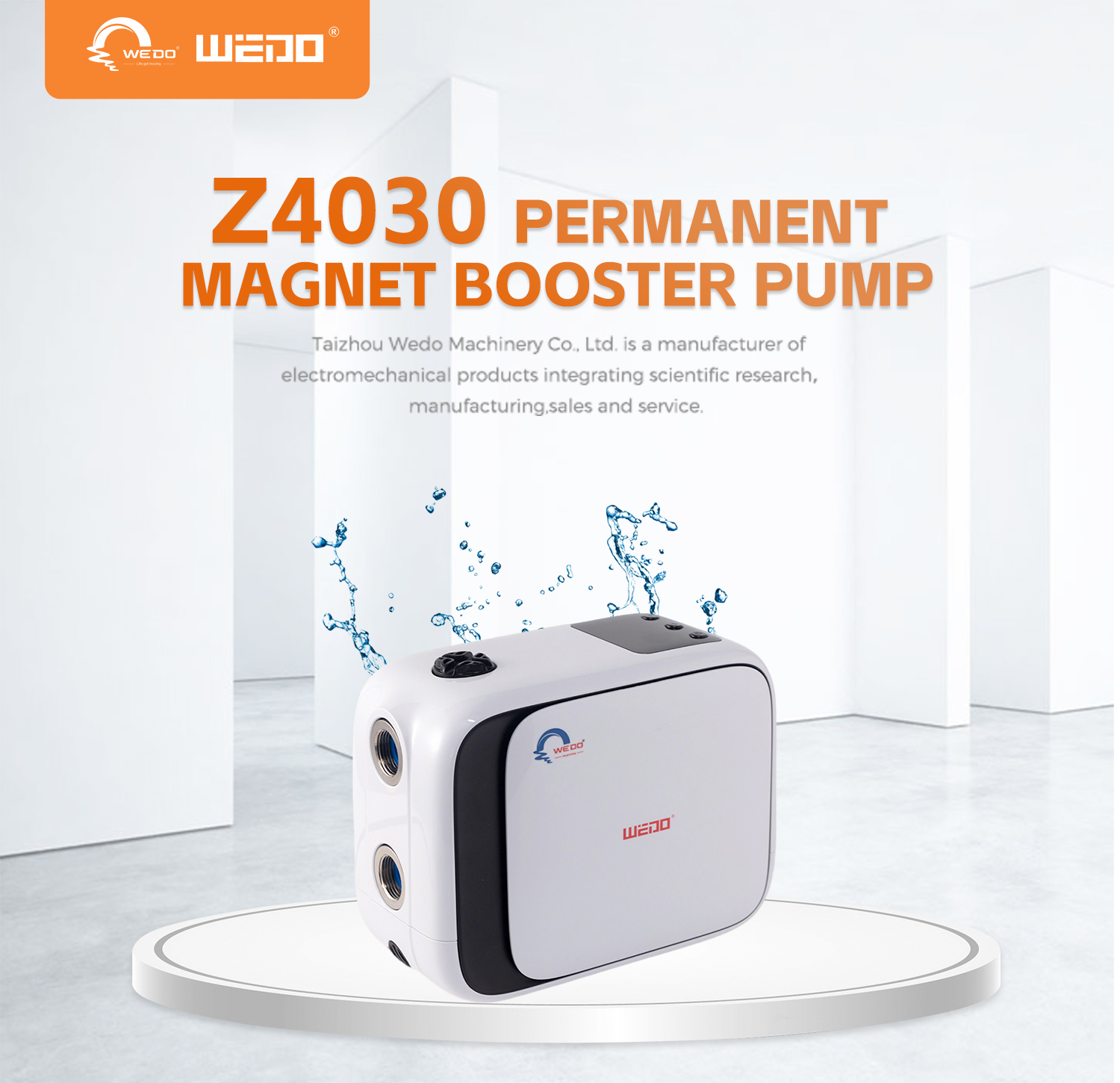

Z4030 Permanent Magnet booster Pump

Z4030
Quantity:
Contact Now
add to cart

Application scope
This series of products can be widely used in home supervisor pressurization, water tank water tower pressurization andWells, pools and other use scenarios
that require suction lift, high efficiency,low noise, no rust, and frequency conversion Features
such as constant pressure make it the perfect product for boosting the water supply of homes such as villas and flat-floor apartments.

Advantage
◆Incorporate Chinese cultural elements into the design
◆Use PM motor for constant pressure
◆Clear and convenient operation interface
◆Simple installation, ready to use

Main Feature
◆The piping size is Dn25   ◆The insulation class is F   ◆The siction lift is 8 meters
◆Noise is as low as 45 decibel   ◆The degree of protrction is IPX4
◆The medium used is clean water   ◆The maximum system pressure is 10 bar
◆The maximum medium temperature is 60degrees celsius
◆Integrated inverter controller with IPM model

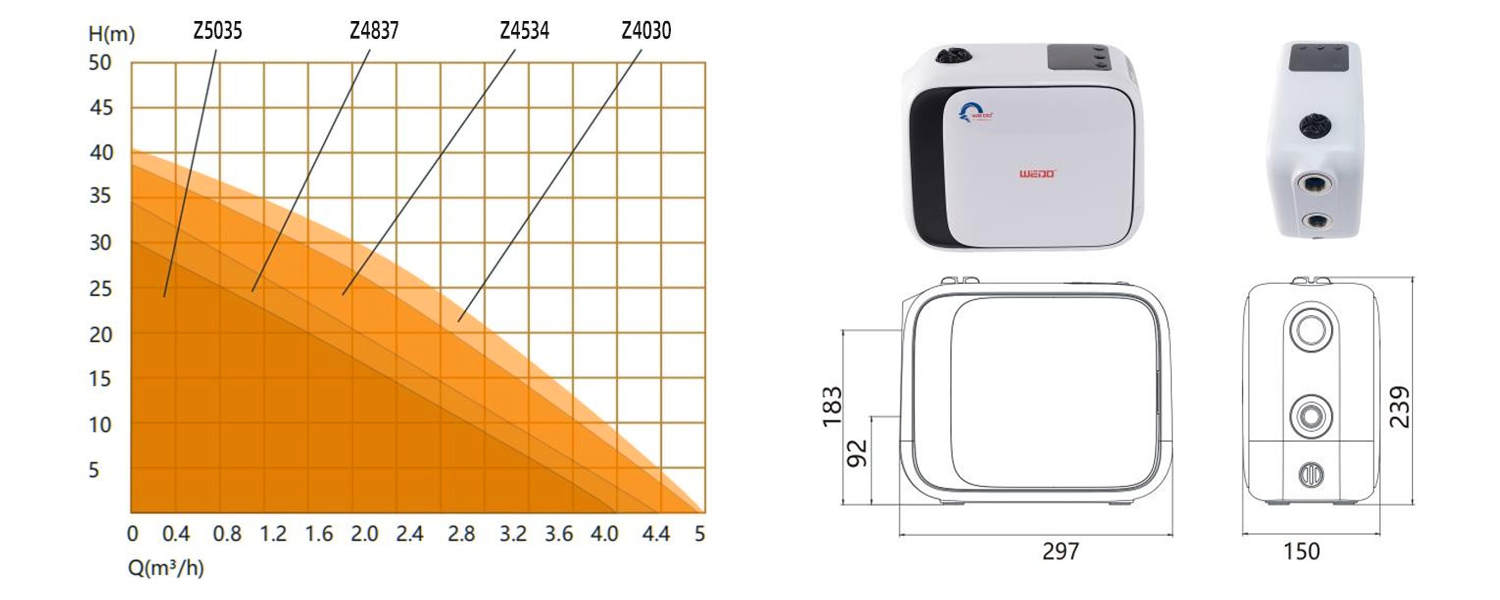

MODELMax.HeadMax.FlowRated HeadRated FlowMax.Power
Z403030M4.0M3/H20M1.5M3/H300W
Z453434M4.5M3/H20M2.0M3/H400W
Z483737M4.8M3/H30M1.5M3/H500W
Z503540M5.0M3/H30M2.0M3/H600W
