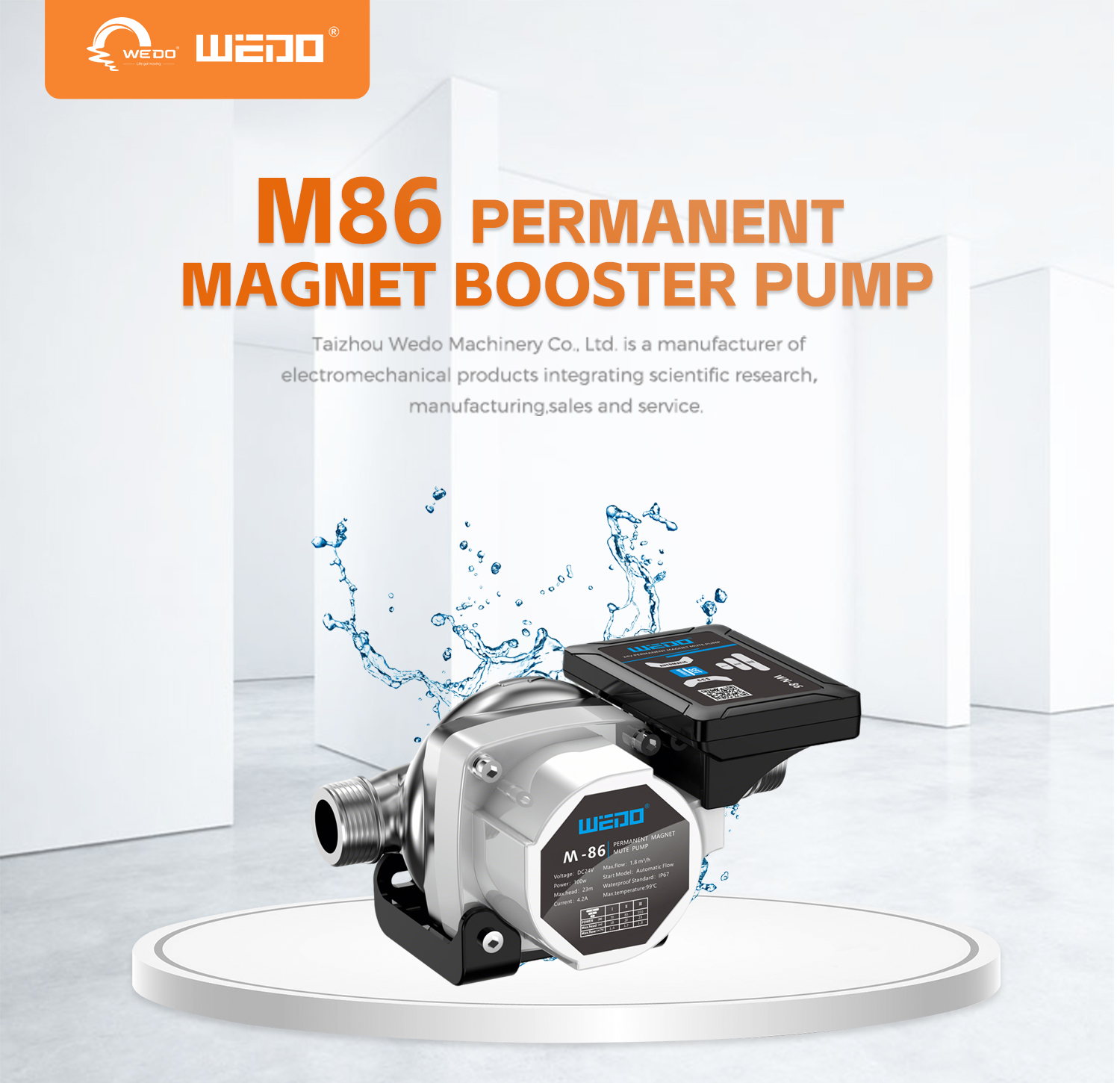

M86 Permanent Magnet Frequency Booster Pump

M86

Quantity:

Contact Now

add to cart

24V DC Intelligent Permanent Magnet Frequency Conversion Silent Booster Pump

Product overview
24V permanent magnet frequency conversion mute pump is a high-tech and high intelligent product. It has a number of independent invention patents,

uses highly integrated imported single-chip technology, and the water flow+CCS intelligent coordinated control system.

It is widely used in tap water pressurization, tower water supply pressurization, pipeline circulation pressurization,

intelligent toilet pressurization, water heater pressurization, solar energy pressurization and other scenes.

It has the advantages of energy conservation, power saving, convenient silent installation, safe and reliable voltage, etc.

Service conditions:
Power supply:AC160-240VtoDC-24V DC power adapter;
Transmission medium: clean water and other liquids similar to water;
Medium temperature:0~90C, PH value is 6.5~8.5;
The maximum system pressure is not more than 0.45MPa;
Ambient temperature:0~40ºC.

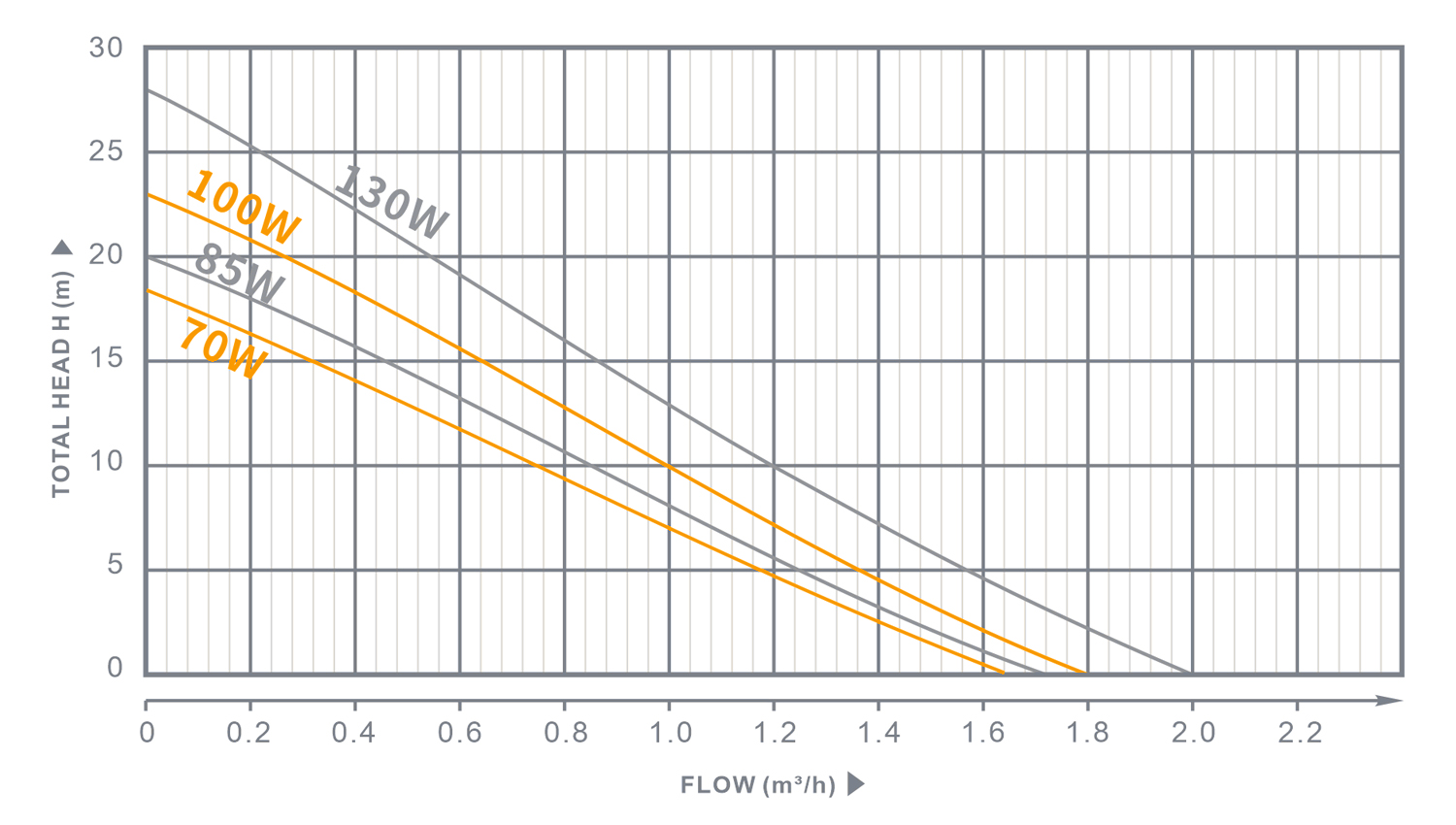

MODEL	70W		85W			100W			130W
Input Power	24V		24V			24V			24V
Ⅲ Ⅱ Ⅰ	Ⅰ	Ⅱ	Ⅰ	Ⅱ	Ⅲ	Ⅰ	Ⅱ	Ⅲ	Ⅰ	Ⅱ	Ⅲ
Max.Power(W)	50	70	55	70	85	70	85	100	130
Max.Head(M)	14	18	15	18	20	18	20	23	6	12	28
Max.Flow(M³/H)	1.4	1.6	1.5	1.6	1.7	1.6	1.7	1.8	2.0	2.0	2.0
Outlet Size	4points		6points
Pump Body Material	Stainless steel/cast iron nickel plating
