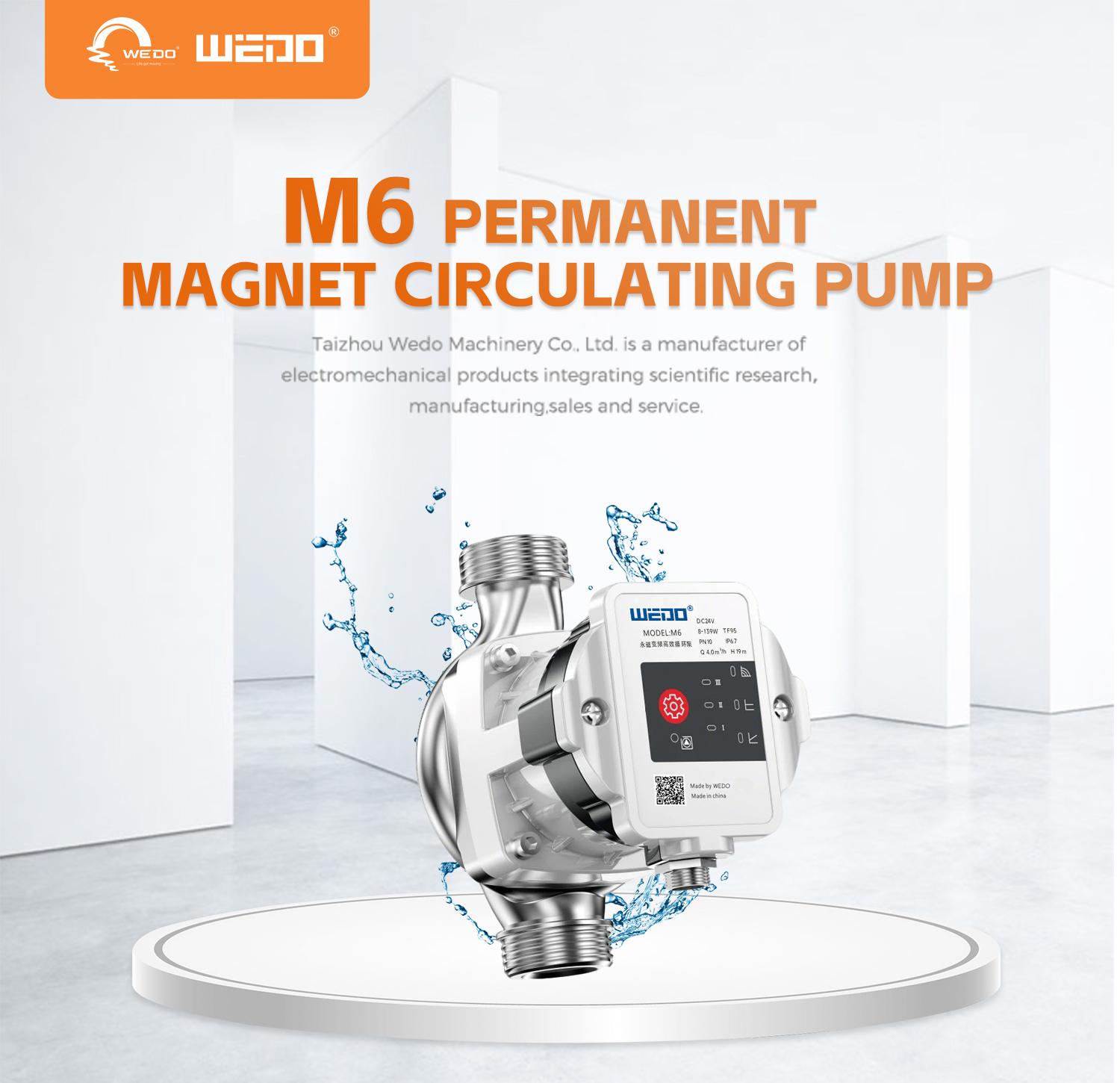

M6 Permanent Magnet circulating Pump

M6

Quantity:

Contact Now

add to cart

Product overview
24V permanent magnet frequency conversion mute pump is a high-tech and high intelligent product. It has a number of independent invention patents,

uses highly integrated imported single-chip technology, and the water flow+CCS intelligent coordinated control system.

It is widely used in tap water pressurization, tower water supply pressurization, pipeline circulation pressurization,

intelligent toilet pressurization, water heater pressurization, solar energy pressurization and other scenes.

It has the advantages of energy conservation, power saving, convenient silent installation, safe and reliable voltage, etc.

Service conditions:
Power supply:AC160-240VtoDC-24V DC power adapter;
Transmission medium: clean water and other liquids similar to water;
Medium temperature:0~90C, PH value is 6.5~8.5;
The maximum system pressure is not more than 0.45MPa;
Ambient temperature:0~40ºC.

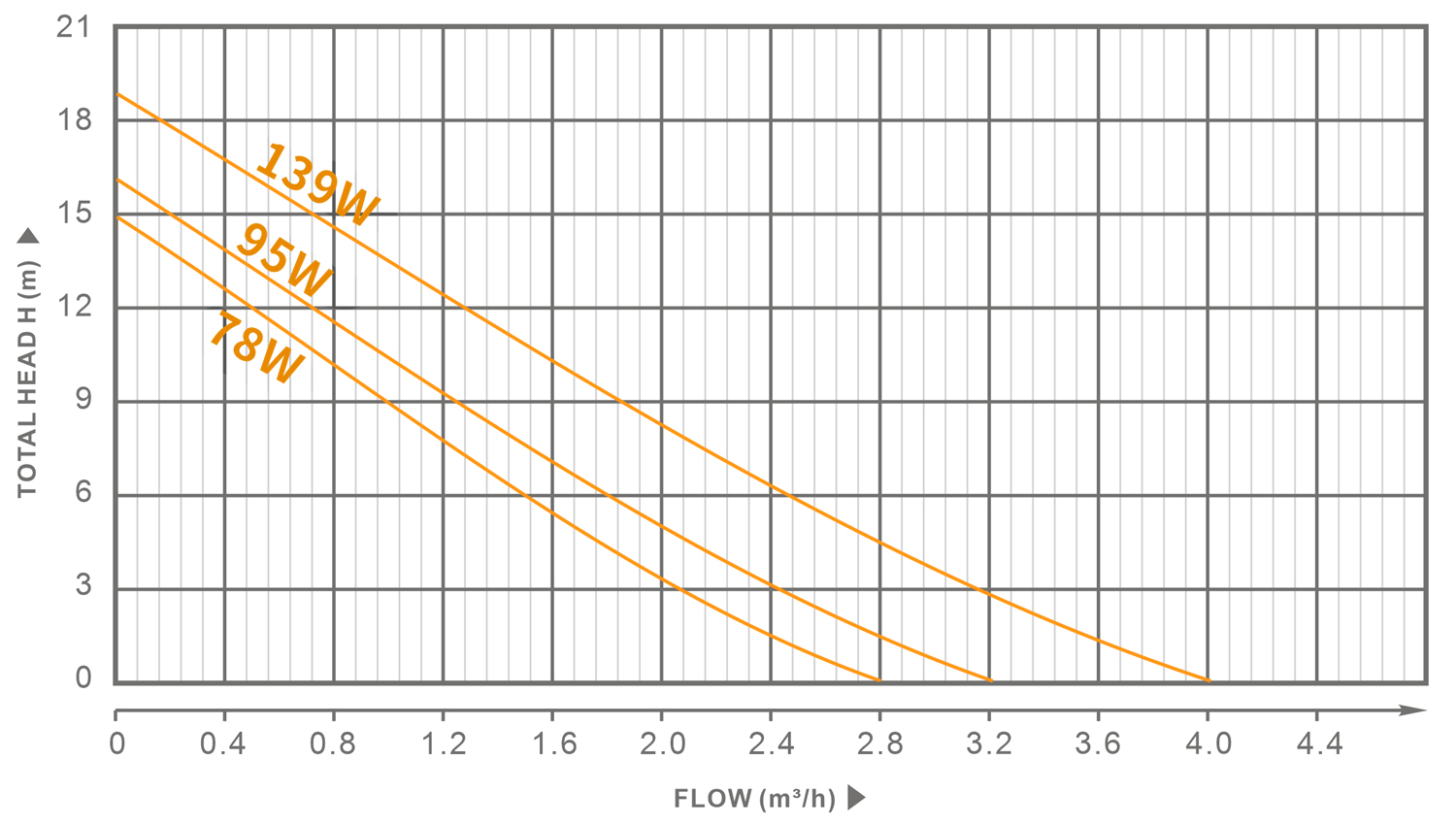

MODEL	M6-78W			M6-95W			M6-139W
Input power supply	24V			24V			24V
Ⅲ Ⅱ Ⅰ	Ⅰ	Ⅱ	Ⅲ	Ⅰ	Ⅱ	Ⅲ	Ⅰ	Ⅱ	Ⅲ
Max Power(W)	35	55	78	55	78	95	78	95	139
Max Head(M)	10	13	15	13	15	16	15	16	19
Max Flow(M³/H)	2.0	2.2	2.8	2.2	2.8	3.2	2.8	3.2	4.0
Interface Specifications	1inch，1.5inches
Pump Body Material	cast iron nickel plating/electrophoresis
