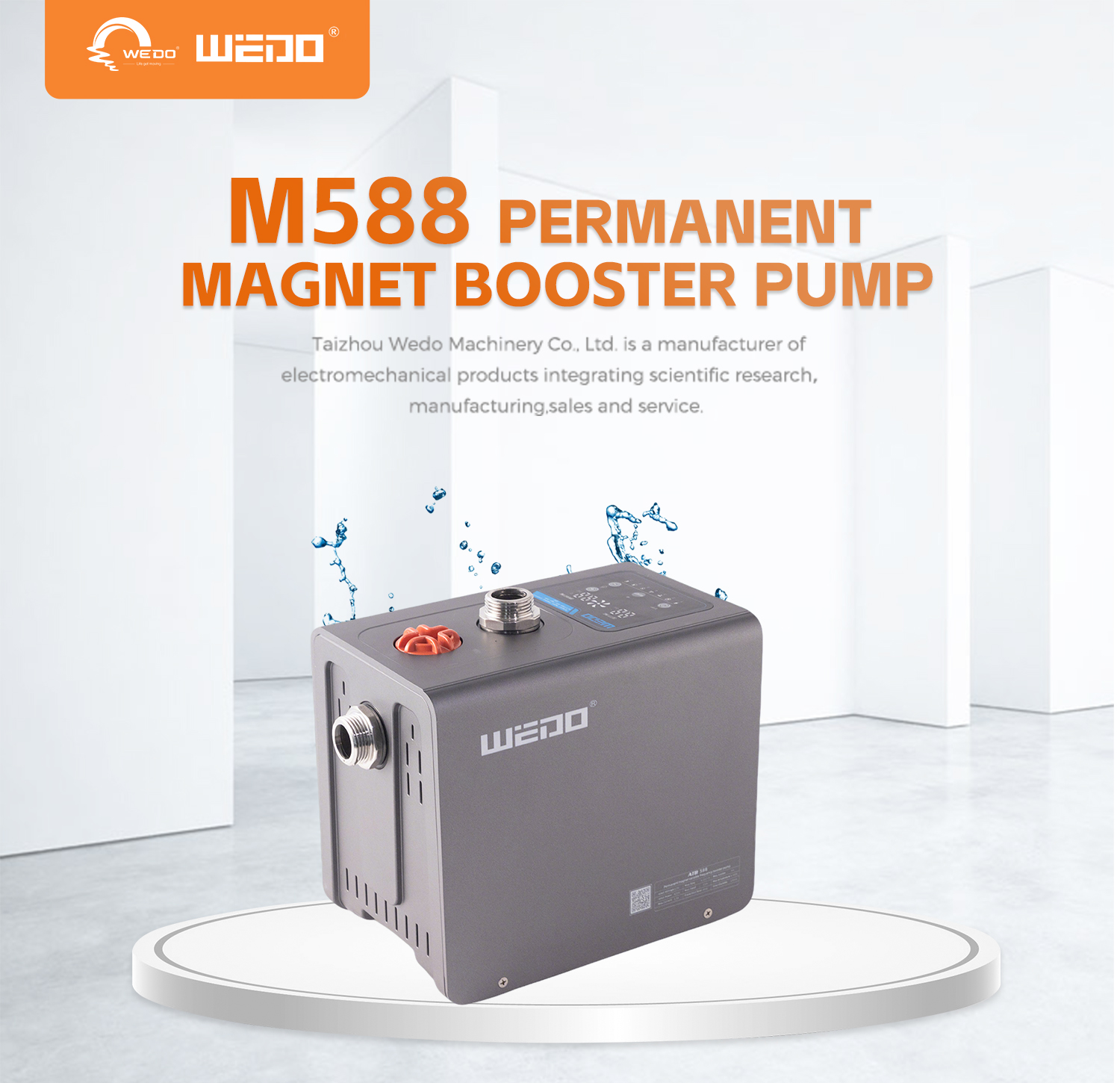

M588 Permanent Magnet booster Pump
M588
Quantity:
Product overview

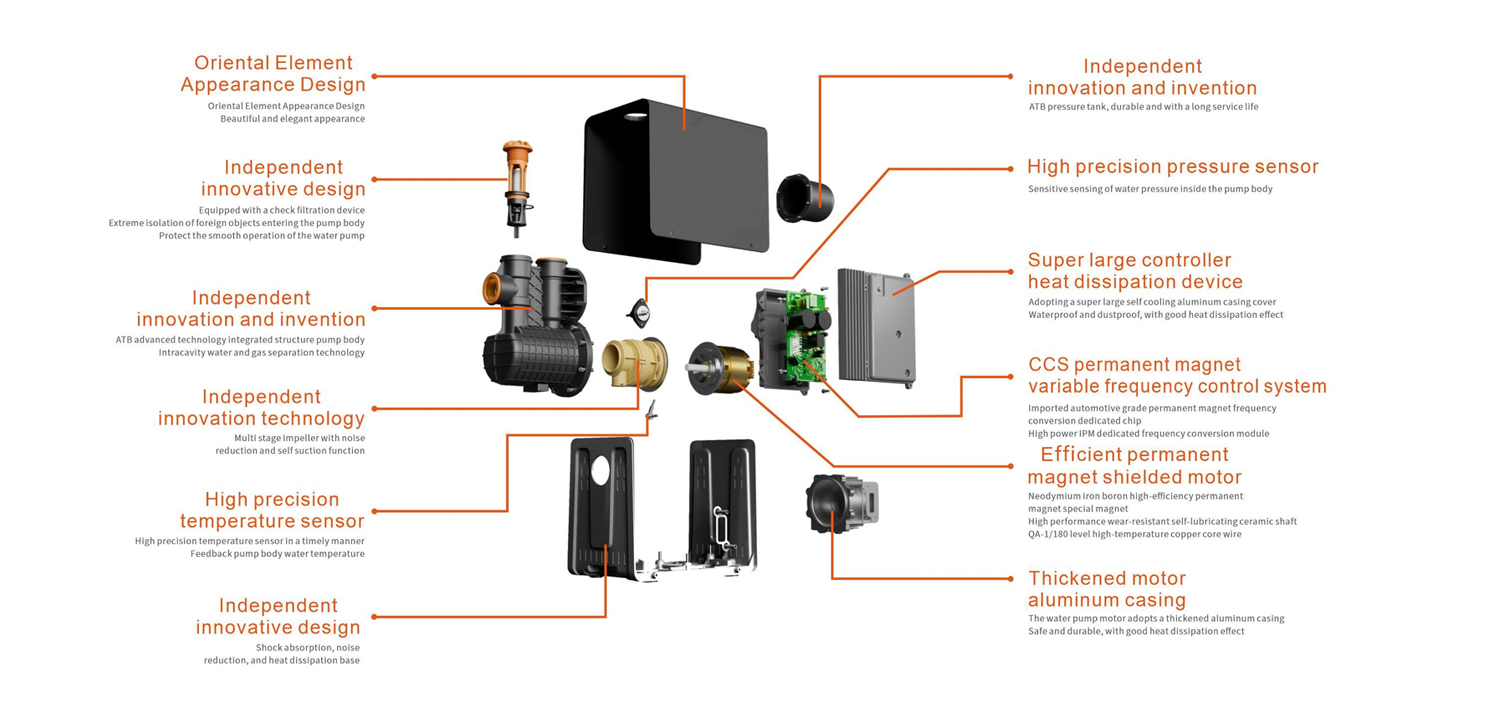

24V permanent magnet frequency conversion mute pump is a high-tech and high intelligent product. It has a number of independent invention patents,
uses highly integrated imported single-chip technology, and the water flow+CCS intelligent coordinated control system.

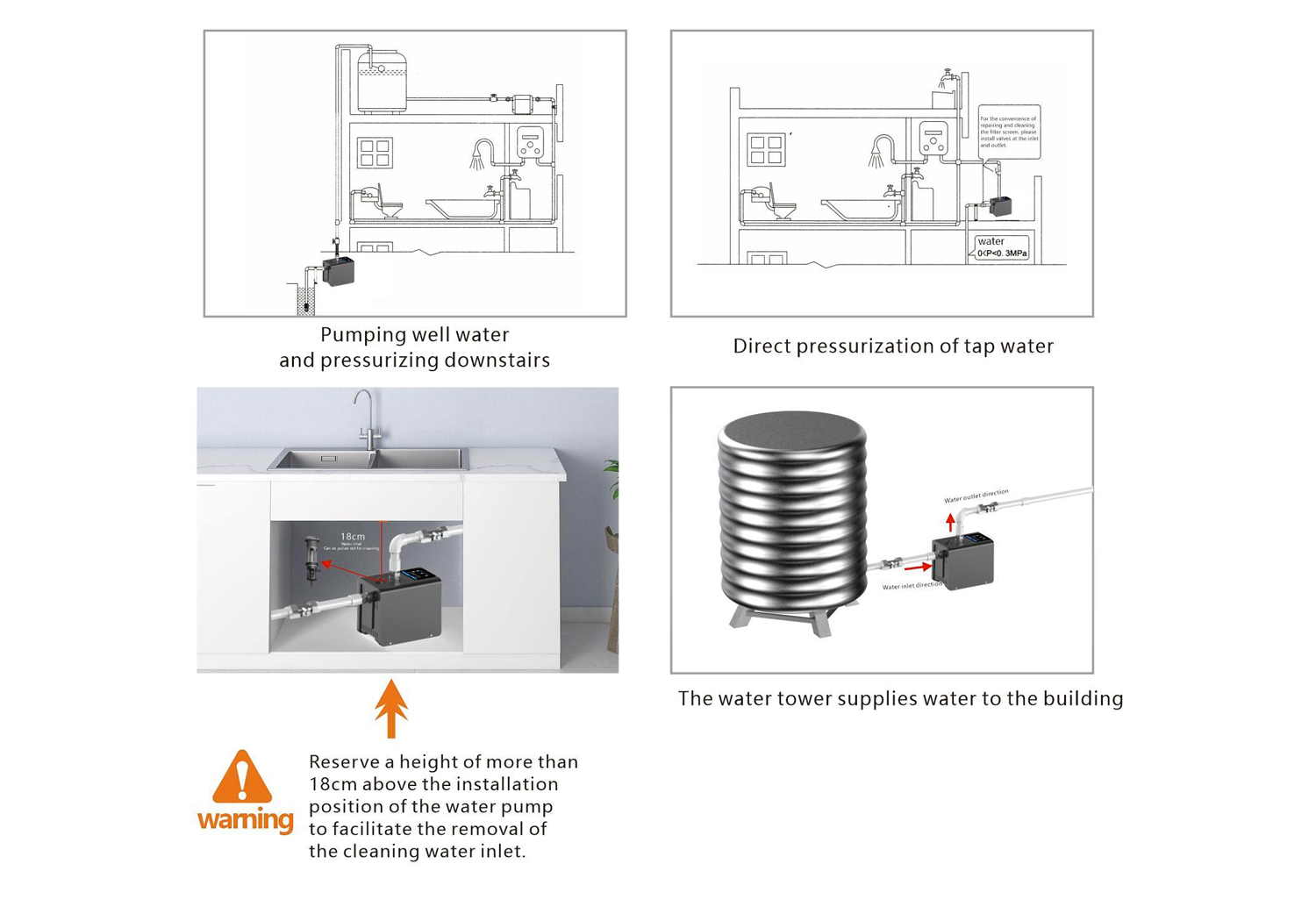

It is widely used in tap water pressurization, tower water supply pressurization, pipeline circulation pressurization,
intelligent toilet pressurization, water heater pressurization, solar energy pressurization and other scenes.
It has the advantages of energy conservation, power saving, convenient silent installation, safe and reliable voltage, etc.
Service conditions:
Power supply:AC160-240VtoDC-24V DC power adapter;
Transmission medium: clean water and other liquids similar to water;
Medium temperature:0~90C, PH value is 6.5~8.5;
The maximum system pressure is not more than 0.45MPa;
Ambient temperature:0~40ºC.
Service conditions:
Power supply:AC160-240VtoDC-24V DC power adapter;
Transmission medium: clean water and other liquids similar to water;
Medium temperature:0~90C, PH value is 6.5~8.5;
The maximum system pressure is not more than 0.45MPa;
Ambient temperature:0~40ºC.

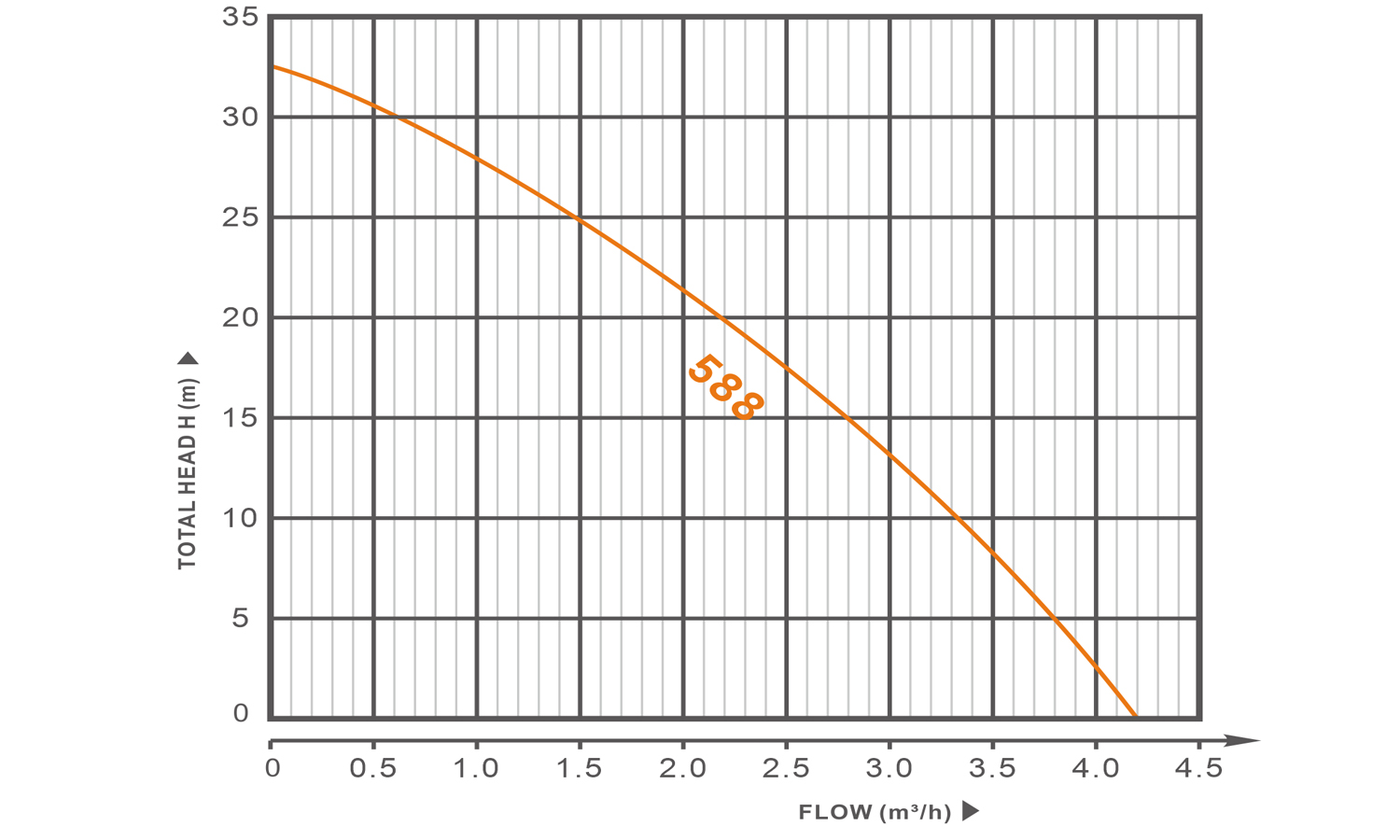

| MODEL | Max.Flow (M3/H) | Max.Head (M) | Rated Power (W) | Rated Voltage (V) | Max.Current (A) | Max.Suction (M) | Diameter (MM) | Temperature (ºC) | Protect Grade |
| M588 | 4.2 | 33 | 420 | 220 | 3.8 | 5 | 25 | 0-95 | IP54 |
